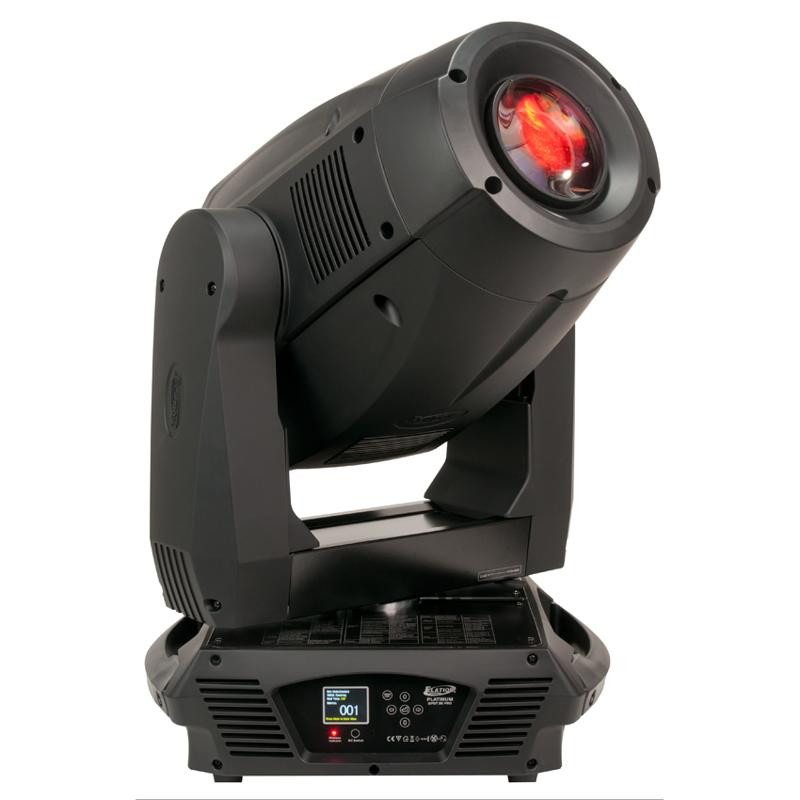

Elation Platinum Spot 35 Pro Moving Head with 800W Lamp

elation platinumspot35pro
elation platinumspot35pro Elation Platinum Spot 35 Pro Moving Head with 800W Lamp Elation Platinum Spot 35 Pro Moving Head with 800W Lamp
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Unavailable This item has been discontinued or is no longer available.
In Stock It may be available on Amazon
In Stock Free shipping on most orders over $35
Buy on Amazon
The new Platinum Spot 35 PRO features the MSR Platinum 35, 800-watt lamp from Phillips', 16-bit resolution on all motor functions, 2 gobo wheels with a total of 12 interchangeable glass rotating / indexing gobos, variable CMY & CTO color mixing, a static dichroic color wheel with 8 interchangeable colors (including UV), 3 facet rotating / indexing prism, frost filter, motorized focus / zoom system with an 8 to 50 range, rotating / indexing animation wheel effect, pan/tilt lock, built-in EWDMX wireless DMX receiver, 3 & 5pin DMX connections, full color 180 reversible menu display with 6 button touch control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v).



FEATURES
• 540/630 Pan
• 245 Tilt
• Pan/Tilt Lock
• 8 / 16 Bit Resolution Adjustable Movement
• Motorized Focus
• 7 Auto Program Macros

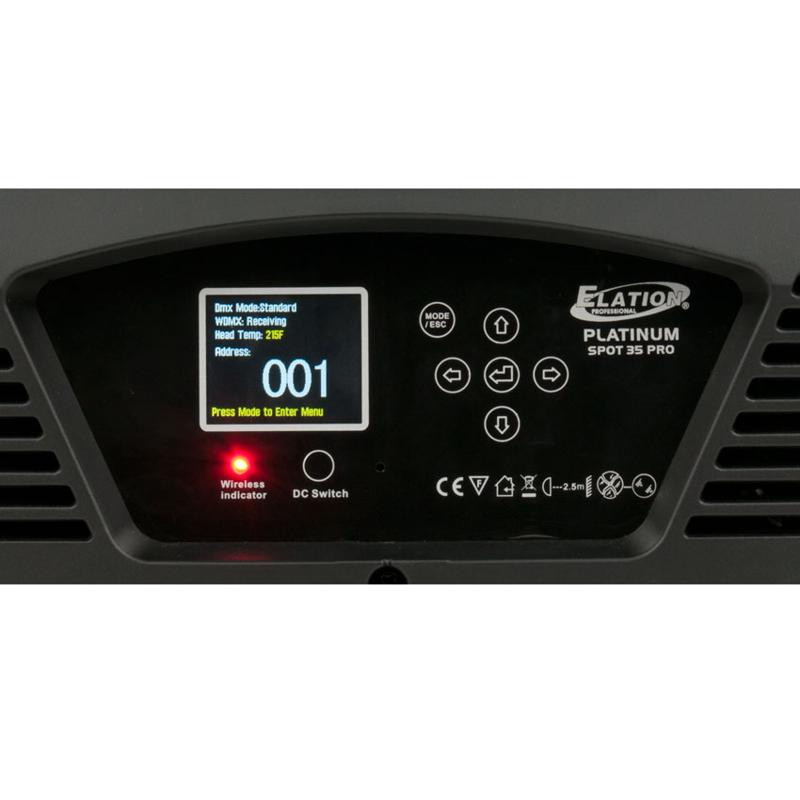

• 6 Button Touch Control Panel
• Full Color 180 Reversible Menu Display
• EWDMX Wireless DMX Receiver
• Microphone for Sound Activated Programs
• Rechargeable Backup Battery for Menu Display
• Stand Alone Operation with Master/Slave Function
• Software Upload via Optional External DMX Accessary

LAMP
• Philips 800-Watt MSR PLATINUM 35
• 55,000 Lumen, 7,800k, >75 CRI, 750 Hour Average Life

PHOTOMETRICS
• Max 76,880 LUX @5M 8 Min Zoom
• Max 2,725 LUX @5M 50 Max Zoom

EFFECTS
• Frost Filter
• Animation Wheel Effect
• Motorized Iris: 5% - 100%
• Two Direction Rainbow Effect
• Mechanical Dimming: 0% - 100%
• High Speed Mechanical Shutter / Strobe
• 3 Facet Rotating Prisms with 16 Prism Macros

COLOR
• Variable CMY & CTO
• 8 Static Dichroic Colors Including UV + White (Open)

GOBOS
• 2 Gobo Wheels With 12 Total Interchangeable Glass Rotating / Indexing Gobos
• Size: OD 29mm / ID 24mm

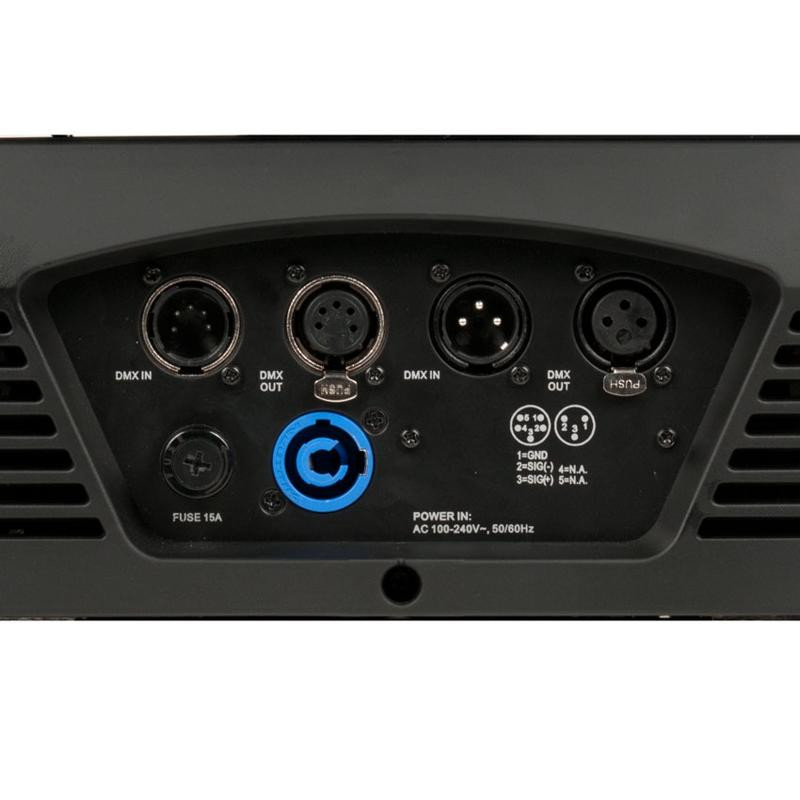

CONTROL / CONNECTIONS
• 3 DMX Channel Modes (27 / 29 / 41)
• 3pin & 5pin DMX In/Out
• powerCON Power In

SIZE / WEIGHT
• Length: 19.9" (506.5mm)
• Width: 17.6" (447.3mm)
• Vertical Height: 28.6" (726.5mm)
• Weight: 79 lbs. (36kg)

ELECTRICAL / THERMAL
• AC 100-240V - 50/60Hz
• 1200W Max Power Consumption
• -13F to 113F (-25C to 45C)

APPROVALS / RATINGS
• CE Approved
• cETLus Approved
• IP20 Rated

Additional Information

UPC837874016024
SKUPLATINUMSPOT35PRO
ManufacturerElation Professional
Price$6,999.99
Product ConditionNew - On Clearance
