Elation Platinum Spot LED Pro II 170W 6,500K LED

elation platinumspotledproii
elation platinumspotledproii Elation Platinum Spot LED Pro II 170W 6,500K LED Elation Platinum Spot LED Pro II 170W 6,500K LED
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Dropships Currently Out of Stock at Planet DJ
In Stock May Be Available on Amazon
In Stock Free Shipping On Most Orders Over $35
Buy on Amazon

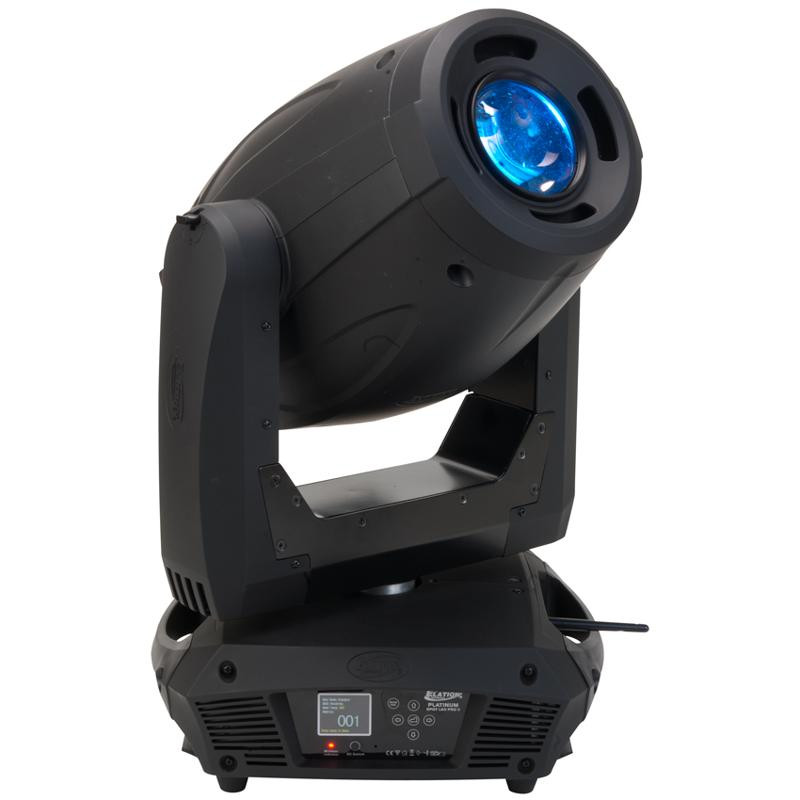

The Platinum Spot LED PRO II' features an extremely bright 170W Cool White LED engine, 15 to 33 motorized zoom, 7 dichroic colors plus white, 7 rotating, interchangeable, glass and 7 static metal gobos, frost filter hybrid wash effect, 3-facet rotating prism with 16 prism macros, motorized iris, focus, and dimming, high speed mechanical shutter and strobe, hibernation mode, 3 and 5pin DMX in/out connections, internal wireless DMX receiver, RDM (Remote Device Management), full color 180 reversible menu display with 6 button touch control panel, battery backup for display power, a multi-voltage universal auto switching power supply (100-240v), and flicker free operation for TV and FILM.

FEATURES
Extremely Bright Cool White LED Spot Illuminare
Low Heat, Quiet Operation, and Hibernation Mode
15 - 33 Motorized Zoom
Frost Filter Hybrid Wash Effect
Internal EWDMX Wireless DMX Receiver
Flicker Free Operation For Broadcast TV and FILM

SOURCE
170W Cool White LED Engine
60,000 Hour Average LED Life

PHOTOMETRIC DATA
6,500K, >85CRI
12,200 LUX 1,113 FC @8.2' (2.5m) (15Min Zoom Full ON)
3,110 LUX 289 FC @8.2' (2.5m) (33 Max Full ON)

EFFECTS
Frost Filter Hybrid Wash Effect
3-Facet Rotating Prism and Prism Macros
Motorized Focus and Dimming 0% - 100%
Iris: 5% - 100%
Strobe: 1-18fps

COLOR
7 Dichroic Colors + White (Open)

GOBOS
7 Interchangeable / Rotating / Indexing Gobos
Gobo Size: OD 1.06" (27mm) / ID 0.86" (22mm)
7 Static / Indexing Gobos

CONTROL / CONNECTIONS
(3) DMX Channel Modes (17 / 15 / 22)
RDM (Remote Device Management)

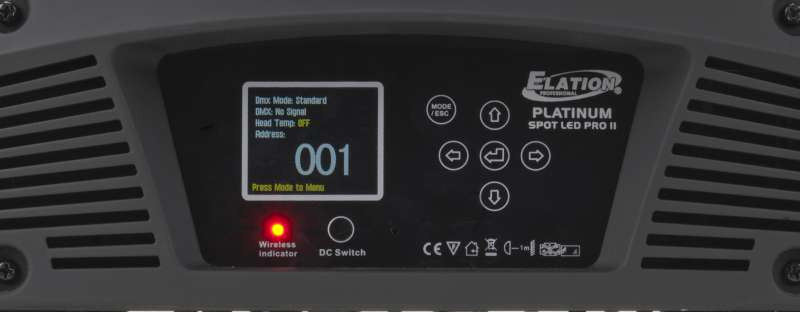

6 Button Touch Control Panel
Full Color 180 Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
Internal EWDMX Wireless DMX Receiver

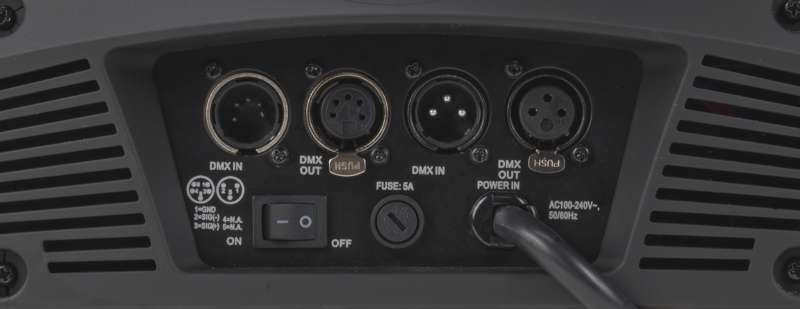

3pin & 5pin DMX In/Out

SIZE / WEIGHT
Length: 15.1" (384mm)
Width: 14.8" (375mm)
Vertical Height: 23.7" (601mm)
Weight: 46.3 lbs. (21 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
290W Max Power Consumption
-13F to 113F (-25C to 45C)

APPROVALS / RATINGS
CE Approved
cETLus Approved
RoHs Compliant
IP20 Rated

INSTALLATION
Rigging: Clamps (Not Included)
Working Position: Flat Surface / Inverted (180)

INCLUDED ITEMS
Omega Brackets
3pin DMX Cable
Safety Cable

Additional Information

UPC837874016109
SKUPLATINUMSPOTLEDPROII
ManufacturerElation Professional
Price$2,499.99
Product ConditionNew
