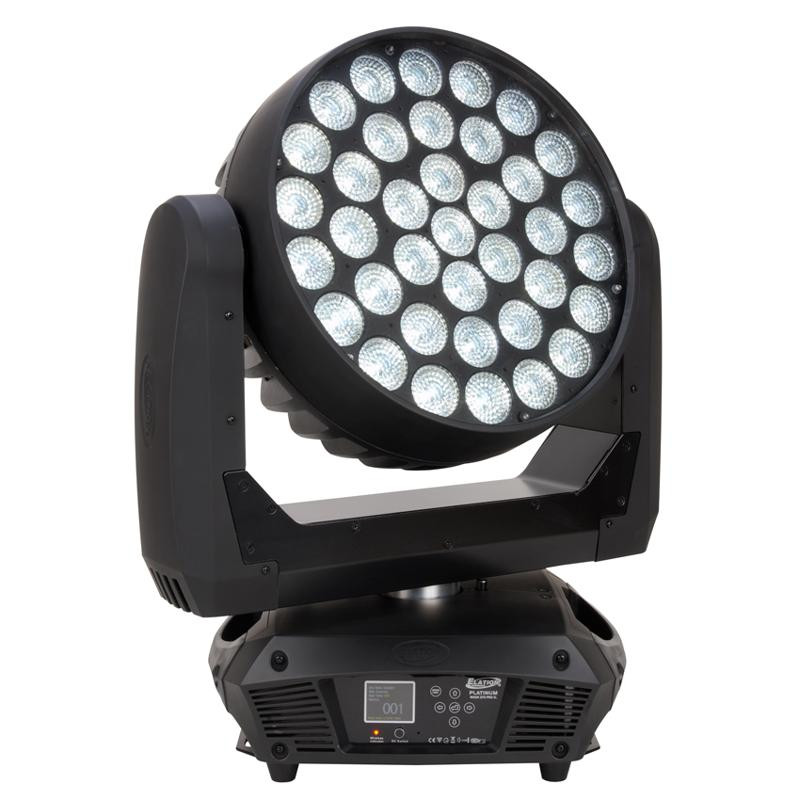

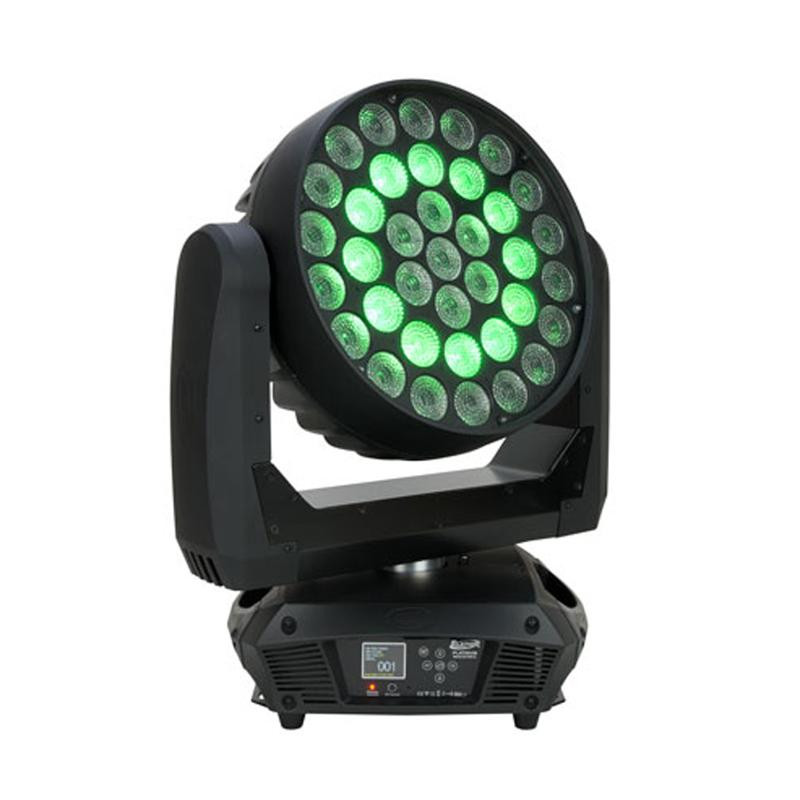

The Platinum Wash ZFX PRO XL' features (37) 15W OSRAM HO RGBW LEDs producing comparable output of a 1200W wash fixture, motorized zoom (15 - 28), variable color temperature (2700K - 8000K), multiple zone and individual pixel control, built-in EWDMX receiver, electronic strobe (1-13 fps) and dimming (0-100%0, flicker free operation for TV and FILM, 3 and 5pin in/out DMX and powerCON in connections, (6) button touch control panel, 700W max power consumption, and a multi-voltage universal auto switching power supply (120-240v).
FEATURES
Comparable Output of 1200W Wash Fixture
Quad Color RGBW Mixing
Motorized 15 - 28 Zoom
Variable Color Temperature (2700K - 8000K)
Multiple Zone and Individual Pixel Control
EWDMX Internal Wireless DMX Receiver
Flicker Free Operation for TV and FILM
SOURCE
(37) 15W OSRAM HO RGBW LEDs
100,000 Hour Average Life
PHOTOMETRIC DATA
8,160 LUX 758 FC @4M 15 Beam Full ON
3,157 LUX 293 FC @4M 15 Beam WHITE LEDs Full ON
5,260 LUX 489 FC @4M 28 Beam Full ON
1,620 LUX 150 FC @4M 28 Beam WHITE LEDs Full ON
EFFECTS
Variable Strobe Settings (1-13fps)
Electronic Dimming (0% - 100%)
Chase Zone and Individual Pixel Macros
COLOR
Quad Color RGBW
CONTROL / CONNECTIONS
(3) DMX Channel Modes (19 / 30 / 160)
Pan Movement: 630 / Tilt Movement: 265

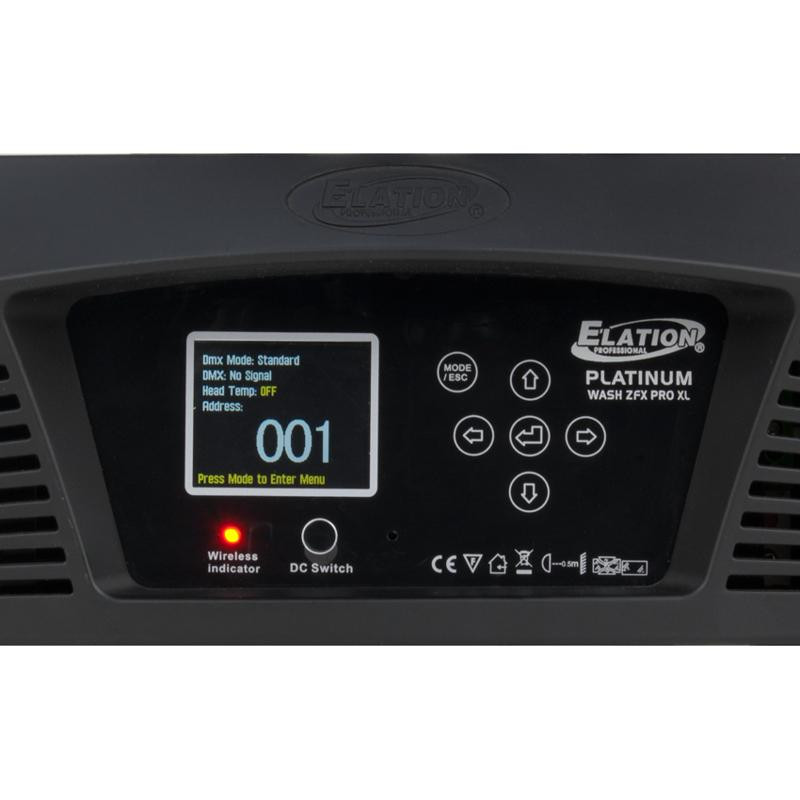

6 Button Control Panel
Full Color 180 Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement

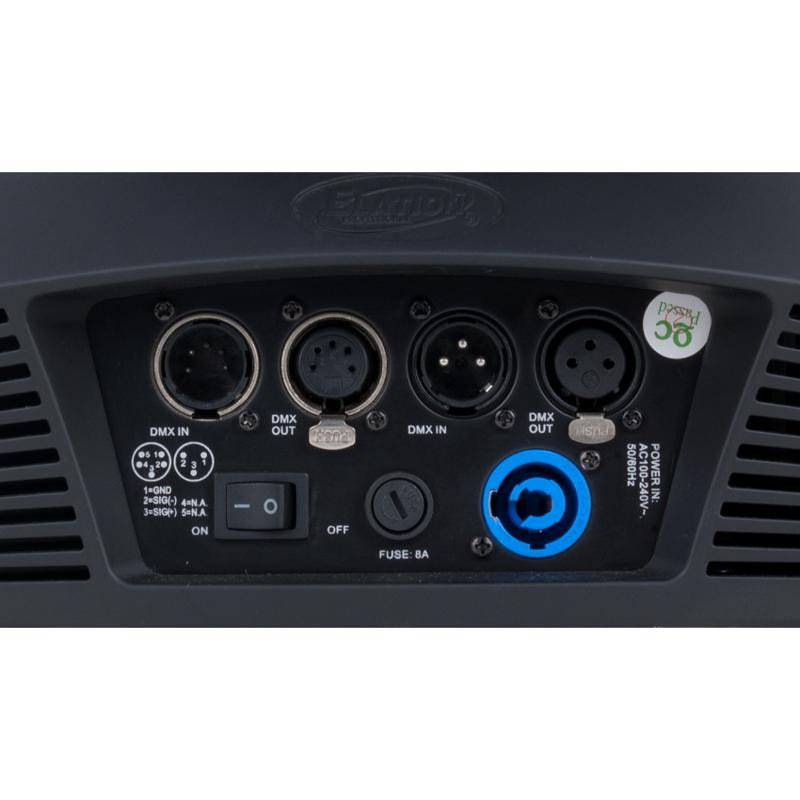

3pin & 5pin DMX In/Out
powerCON In
SIZE / WEIGHT
Length: 19.4" (493mm)
Width: 13.2" (335mm)
Vertical Height: 23.4" (594mm)
Weight: 54.0 lbs. (24.5kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
700W Max Power Consumption
113F (45C) Max Ambient Temp
APPROVALS / RATINGS
CE Approved
cETLus Approved
IP20 Rated
INSTALLATION
Rigging: Omega Brackets
Working Position: Flat Surface / Inverted (180)
INCLUDED ITEMS
(2) Omega Brackets
(1) 3pin XLR Cable
(1) Safety Cable
