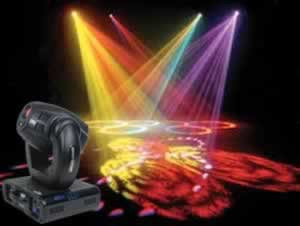

Elation Power Spot 575IE

elation powerspot575ie
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Unavailable Discontinued or no longer available.
Sorry, this item is discontinued or no longer available from us. We've left this page up for reference only. Check out some of the other great alternatives on this page or click below to see if it can still be found elsewhere.
Buy on Amazon
The Power Spot 575IE', has been designed toperform reliably for years when the guidelines in this booklet are followed. Please read andunderstand the instructions in this manual carefully and thoroughly before attempting to operatethis unit. These instructions contain important information regarding safety during use andmaintenance.

CONTROL FEATURES• USITT DMX-512 (16-bit resolution)• 16 DMX channels• 4 Digit Blue L.E.D. Display• 3 pin XLR serial input/outputSPECIAL DMX-CONTROL FEATURES• 16 pan/tilt pre programed movements via DMX• Built-in Programs via DMX• Pan/Tilt/Gobo/Color & Prism set to Sound Active mode via DMXSTAND-ALONE FEATURES• Sound activated built in programs• Sensitivity knob• Linkable up to 16 units• Self Test & Stand Alone settings• Built in Microphone with sensitivity knob.OPTICAL SYSTEM• Remote Focus via DMX• High Output Luminous-Efficiency parabolic mirror• Glass Dichroic reflector• 15 Beam Angle (Optional 18 lens)• Lamp: Osram HTI575/DE (575W, 5600K, 500hrs)FOCUS• Motor driven focus from near to far• Remote Focus via DMXCOLOR• 11 Dichroic Colors + White + UV• Split Colors• Continuous Color ScrollGOBOS• 16 Gobos on 2 wheels• Convenient Slot-Lock gobo replacement system• Gobo Shake Effect• Continuous Gobo Scroll• Wheel 1: 7 interchangeably Rotating/Indexing Gobos, 3 Lithographic, 1 Glass, 3 Metal• Wheel 2: 9 interchangeably Static Metal gobos• Gobo Size Wheel 1: 26.9mm x 23mm viewing x 4mm thickness• Gobo Size wheel 2: 26.9mm x 23mm viewing metal onlySHUTTER/DIMMER• Mechanical Dimming 0-100%• Mechanical High Speed shutter & Pulse EffectPAN/TILT• Fine Pan & Tilt (16 bit resolution)• Automatic Pan / Tilt position correction• Maximum Pan movement 540 in 2.0s / 16 bit• Maximum Tilt movement 280 in 1.1 s / 16 bitEFFECTS• 4.9 mW Red Laser with pulse effect• 3 facet prism rotating in both directions at variable speeds• Gobo Overlaying• Iris (POWER SPOT-575IE)RIGGING• 2 x 1/4 turn fastener brackets• 1 x Safety cable holeDIMENSIONS & WEIGHT• 26"L x 12"W x10"H• 42 lbs (POWER SPOT-575IE)POWER SUPPLY• Fuse: 10A• Electronic Ballast• Voltage: 90-240V 50-60Hz• Power Consumption: 700VA

Additional Information

ManufacturerElation Professional
Product ConditionNew - On Clearance
