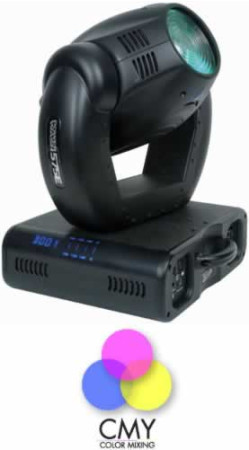

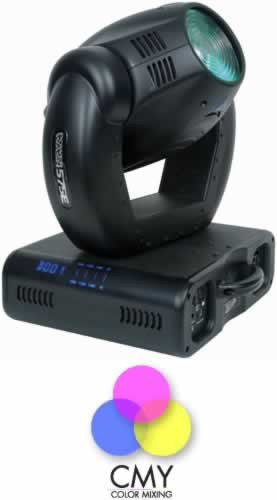

The Power Wash 575E',has been designed to perform reliably for years when the guidelines in this booklet arefollowed. Please read and understand the instructions in this manual carefully andthoroughly before attempting to operate this unit. These instructions containimportant information regarding safety during use and maintenance.
CONTROL FEATURES • USITT DMX-512 (16-bit resolution)• 15 DMX channels• 4 Digit Blue L.E.D. Display• 3 pin XLR serial input/output
SPECIAL DMX-CONTROL FEATURES • 16 pan/tilt pre programed movements via DMX• Built-in Programs via DMX• Pan/Tilt/Gobo/Color & Prism set to Sound Active mode via DMX
STAND-ALONE FEATURES • Sound activated built in programs• Sensitivity knob• Linkable up to 16 units• Self Test & Stand Alone settings• Built in Microphone with sensitivity knob
OPTICAL SYSTEM • High Output Luminous-Efficiency parabolic mirror• Glass Dichroic reflector• 8 - 22 Motorized zoom• 150mm Fresnel Lens• Lamp: Osram HTI575/DE (575W, 5600K, 500hrs)
COLOR • CMY Gradual Color Mixing• 9 Dichroic Colors + White + UV• Continuous Color Scroll
SHUTTER/DIMMER • Mechanical Dimming 0-100%• Mechanical High Speed shutter & Pulse Effect
PAN/TILT • Fine Pan & Tilt (16 bit resolution)• Automatic Pan / Tilt position correction• Maximum Pan movement 540 in 2.0s / 16 bit• Maximum Tilt movement 280 in 1.1s / 16 bit
EFFECTS • 180 Beam Shaper• Frost Filter
RIGGING • 2 x 1/4 turn fastener brackets• 2 x Wing Mounting plates• 1 x Safety cable hole
DIMENSIONS & WEIGHT • 26"L x 12"W x 10"H• 42 lbs (Power Wash 575 E)
POWER SUPPLY • Fuse: 10A• Electronic Ballast• Voltage: 90-240V 50-60Hz• Power Consumption: 700VA
