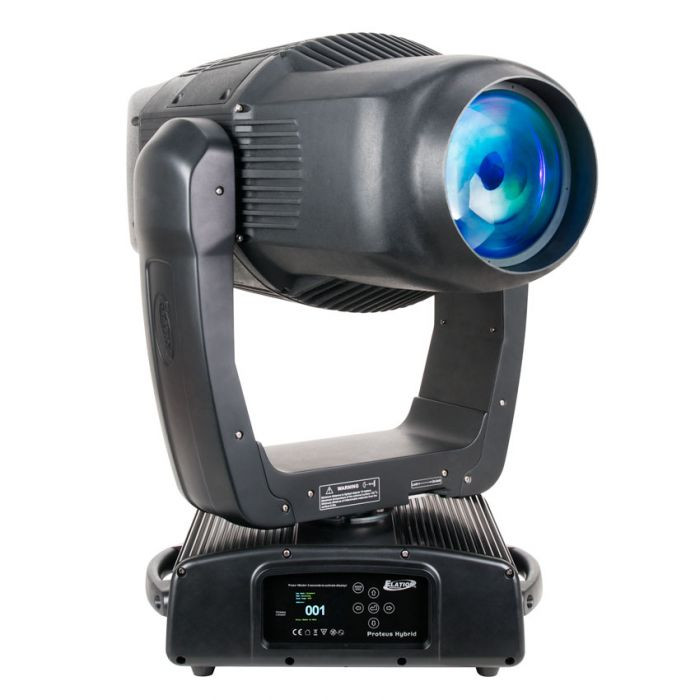

PROTEUS HYBRID is an IP65 rated 3-in-1 hybrid moving head beam, spot, and wash luminaire with the Philips' MSD Platinum 21R 470W 80 CRI 8,000K lamp producing over 23,000 lumens. Features include an advanced optical system with motorized zoom from 2 in beam mode to 38 in spot mode or 40 in wash mode, an advanced internal thermal cooling system, full CMY and linear CTO color mixing, 14 dichroic colors including CTB, CTO, and UV, 8 rotating glass interchangeable and 14 static-stamped metal gobos, full 360 bi-directional animation wheel, 8-facet and linear rotating prisms and frost filter, motorized focus and auto-focus, high speed mechanical shutter and strobe, DMX, RDM (Remote Device Management), Art-NET, and sACN protocol support, Elation's E-FLY' internal wireless DMX transceiver, IP rated 5pin XLR and RJ45 etherCON in/out connections, powerCON TRUE1 power in, full color 180 reversible menu display with 6 button touch control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v).
VIDEO
Features • IP65 Rated 3-in-1 Hybrid Beam, Spot, Wash Luminaire
• Philips' MSD 21R 470W 80CRI 8,000K Lamp and Advanced Optics
• Motorized Zoom, Beam and Spot Modes
• Advanced Internal Thermal Cooling System
• Full CMY Color Mixing and Linear CTO Color Correction
• 14 Dichroic Colors Including CTB, CTO, and UV
• 8 Rotating Interchangeable and 14 Static-Stamped Metal Gobos
• Full 360 Bi-Directional Animation Wheel
• Rotating 8-Facet and Linear Prisms and Frost Filter
• Motorized Focus and Auto-Focus
• High Speed Mechanical Shutter and Strobe
• DMX, RDM, Art-NET, and sACN Protocol Support
• Elation's E-FLY' Internal Wireless DMX Transceiver
Specifications
SOURCE
Philips MSD 21R 470W 8,000K Lamp
1,000 Hour Average LAMP Life*
*LAMP Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
80CRI | >23,000 Lumens
13,375 LUX 1,243 FC @49.2' (15m) (3.0 Spot)
233,000 LUX 21,646 FC @49.2' (15m) (2.0 Beam)
11,500 LUX 1,068 FC @16.4' (15m) (4.0 Wash)
EFFECTS
Full 360 Bi-Directional Animation Wheel
Rotating Prisms and Prism Macros
Frost Filter Hybrid Wash Effect
Motorized Focus and Auto-Focus
High Speed Mechanical Shutter and Strobe
COLOR
14 Dichroic Colors Including CTB, CTO, and UV
Full CMY Color Mixing and Linear CTO Color Correction
GOBOS
8 Interchangeable Rotating / Indexing Glass Gobos
14 Static-Stamped Metal Gobos
CONTROL / CONNECTIONS
(3) DMX Channel Modes (24 / 26 / 37)
6 Button Touch Control Panel
Full Color 180 Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
DMX, RDM, Art-NET, and sACN Protocol Support
Elation's E-FLY' Internal Wireless DMX Transceiver
IP65 5pin DMX In/Out
IP65 RJ45 etherCON In/Out
IP65 powerCON TRUE1 Power In
SIZE / WEIGHT
Length: 17.5" (445mm)
Width: 22.5" (572mm)
Vertical Height: 31.5" (800mm)
Weight: 84.0 lbs. (38 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
700W Max Power Consumption
14F to 113F (-10C to 45C)
APPROVALS / RATINGS
CE | cETLus | IP65
