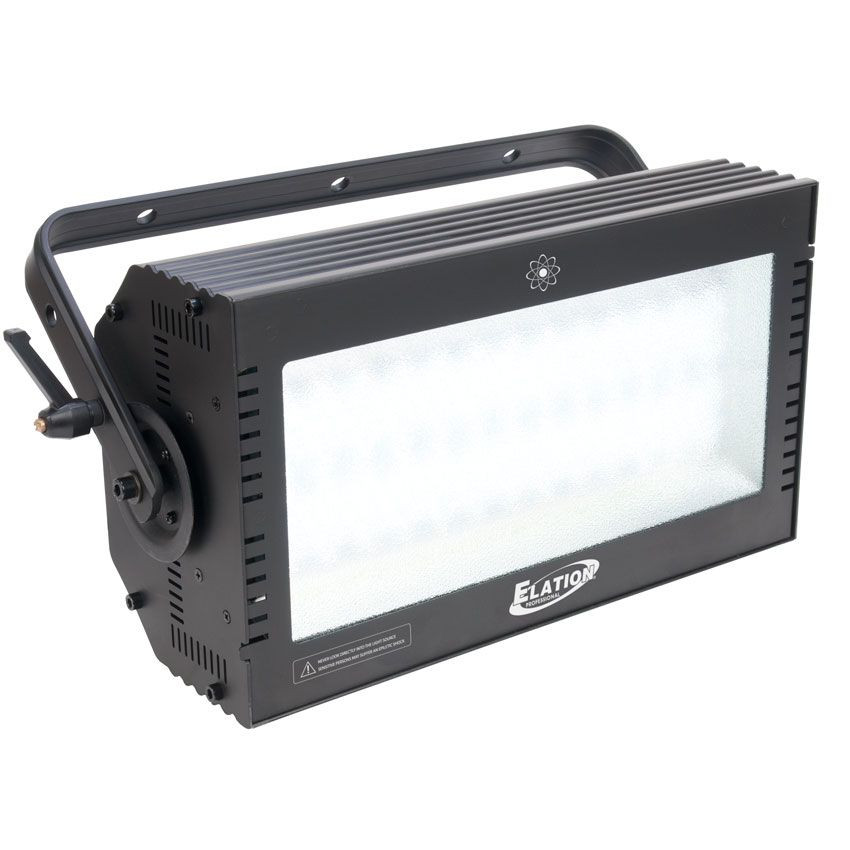

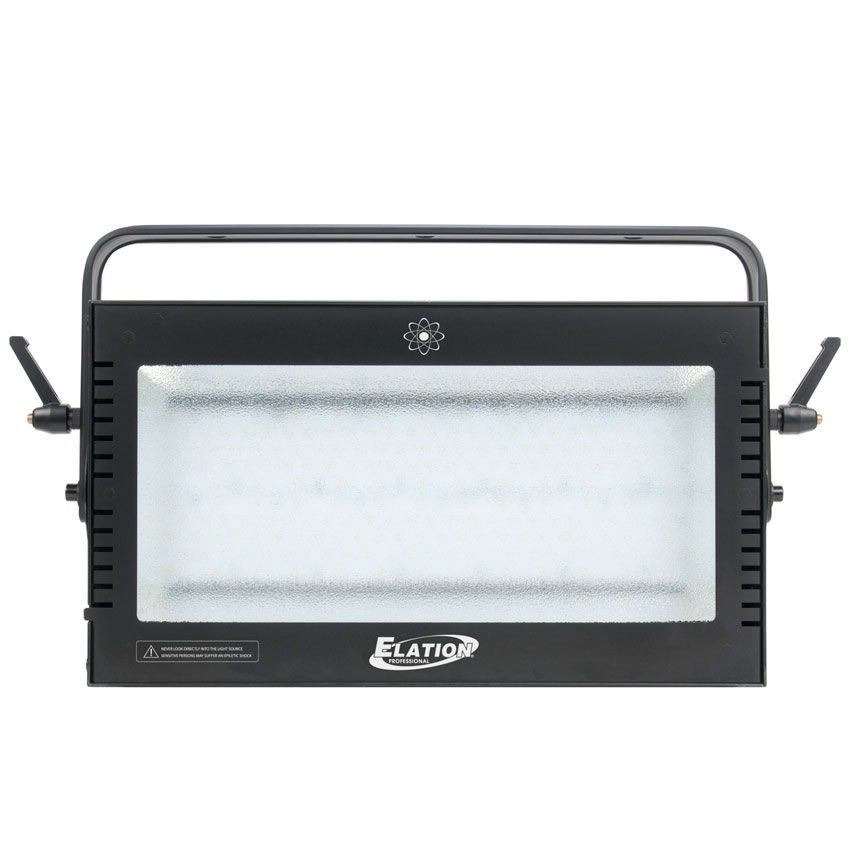

The Protron 3K' is a new high powered LED strobe featuring (202) CREE' 3W Cool White LEDs, 80,000 lumens, 120 beam angle, (2) power modes (HIGH or LOW), strobe effect macros including burst, pulse, lighting, and full ON*, (2) silent cooling fans, electronic dimming, 3/5pin DMX and Locking Power Cable in/out connections, (4) button LCD control panel, an integrated rigging yoke, 900W max power consumption, and a multi-voltage universal auto switching power supply (100-240v). *Thermally regulated output at full max 10 seconds.
FEATURES• 120 Beam Angle
• (2) Power Modes (HIGH and LOW)
• (2) Silent Cooling Fans
SOURCE• (202) CREE' 3W Cool White LEDs
• 80,000 Total Lumens
• 50,000 Hour Average LED Life**
**LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA• 16,450 LUX 1,528 FC @3.3' (1m) (120 Full ON)
EFFECTS• Electronic Dimming
• Burst, Pulse, Lighting, Full ON*
*Thermally regulated output at full max 10 seconds.

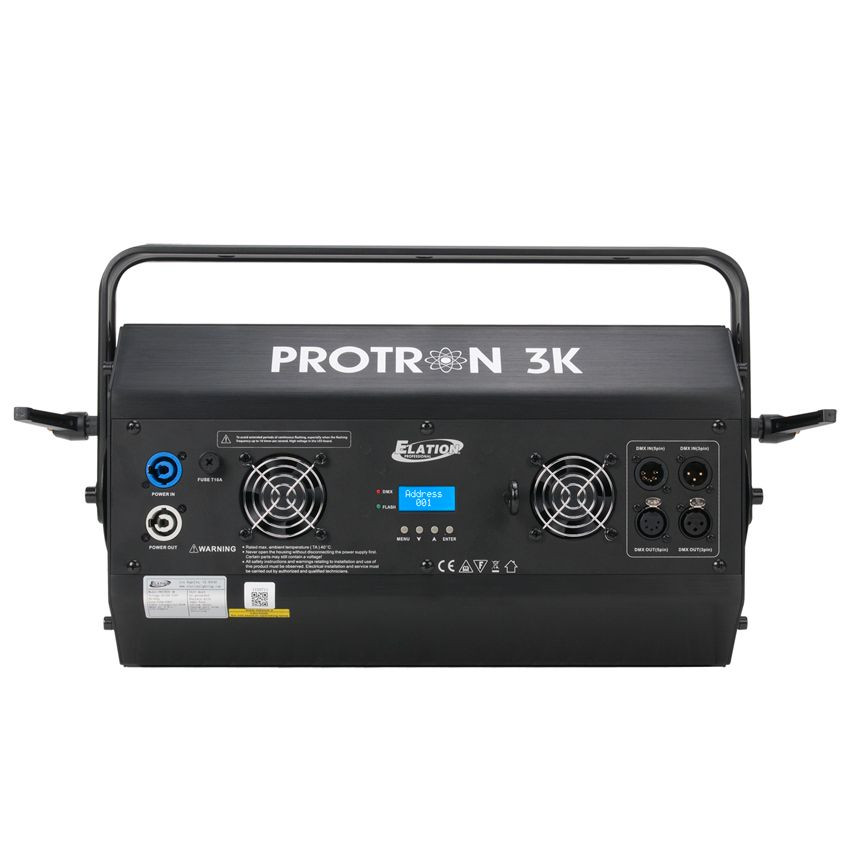

CONTROL / CONNECTIONS• 4 DMX Channel Modes (1 / 2 / 3 / 4)
• 4 Button Control Panel
• LCD Menu Display
• 3/5pin DMX In/Out
• powerCON In/Out
• Power Link Up To (2) Units at 120V
SIZE / WEIGHT• Length: 21.5" (546mm)
• Width: 6.9" (175mm)
• Vertical Height: 11.7" (296mm)
• Weight: 17.2 lbs. (7.8kg)
ELECTRICAL / THERMAL• AC 100-240V - 50/60Hz
• 900W Max Power Consumption
• Max Ambient Temperature 113F (40C)
APPROVALS / RATINGS• CE | cETLus | IP20
INSTALLATION• Rigging: Integrated Yoke
• Working Position: Any (360)
INCLUDED ITEMS• Locking power cable
