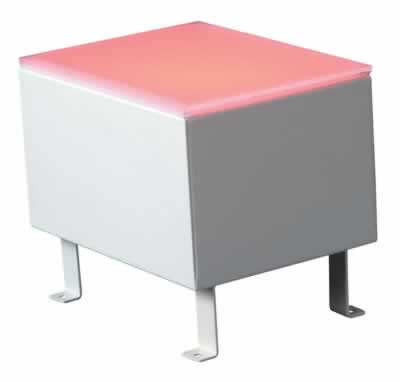

Elation QUADRA 8 LED Light

This solid-state lighting system has been designed for easy installation and safe energy efficient, long life operation. The combination of Red, Green and Blue LEDs offers a tremendous range of colors with smooth transitions from one color to the next.

SYSTEM FEATURES:
• 4 x Quadra-60 cubes
• 60 x LEDs per surface ea.
• 20 red, 20 blue, 20 green
• Face Panel 6" x 8"
• LightWeight Aluminum case design
• 4 pin in/out connections on rear panel
• Serial connection system
• Unit addressing switch
• 1 x Pixel Drive 8 Controller
• 2 x 4 pin 3 meter cables
• 2 x 4 pin 6 meter cables

CONTROL FEATURES:
• Must use Pixel Drive 8
• Maximum 4 cubes per controller

COLORS:
• R,G,B Additive Color Mixing
• Color Macros

SHUTTER/DIMMER:
• Electronic Dimming 0-100%
• Electronic Strobing 1-29fps
• Variable speed strobe Pulse effect

MOUNTING:
• 4 x Mounting feet

DIMENSIONS & WEIGHT per cube:
• Mounting feet: 2"high
• Dimensions: 6"x8"x5"deep w/2" feet (oal depth 7")
• Weight: 3.5 lbs. each

POWER SUPPLY:
• Voltage: 0-10V Analog
• Must use Pixel Drive 8
