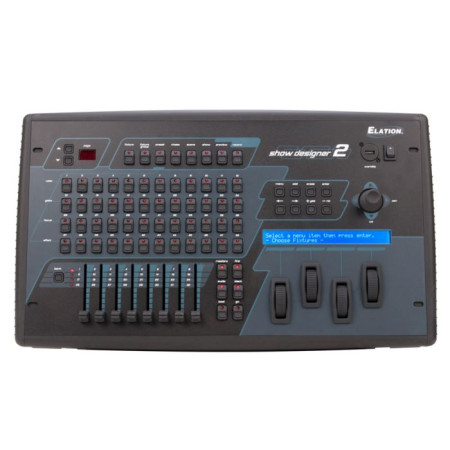

Elation SHOW-DESIGNER-2CF 1024-Channel DMX Console w/ CF Card

elation showdesigner2cf
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Dropships Usually ships direct to you from Elation Professional in 1-2 business days
Free Shipping FREE Shipping
VIP Price:
The Show Designer 2 is a lighting controller based on the successful and simple to use Show Designer. TheShow Designer 2 expands on the existing features and adds several others. The approach of this controlleris to simplify the programming process as much as possible while still offering a high level of control at alow cost.48 lighting fixtures of up to 32 channels each can be controlled using two DMX 512 outputs. Control of upto 1024 DMX lighting channels is possible. Support of Elation and American DJ lighting fixtures as well asother popular brands is included in the setup menu. Additional lighting fixture profiles can also bedownloaded from the Elation web site.The operating system of the Show Designer 2 uses flash memory so that the software can be updated froma computer or the optional floppy disk drive. Software updates will be made available on the ElationLighting web site at

• 2 Universe Outputs
• 1024 Total DMX Channels
• Large Fixture Library
• Effects Engine
• 1152 Programmable Chases
• 4752 Programmable Scenes
• 1152 Programmable Shows
• 1152 Programmable Presets
• Control 48 moving light fixtures of up to 32 channels each
• 48 Fixture groups
• 8 faders allow control of 32 DMX fixture channels or as 32 scene masters
• Scene Preview with "Go" feature
Factory ready Color, Gobo, Focus & Effects Presets!
• Easily Name Scenes, Chases or Shows using Standard Computer KEY BOARD!

• 80 Character backlit LCD Display for easy programming
• 48 Multi function buttons
• JOYSTICK for Pan/Tilt Operation
• 4 Large Rotary wheels for Menu and Control
• 8 Faders x 4 Banks

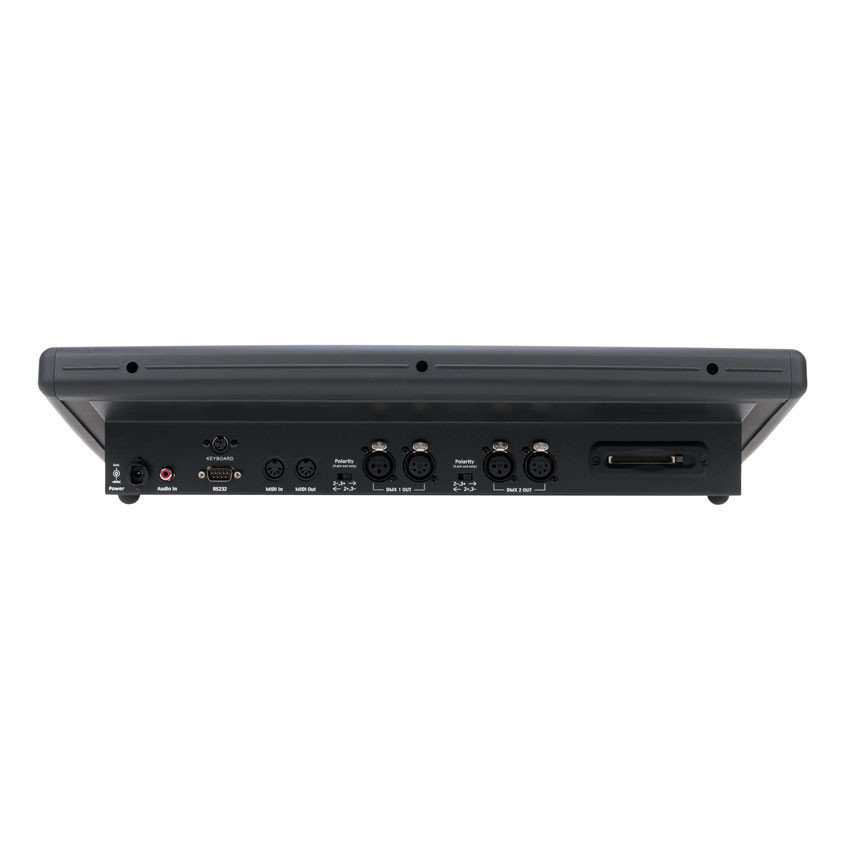

• XLR Little Light Connector
• ON/OFF power switch

• 2x(3Pin) DMX Outputs
• 2x(5Pin) DMX Outputs
• Midi-In port
• Midi-Out port

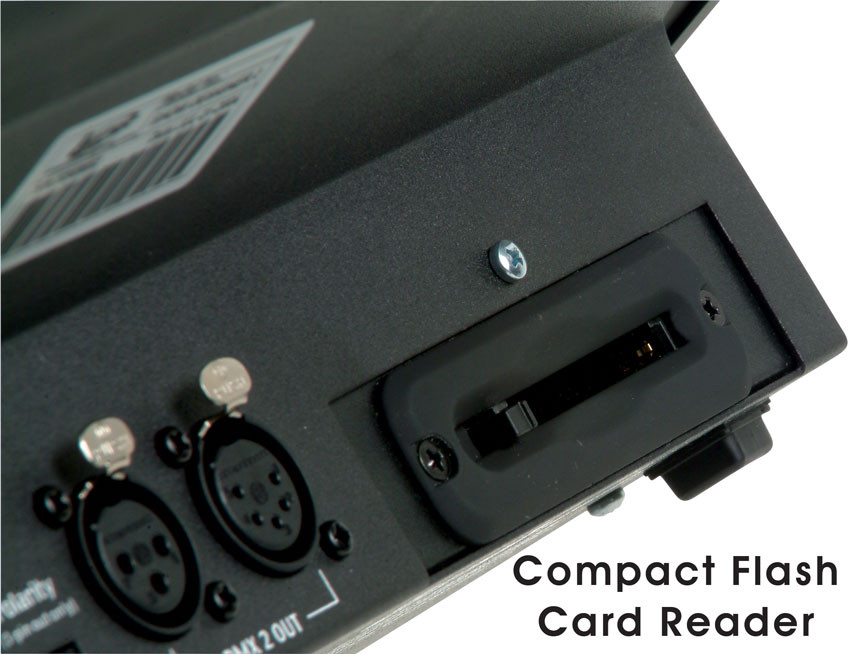

• Compact Flash Drive (compatible with most standard Compact Flash Cards; For optimal results Elation Professional recommends 64MB SanDisk or 64MB Cannon Compact Flash Cards only
• RS-232 Port, for PC interface
• 2 x Polarity Switch per Output
• RCA Audio Input for Chases

• Polarity switch (2-,3+/2+,3-) 3 Pin XLR only
• 1MB internal memory
• Battery Back up
• 19" Rack mountable, 6 space
• Dimensions: 19" x 10.5" x 4"
• Weight: 10 lbs
• Voltage: 120V/220V via (Power Supply)9-12v DC/1200ma

Additional Information

ManufacturerElation Professional
Product ConditionNew
