The new indoor version SIXPAR 300 features (18) 12W 6-IN-1 RGBAW+UV LEDs, 100,000 average hour LED life, 15 beam and 25 field angles, electronic strobe and dimming (0-100%), 5 variable dimming curve modes, dual yoke / floor stand, multiple unit power linking, RDM (remote device management), rugged die-cast aluminum exterior, flicker free operation for TV and FILM, 220W max power consumption, and a multi-voltage universal auto switching power supply (110-250v).
VIDEO
SIXPAR 300 FEATURES • 15 Beam 25 Field Angles
• 5 Variable Dimming Curve Modes
• Dual Yoke / Floor Stand
• Multiple Unit Power Linking
• RDM - Remote Device Management
• Rugged Die-Cast Aluminum Exterior
• Flicker Free Operation for TV and FILM
SOURCE • (18) 12W 6-in-1 RGBAW+UV LEDs
• 100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA • 24,500 LUX 2,276 FC @3.3' (1m) (15 Full ON)
• 8,500 LUX 790 FC @6.6' (2m) (15 Full ON)
• 3,950 LUX 367 FC @9.8' (3m) (15 Full ON)
• 2,150 LUX 200 FC @13.1' (4m) (15 Full ON)
• 1,350 LUX 125 FC @16.5' (5m) (15 Full ON)
EFFECTS • Electronic Strobe
• Color and Chase Macros
• Electronic Dimming: 0% - 100%
• 5 Variable Dimming Curve Modes
CONTROL / CONNECTIONS • (4) DMX Channel Modes (6 / 7 / 8 / 12)
• (4) Button Touch Control Panel
• LCD Menu Display
• 3pin & 5pin DMX and powerCON In/Out
SIZE / WEIGHT • Length:14.4" (365mm)
• Width: 4.9" (125mm)
• Vertical Height: 14.4" (365mm)
• Weight: 18.0 lbs. (8.1 kg)
ELECTRICAL / THERMAL • AC 110-250V - 50/60Hz
• 220W Max Power Consumption
• Power Linking: 5pcs @110V / 10pcs @240V
• 5F to 113F (-15C to 45C)
• UV Wavelength: 395nm
APPROVALS / RATINGS • CE | cETLus | IP20

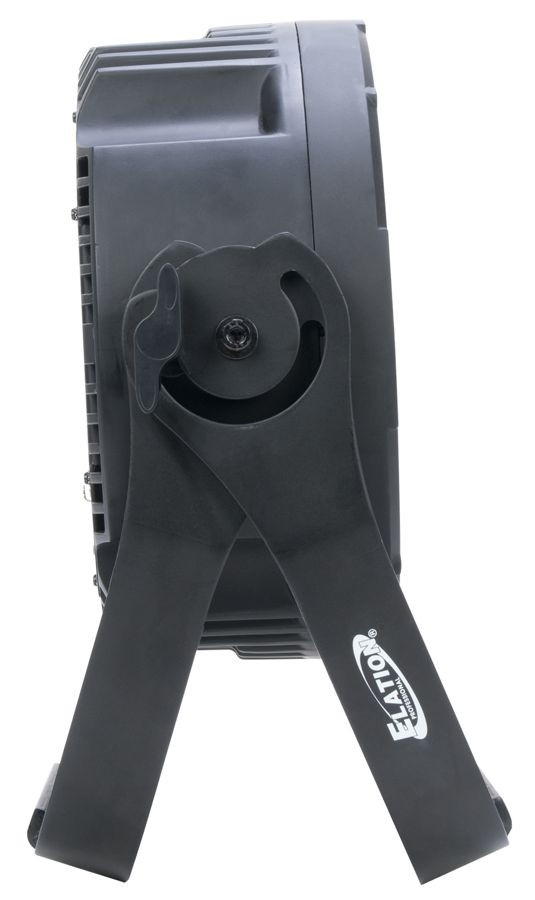

INSTALLATION • Rigging: Integrated Dual Yoke / Floor Stand
• Working Position: Any (360)
