Elation STAGE-Q DMX-512 Moving Light and Par Can Controller

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

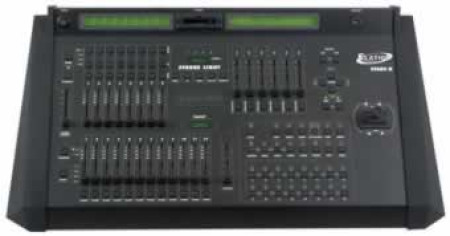

elation stage-q
DMX-512 Controller for 44 DMX Units, 20 preset Strobe programs and 48 programmable scenes!

• 512 DMX channels (24 ch. for pars, 8 ch. for strobes and up to 36 ch. per fixture)
• 20 preset Strobe programs & 48 programmable scenes
• 48 freely programmable shows for the fixtures, each with a maximum of 48 steps 48 freely programmable chases for the pars, each with a maximum of 48 steps
• Internal Library is editable for up to 256 fixtures
• Compact Flash Card slot (32MB) to exchange the data, library, memory and set-up files
• The data files can be downloaded or uploaded to a PC
• Audio input and built-in microphone for music sync. Functions • Joystick for Pan/ Tilt adjustment of fixtures
• Blackout & Grand Master
• Two LCD displays, 40x2 characters each & two 4-digit LED display
• Four 3-pin female XLR sockets for output of • MIDI In/ Thru/ Out connectors
• User updated software capability
• USB gooseneck lamp connection
• Dimensions (LxWxH): 25.5" x 15.75" x 4.5" / 650x400x115mm
• Weight: 19 lbs. / 8.3kgs.

• Outputs: 4x 3-pin Neutrik XLR (Built-in 4-way DMX branch)
• Midi In/Thru/Out: standard 5-pin DIN Connector
• RS-232 Port: 9-pin connector (Compatible with American DJ/LSC/Elation update software)
• Audio Input: 1/4" unbalanced stereo jack

Additional Information

ManufacturerElation Professional
Product ConditionNew - On Clearance
