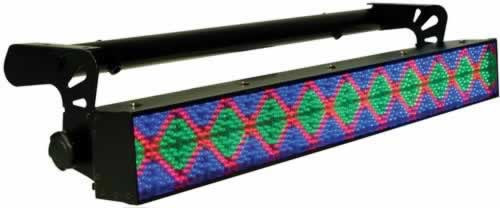

Elation TP84A DMX LED Pro Bar

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

elation tp84a
NULL

DMX LED Pro Bar

FEATURES:
• 840 LEDs - (280 Red, 280 Green, 280 Blue)
• Seamless RGB color mixing
• Infinite Color possibilities
• 15-degree beam angle
• 2300 LUX @ 1M / 1000 LUX @ 2M
• Long Life L.E.D. (rated at 100,000 Hours)
• Low power consumption
• Low heat emissions
• Built-in Power Supply and DMX 512 Control
• Flicker free operation for television and film (520Hz)
• Electronic Switching Power Supply (90-260V, 50/60Hz)
• Full video pixel mapping control. LEDs are arranged in ten modules of 84, each of which can be divided into four individual sections. This provides a total of 40 pixels capable of running graphics or matrix when multiple units are used together.

CONTROL SPECIFICATIONS:
• USITT-DMX 512
• 4, 7, 8, 20, 40, 160 control channel modes
• LCD display with 4-button DMX control
• 3-pin and 5-pin XLR in/out

CONTROL FEATURES:
• 4 control modes: DMX; Master/Slave; Manual Color Mix; Auto Chase
• 19 pre-programmed chases
• Strobe effect
• 7 static colors with intensity control
• 0-100% Dimming

POWER SUPPLY:
• 100-240V AC, 50/60Hz (Multi-voltage)
• Neutrik Powercon for power connection
• Power Consumption: 120 watts

RIGGING:
• Heavy duty mounting bracket

DIMENSIONS & WEIGHT:
• (LxWxH): 40" x 10.25" x 9.75" / 1010x258x245mm
• 25 lbs. / 11.3 kgs.

Additional Information

UPCN/A
SKUTP84A
ManufacturerElation Professional
Product ConditionNew - On Clearance
ReturnableNo
