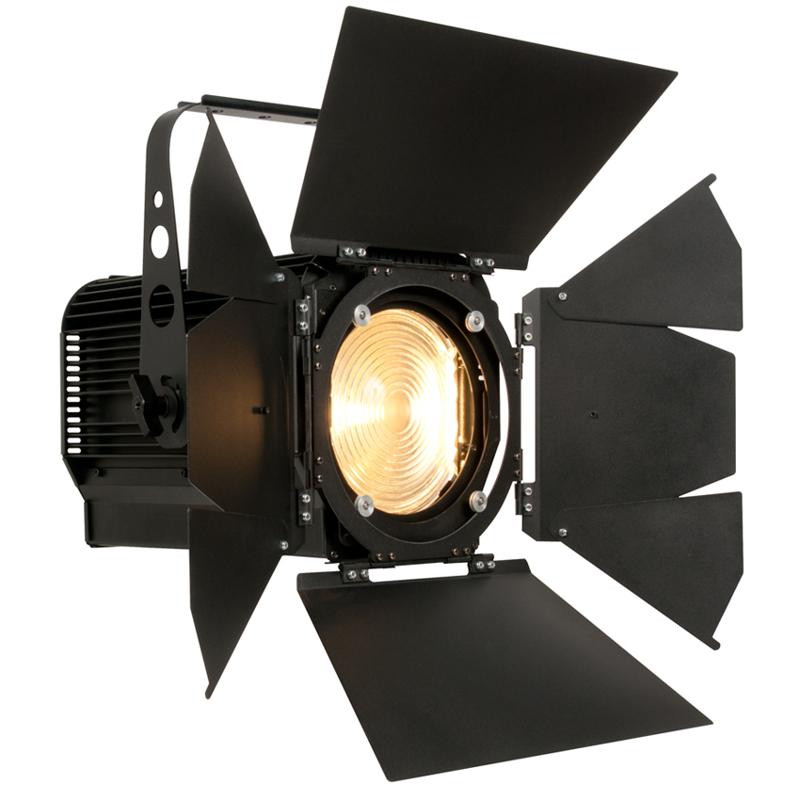

The new TVL F1CW' features a 100W Warm White 3,200K LED engine, motorized 12-40 zoom, no noise thermo-optical cooling, DMX controlled dimmer and zoom, flicker free operation for TV and FILM, 5pin DMX in/out, powerCon, 2 Ethernet (RJ45) connections, integrated yoke / handle, 141W max consumption, and a multi-voltage universal auto switching power supply (100-240v).
FEATURES
12 - 40 Motorized Zoom
DMX Controlled Dimmer/Zoom
Flicker FREE Operation for TV and FILM
No Noise Thermo-Optical Cooling Technology
SOURCE
(1) 100W Warm White LED Engine
50,000 Hour Average Life
PHOTOMETRIC DATA
High CRI = 95 / 24.3 Lm/W 3,200K 200K
2,192 Max LUX @5M (12 Full On 3,200K)
EFFECTS
Zoom: 12 - 40
Dimming: 0% - 100%
CONTROL / CONNECTIONS

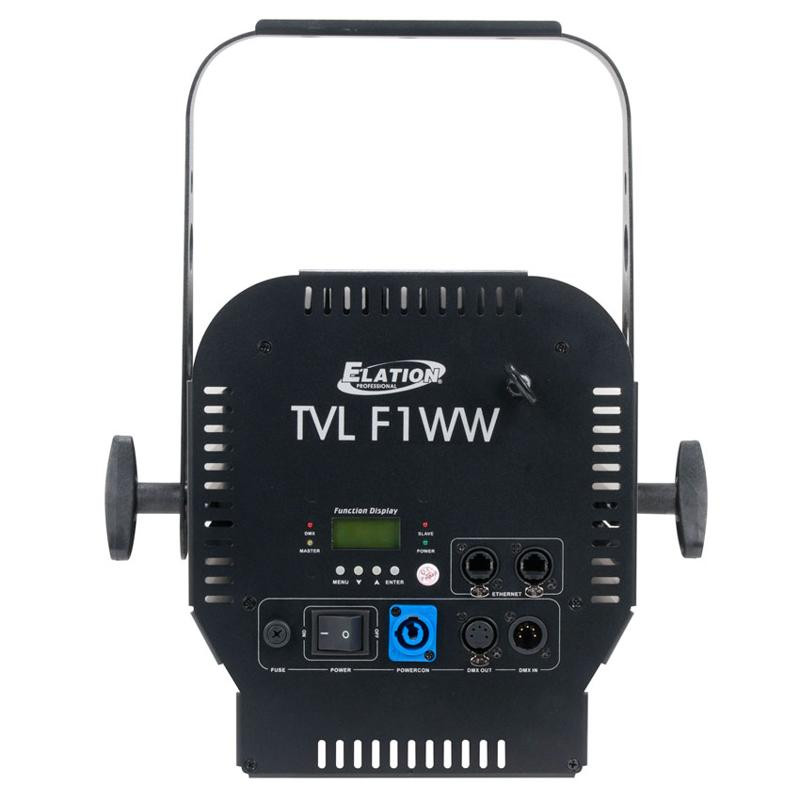

4 Button Control LED Menu Display Panel
2 DMX Channels
5pin DMX In/Out
2 Ethernet (RJ45) Ports
powerCON Power In
SIZE / WEIGHT
Length: 20.4" (519 mm)
Width: 16" (407 mm)
Vertical Height: 17.4" (442 mm)
Weight: 35 lbs. (15.8 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
141W Max Power Consumption
40C / 104F Max Ambient Temperature
APPROVALS / RATINGS
CE pending
cETLus pending
IP20 Rated
INSTALLATION
Rigging: Clamps (Not Included)
Working Position: Any (360)
INCLUDED ITEMS
Integrated Yoke/Handle
powerCON Cable

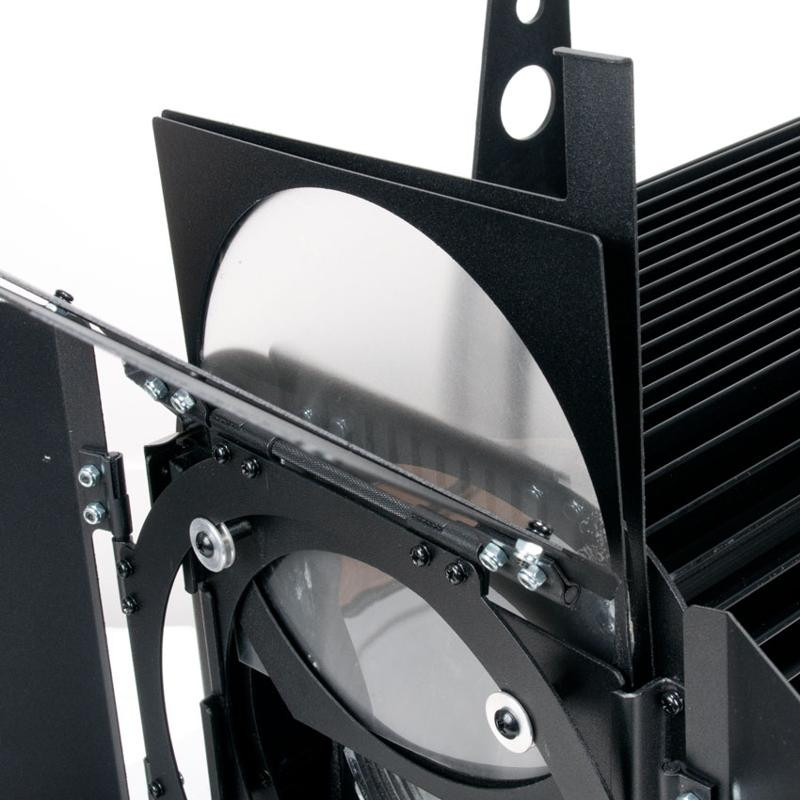

Rotating Barn Door
Gel Frame
