Elation VBAR270 LED Brick Fixture w/270 LEDs

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

elation vbar270
Images may show accessories or configurations not packaged with this item.

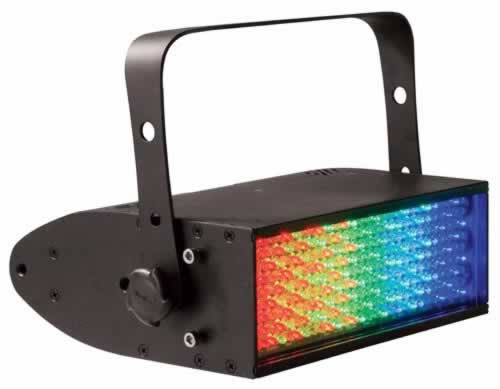

The Alkalite, VBAR 270 is a versatile, compact and light weight, LED color wash for any indoor application. This fixture features 270, 5mm LEDs with RGB color mixing allowing the user to achieve a vast array of colors. The VBAR 270 operates via DMX-512, Master/Slave or Auto Chase mode with 19 built-in color chase programs. The unit has a 15-degree beam angle, has a variable strobes function and may be electronically dimmed (0-100%). With lower power draw (30W), low heat emission and flicker-free operation the VBAR 270 is the perfect light tool to any stage setting.

FEATURES:* 270 x 5mm LED's - (90 Red, 90 Green, 90 Blue)* Seamless RGB color mixing* Infinite Color possibilities* 15-degree beam angle* 2024 LUX @ 1M / 570 LUX @ 2M* Long Life L.E.D. (rated at 100,000 Hours)* Low power consumption * Low heat emissions* Built-in Power Supply and DMX 512 Control * Flicker-free operation for television and film (520Hz) * Electronic Switching Power Supply (90-260V, 50/60Hz)CONTROL SPECIFICATIONS: * USITT-DMX 512 * 5, 8, 11, 14, 20, 23 control channel modes * LCD display with 4-button DMX control * 5-pin XLR in/out CONTROL FEATURES: * 3 control modes: DMX (manual); Master/Slave; Auto Chase * 19 pre-programmed chases * Strobe effect * 7 static colors with intensity control * 0-100% DimmingPOWER SUPPLY: * 100-240V AC, 50/60Hz (Multi-voltage) * Neutrik Powercon for power connection * Power Consumption: 30 wattsRIGGING: * Mounting bracket * Optional mounting bracket kitsDIMENSIONS & WEIGHT:* (LxWxH): 10" x 3.75" x 8.5" / 250x93x212mm * 8 lbs. / 3.3 kgs.

Additional Information

ManufacturerElation Professional
Product ConditionNew - On Clearance
