Elation VISION-575 Pro 575w DMX Scanner

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

elation vision-575
Images may show accessories or configurations not packaged with this item.

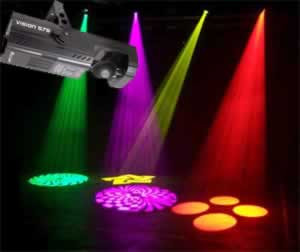

The VISION-575 Professional 575watt DMX Scanner definitely shows just what Elation Lighting is all about! It comes with 11 fixed gobos, 6 interchangeable gobos, 11 dichroic colors + white, and a slew of other features!


• DMX 512
• 8 and 16 bit pan/tilt 14-16 channels
• Four digit L.E.D menu panel
• Readout lamp usage, DMX values, etc
• Built in self test mode for all effects
• Remote lamp on/off
• Addressing, personality setting and effects
calibration via L.E.D menu panel
• Axial reflector
• Pan movement range 170
• Tilt movement range 110
• 11 dichroic color filters + white
• Frost Filter
• 32K filter
• 56K filter
• UV filter
• 2 motorized gobo wheels
• 6 interchangeable 26.9 mm index-able gobos
• 11 fixed gobos
• Combined mechanical dimmer/shutter
• Full range, smooth micro step driven dimming
• Variable strobing 1-10 flashes per sec.
• Motorized iris
• Rotating 3-facet prism
• Motorized focus
• 15 beam angle (optional 12Lens available)
• Lamp Source: OSRAM HMI575/GS (575W, 6000K, 750 hr.)
• Silent fan cooling (speed controllable via DMX)
• Dimensions: 25.2" x 9.46" x 8.27"
(640 x 240 x 210 mm)
• Weight: 70.5 lbs (32 kg)
• Electrical, Magnetic Ballast
• 100/115/208/230V AC, 50/60 Hz

Additional Information

ManufacturerElation Professional
Product ConditionNew - On Clearance
