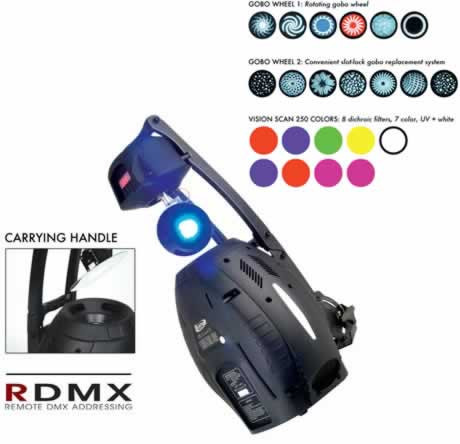

CONTROL FEATURES• RDMX - Remote DMX Addressing
• USITT DMX-512 (16-bit resoultion)
• 14 DMX channels
• 4 Digit L.E.D. Display
• On board menu settings
• 3-pin XLR serial input/output
• Sound active mode
OPTICAL SYSTEM• High output luminous-parabolic dichroic reflector
• 15 Beam Angle
• All lenses are anti-reflection coated
COLORS• 8 dichroic filters, 7 Colors, UV + White
• Continuous, variable speed, color scrolling in both directions (rainbow effect)
• More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel
GOBOS• 2 gobo wheels, 13 total gobos, 10 metal, 3 glass with Slot-Lock gobo replacement system
• 6 interchangeable, indexable, rotating gobos plus open
• 7 interchangeable, static gobos plus open
• 26.9mm outside diameter, 23mm image diameter
• Gobo Overlay (Gobo Morphing)
SHUTTER/DIMMER• Variable speed strobe effect (1-10) flashes per second
• Pre-set variable/random strobe and dimming pulse effect
• Dual Flag mechanical dimming system
PRISM• 3 facet prism rotating in both directions at variable speeds
• Macro-function for rotating gobos/rotating prisim combinations
FOCUS• Motor driven focus from near to far
LAMP• Phillips MSD 250/2 (250W, 8500K, 3000 HRS)
PAN/TILT• Maximum PAN-movement 170
• Maximum TILT-movement 85
• Vector Mode with blackout
RIGGING• 1 x Heavy Duty yoke
• 1 x Safety cable hole
POWER SUPPLY• 8A or 4A Fuse
• Magnetic Ballast
• Voltage: AC 98, 120, 208, 220, 230, 240V 50/60Hz
• Power Consumption 400W
DIMENSIONS & WEIGHT• 15"L x 14"W x 29.25"H
48.5 lbs.
