The new VOLT Q5 features (5) 15W Quad Color RGBW LEDs, color mixing, rainbow effect, a 7 to 13 field angle range, 8 auto program chase effects, 3-pin DMX connections, a blue and white LCD color menu display with 4 button control panel, and an IP65 rating. The fixture's built-in rechargeable Lithium-ion battery last up to 8-12 hours (full-on/color changing). The Volt Q5 also has a built-in Wireless DMX receiver that's compatible with Elation Professional's EWDMX or W-DMX.
FEATURES
4 Button Control Panel
8 Auto Program Chase Macros
Single Omega Bracket Mounting

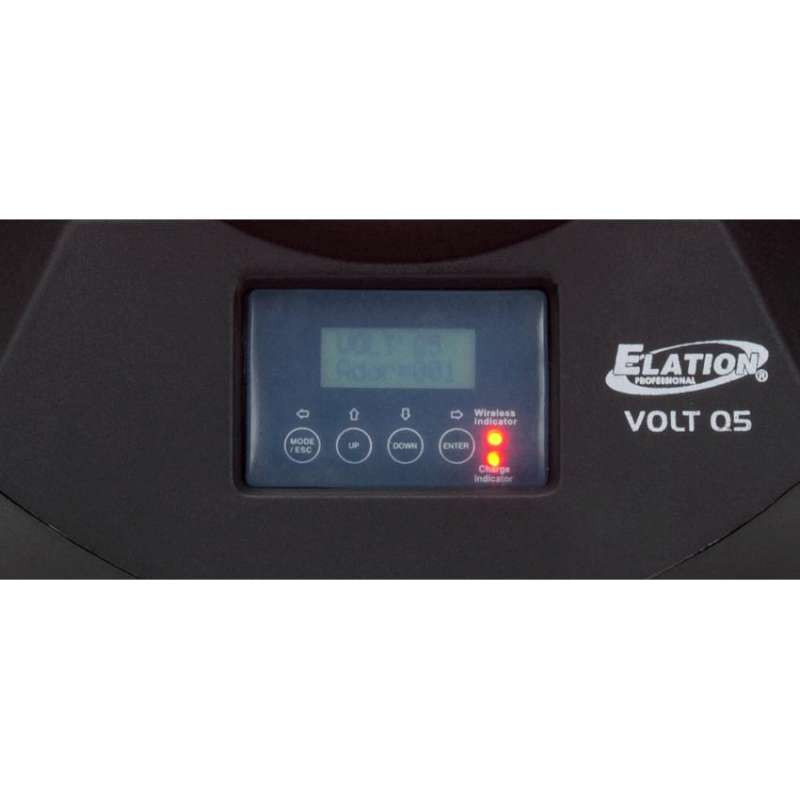

Blue & White LCD Color Menu Display
Software Upload via Optional External DMX Accessary
Rechargeable built in Lithium-ion battery (8-12 hours: full-on/color changing)
Built-in Wireless DMX receiver compatible Elation Professional's EWDMX or W-DMX
SOURCE
(5) 15W RGBW QUAD COLOR LEDs
100,000 Hours Average Life
PHOTOMETRICS
Max 7,260 LUX @3M
7 to 13 Field Angle Range
EFFECTS
Pulse Effect
Color Mixing
Rainbow Effect
Strobe: 1 - 18 Flashes Per Second
Dimming: 0% - 100% + Blackout for All Four Colors
CONTROL / CONNECTIONS
4 DMX Channel Modes (4/5/7/9)
3pin DMX In/Out
2pin IP Connector Power In
SIZE / WEIGHT
Length: 11.4" (290mm)
Width: 9.9" (251.2mm)
Vertical Height: 11.3" (288.4mm)
Weight: 15 lbs. (6.8kg)
ELECTRICAL / THERMAL
DC 12-16.8V
-10C/14F to 45C/113F
APPROVALS / RATINGS
CE Pending
cETLus Pending
IP65 Rated
California Prop 65 -
WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
