• 10-inch LF SMX woofer
• 1.25-inch HF titanium compression driver
• 2000 W Class-D power amplifier with integrated FIR-Drive DSP
• 134 dB peak SPLFir-Drive Technology
EV's FIR-Drive utilizes the latest Finite Impulse Response (FIR) filter technology to optimize transducer linearity. Advanced limiter algorithms for independent peak and thermal transducer protection. Top Grade Components
State-of-the-art components deliver the legendary EV sound quality and reliability the pros trust: 2000 W Class-D power amplifiers with integrated DSP produce high SPLs utilizing high-sensitivity, low-distortion transducers (including DVX and SMX series woofers and 1.25-inch HF titanium compression drivers). DSP Control

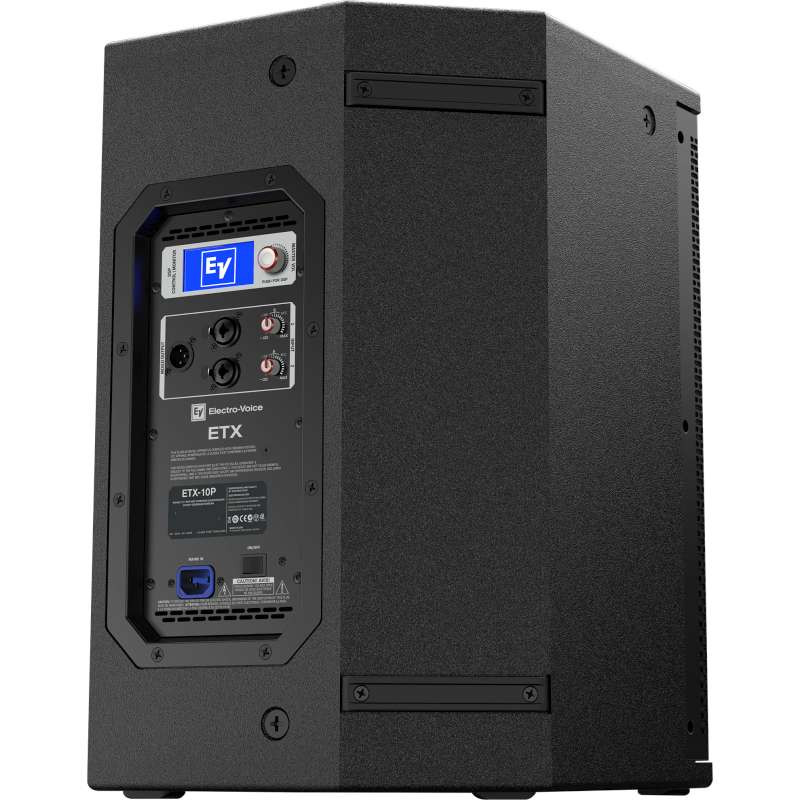

Complete full-function DSP control via a single-knob interface. LCD screen for easy system set-up and monitoring: location/application EQ presets, limiter status, input level controls/meters and master volume control to ensure optimal gain structure. Superior Construction
Lightweight, durable and compact 18-mm, 13-ply birch plywood enclosures finished with EVCoat. Eight mounting points for permanent installations. Custom die-cast aluminum pole cups, handles and hardware. Optimized Waveguide
EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage across all system configurations. Waveguides are custom-designed and optimized per ETX Powered Loudspeaker model. Built in the USA!
Designed, engineered, tested, and assembled for ultimate reliability by Electro-Voice in the USA.
Frequency Range65 Hz - 20 kHz Full space measurement using the music DSP preset and 150 Hz low pass.
Maximum SPL134 peak dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
Power Consumption100 - 240 V, 50 - 60 Hz, 1.6 - 0.8 A Current rating is 1/8 power.
Power Rating2000 W
Frequency Response85 Hz - 20 kHz Full space measurement using the music DSP preset and 150 Hz low pass.
Coverage (Nominal -6 dB) H90
Coverage (Nominal -6 dB) V60
LF TransducerSMX2100 254 mm (10 in)
HF TransducerDH3-B 1.25-in titanium compression driver
Crossover Frequency1700 Hz
Connector Type(2) XLR/TRS combo jack and (1) XLR link output
Enclosure Material18-mm, 13-ply birch plywood with EVCoat
Grill16AWG steel with powdercoat
Suspension(8) M10 suspension points
Height526 mm (20.71")
Width330 mm (12.99")
Depth365 mm (14.37")
Weight Net20.3 kg (44.75 lbs)
Shipping Weight22.9 kg (50.49 lbs)
