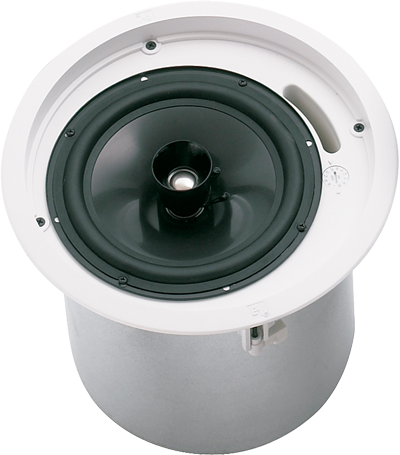

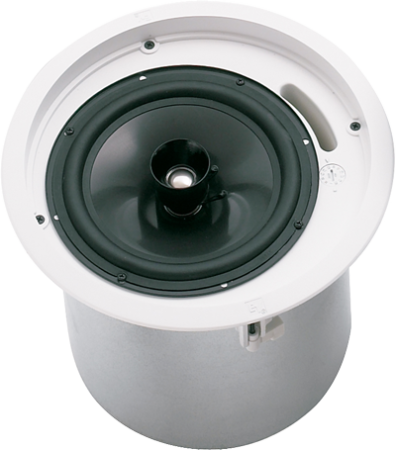

ElectroVoice EVID C8.2 Coaxial Ceiling Loudspeaker Pair

FEATURES:
• Ported enclosure for extended bass response
• Waveguide-coupled 1-inch titanium-coated tweeter
• Full-bandwidth overload protection
• Integrated transformer for 70 V, 100 V, or 8 O use
• Front-panel mode/wattage selector
• Safe, easy installation with included tile bridge and mounting ring
• White semi-gloss perforated grille
• Complete package, requires noadditional accessories

SPECIFICATIONS:
Sensitivity (SPL 1W/1m): 91 dB
Max Calculated SPL: 110 dB Cont. / 116 dB Peak
Impedance: 8 Ohms nominal (transformer bypass)
Network: Network and transducers protected, 12 dB/oct 2.6 kHz
LF Transducer: 8 in. (200 mm) Polypropylene cone
HF Transducer: 1 in (25 mm) Ti Mylar laminate
Transformer Taps: 70V: 1.88, 3.75, 7.5, 15 or 30w 100V: 3.75, 7.5, 15 or 30W Bypass: 8 Ohms
Connectors: C8.2: Phoenix type removable, with screw terminals and "loop-thru", accepts 12 ga wire C8.2D: Fire-safety rated input block, 3 terminal barrier strip accepts 12 ga wire
Enclosure Material: Baffle- UL 94V-O rated ABS Backcan-Zinc plated steel
Grille: Perforated powder coated steel with safety tether
Support Hardware: Tile bridge, backing plate support, cutout template, paint shield
Dim (H x Dia.): 10.0" x 10.6 (255mm x 270mm)
Cutout Size: 10.75" (272mm)
Net Weight (each): 11.0 lbs (5.0 kg)
Shipping Weight (pair): 24.0 lbs (11.0 kg)
Safety Agency Ratings: UL 1480 Safe for use in air handling spaces per UL 2043.
