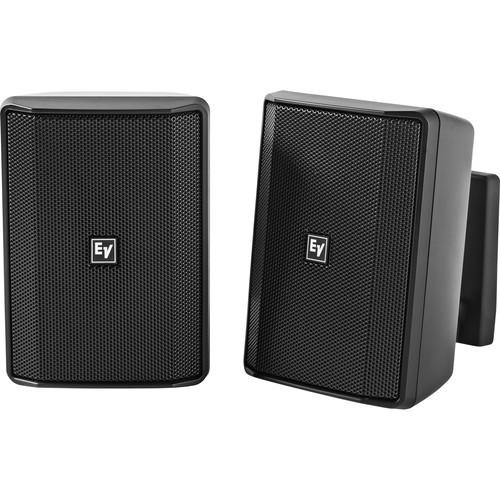

The EVID-S4.2T, from Electro-Voice, is a high performance, two-way, full-range, 4" (102 mm) surface mount speaker with excellent wide, uniform coverage, and outstanding performance. It is designed for background and foreground music, paging, and sound reinforcement, and it's ideal for a wide variety of indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues, and others. With unparalleled ease-of-installation, sturdy weather resistance, modern and delicate look, and it's flexible mounting options, the EVID-S4.2T is the perfect solution for a wide variety of surface mount applications.
The EVID-S4.2T includes the unique and innovative mounting system, from Electro-Voice, making every installation quick, simple, and reliable. The mounting system allows for 90 degrees of rotation horizontally, and 45 degrees of rotation vertically, and it can be easily installed on walls and ceilings. The mounting system comes already assembled and ready to be used, ready to make any job easier.
The EVID-S4.2T utilizes a 15 W transformer, that offers a selection of 3.7 W (70 V only), 7.5 W or 15 W delivered to the speaker system using either 70 V or 100 V lines. Selection is done with a Euroblock connector on the input panel located on the rear of the speaker.
The EVID-S4.2T has been carefully engineered to resist outdoor environments, without compromising on performance for indoor applications. The full-range speaker is IP54 rated, and its weather-proofing is complemented with exceptional cabinet and grille resistance against sun, salt and moisture.
The wide range of EVID surface mount speakers has been designed to work together as a complete system in a variety of different surface mount constructions, and to be used in combination with other EVID ceiling and in-wall speakers.
• Pre-assembled mounting system allows 90 of horizontal rotation and 45 of vertical rotation
• 110 horizontal by 110 vertical coverage
• Fire-rated ABS plastic enclosure
• IP54-certified for enhanced weather resistance
• 4" long-throw woofer and 0.75" high-frequency driver
• 75 Hz to 20 kHz frequency response (-10 dB), 100 Hz to 20 kHz frequency response (-3 dB)
• 160W peak (40W continuous) power handling for 98.5 dB maximum SPL (104.5 dB peak)
• Removable, locking 4-pin Euroblock connector accepts up to 12 AWG (2.5mm) wire size
• Logo can be replaced to match speaker orientation
Frequency Range (-10 dB) 75 Hz 20 kkHz
Weight Net 63.49oz (1800g)
Depth 4.65" (118mm)
Connector Type Captive screws on wall bracket. Max. wire size 12AWG (2.5mm).
Coverage (Nominal -6 dB) H 110
Coverage (Nominal -6 dB) V 110
Environmental Specs IP54 (per IEC-60529)
Frequency Response (-3 dB) 100 Hz 20 kHz
HF Transducer 0.75 inch (20 mm)
LF Transducer 4 inch (102 mm)
Max. SPL/1m (calc) 104.5dB
Power Handling (Continuous / Peak) 15 W/60W
Power Rating 60W
Recommended High-Pass Frequency 70Hz
Sensitivity 1 W/1 m 86.5dB
Shipping Weight 11.9lbs (5.4kg)
Transformer 70V/100V (15W)
Weatherized Yes
