Equipped with the most comprehensive and user-friendly feature set of any column system on the market today, the EVOLVE 50M's "M" designation refers to its integrated fully featured, fully configurable eight-channel digital mixer. Developed in collaboration with the world-class audio electronics engineering team at Electro-Voice's sibling brand Dynacord, the mixer has multiple inputs with professional-grade preamps and mix functions.
High-resolution, low latency Bluetooth streaming ensures excellent results for music playback or accompaniment. Independent channel aux sends and a foot switch input are also included, and a range of effects (30 presets, including chorus, delay, flange and reverb, via two FX channels) add a myriad of options for musicians to fine-tune their tone. All of the above help to reduce load-in/out and setup/teardown time and on-stage clutter by minimizing the need for external equipment such as a mixer and effects pedals.
Professional performance, column convenienceThe EVOLVE 50M combines state-of-the-art industrial design, superior Electro-Voice-engineered components and premium materials to deliver best-in-class sound quality, power and reliability.
Wide, even coverageThe full-range column array and its eight lightweight 3.5" neodymium drivers provide ultra-wide, full-bandwidth 120 coverage via proprietary waveguides; array-formed 40 asymmetrical vertical coverage ensures acoustic output is directed towards both sitting and standing audience members.
QuickSmart LinkConnect two EVOLVE 50Ms via a network cable double your mic/line inputs and mix the whole band via the QuickSmart Mobile app
Easily expand your PANew from Electro-Voice, QuickSmart Link makes it easy to combine two EVOLVE 50Ms for use together with larger bands or gigs needing more inputs. Simply link the systems together via an Ethernet cable to create an uncompressed digital audio/control connection, pair both systems to a single mobile device via the QuickSmart Mobile app (available via the Apple App Store and on Google Play), and get full mix control of both systems. For applications requiring fewer inputs, but still requiring a mixer and stereo output, the EVOLVE 50M can be matched with an EVOLVE 50 via the MIX OUT XLR connector.
Wireless control & monitoringUse the Electro-Voice QuickSmart Mobile app to adjust all audio, effects and mix functions via your phone or tablet.
Column array 8x 3.5" neodymium drivers
Subwoofer 1x 12"
Frequency response (-3 dB) 43 Hz - 20 KHz
Frequency range (-10 dB) 37 Hz - 20 KHz
Maximum SPL 127 dB
Coverage (H x V) 120 x 40
Amplifier rating 1000 W
LF channel rating 500 W
HF channel rating 500 W
Crossover frequency 200 Hz

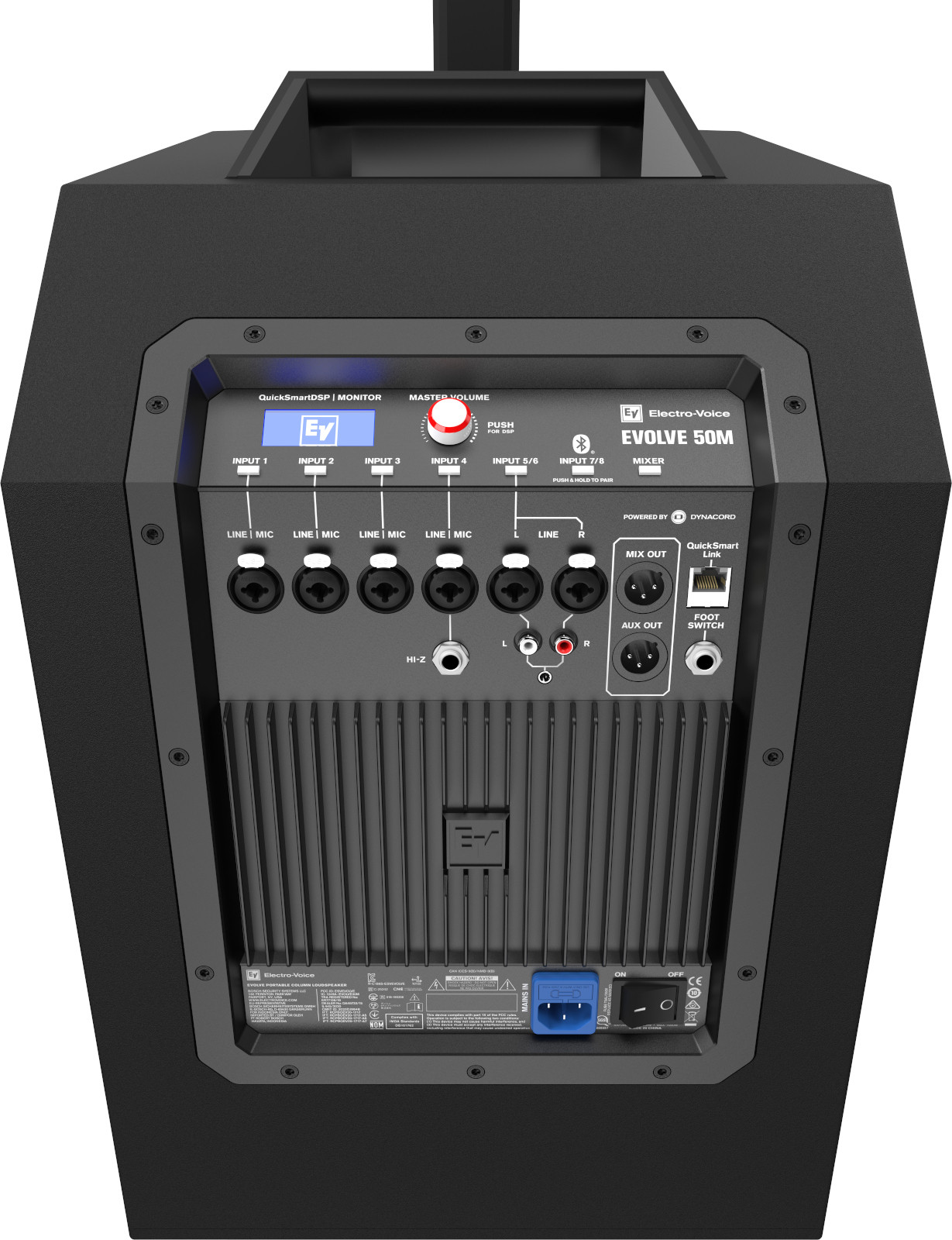

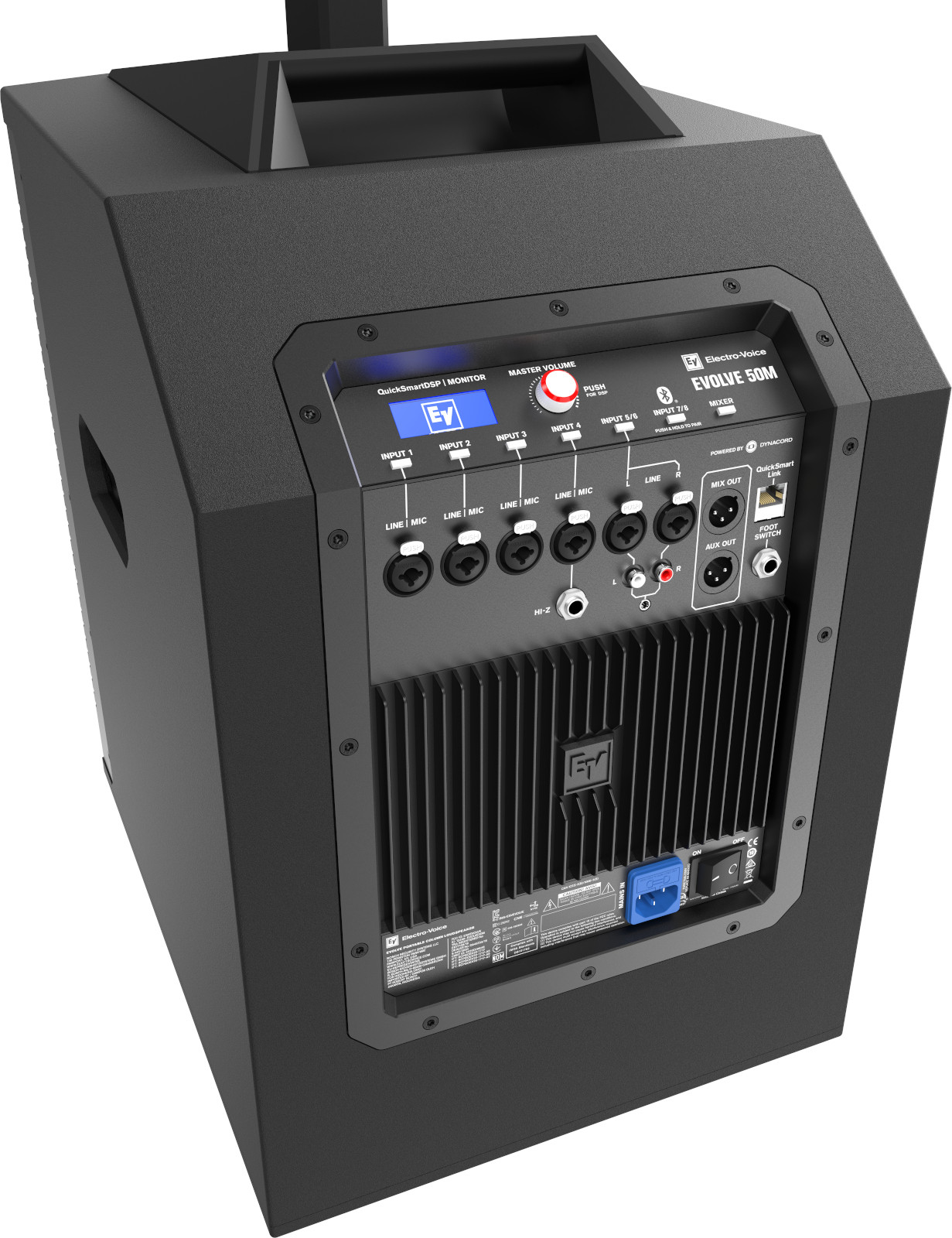

Connectors
• 4x XLR/TRS combo jack line/mic input
• 2x XLR/TRS combo jack for stereo line input
• 1x 1/4" TRS Hi-Z input
• 1x stereo RCA input
• 1x 3.5 mm stereo input
• 1x wireless stereo Bluetooth audio input
• 1x 1/4" foot switch input
• 1x XLR mix out output
• 1x XLR aux out output
• 1x RJ45 QuickSmart Link connector
Enclosure Column: composite; Pole: aluminum; Sub: 15 mm plywood
Grille Steel with black powder coat
Color Black
Dimensions (HxWxD): in (mm)
• Column: 32.5 x 4.0 x 6.9 (825 x 102 x 172)
• Pole: 36.6 x 1.9 x 2.2 (929 x 48.5 x 55)
• Sub: 20.9 x 13.6 x 18.5 (530 x 345 x 471)
• Assembled: 80.5 x 13.6 x 18.5 (2045 x 345 x 471)
Net weight: lbs (kg)
• Column: 10.34 (4.7)
• Pole: 2.75 (1.25)
• Sub: 44.66 (20.3)
• Total: 57.75 (26.25)
Power consumption 100-240 V AC, 50-60 Hz, 1.5-0.6 A
California Prop 65 -
WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
