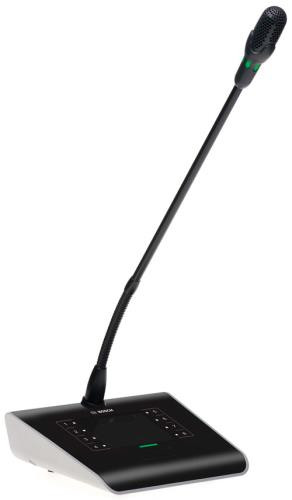

ElectroVoice PLM-8CS Call Station for Plena Matrix Systems

• Capacitive touch
• Programmable zone selection
• Modern aesthetic design
• Powered from PLM-8M8
• Loop-through to connect with either more Call Stations or Wall Control Panels

Voltage range 30 - 50 VDC
Power consumption 1.5 W
Microphone type Cardoid
Frequency response (-3dB) 100 Hz to 20 kHz (+0/-3 dB)
Input Clip level -11 dBu (-13.3 dBV)
THD+N (1 kHz, 6 dBFS): <0.03 %
Dynamic range (A-weighted) (mid gain setting) >97 dB(A)
Output level 24.4 dBu (22.2 dBV)
Connectors 2x
RS485 loop-through RJ45
Base dimensions (H x W x D) 50 x 156 x 140 mm(2 x 6.1 x 25.5 in)
Microphone stem length 390 mm (15.35 In)
Color Trafic black (RAL 9017) Silver (RAL 9006)
Weight Approx. 0.77 kgApprox. 1.69 lb
Operating temperature -10 C to +45 C
Storage and transport temperature -40 C to +70 C
Relative humidity <95%

What's Included
1 PLM-8CS 8 Zone Call Station
1 Safety documentation
