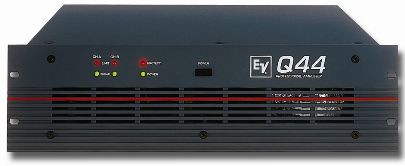

The Q-44 is based on EVs reference-standard P-Series. It guarantees the same high-quality construction and output, restricted only by the maximum power capability of 2 x 450 watts. The Q-44 designed for cost-limited mobile applications or smaller installations. It includes rear-mounted, dB-scaled, level controls, and is packed into a three-rack-space, zinc-plated steel housing.
SpecificationsAmplifier Gain (dB) 36dB Continuous rated power (1k Hz, THD 1%) 2Ω 650 Watts Continuous rated power (1k Hz, THD 1%) 4Ω 450 Watts Input Impedance (balanced) 20 kΩ Continuous rated power (1k Hz, THD 1%) 8Ω 280 Watts Continuous rated power(20-20k Hz, THD<0,2%) 4Ω 350 Watts Continuous rated power(20-20k Hz, THD<0,2%) 8Ω 230 Watts Slew Rate > 25 V / s Electronics Type Amplifier Network Control (IRIS-Net) No Total harmonic distortion < 0.05 % Intermodulation Distortion (SMTPE) < 0.08 % DIM 30 < 0.03 % Signal-to-noise ratio (A-weighted) > 105 dB Input Sensitivity 0 dBu / + 6 dBu Weight Net 15 kg ( 33.07 lbs ) Dimensions (HxWxD) 133 x 483 x 386 mm(5.24" x 19.02" x 15.2")
