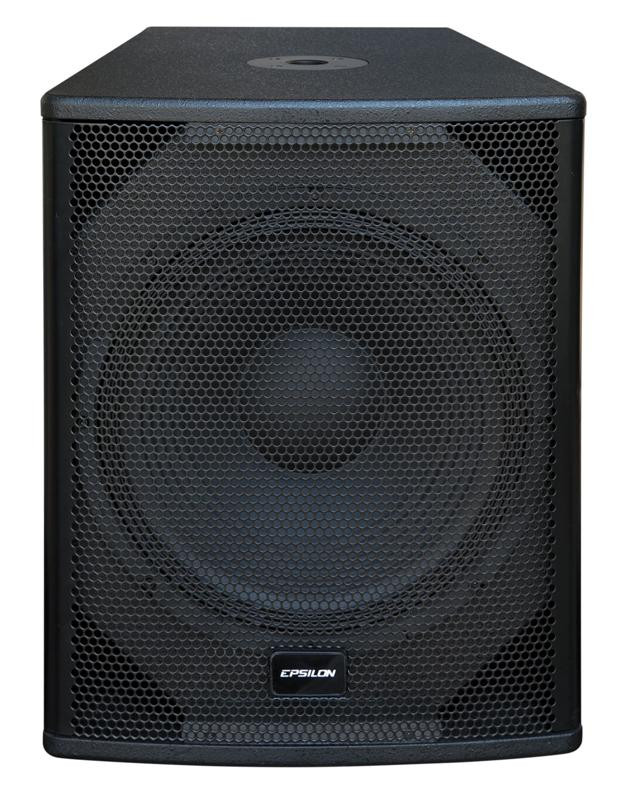

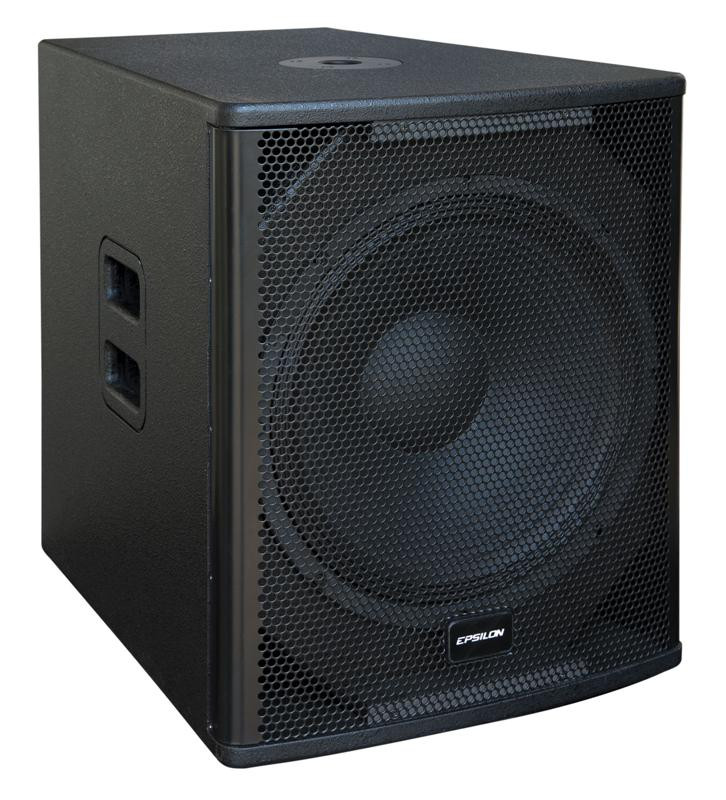

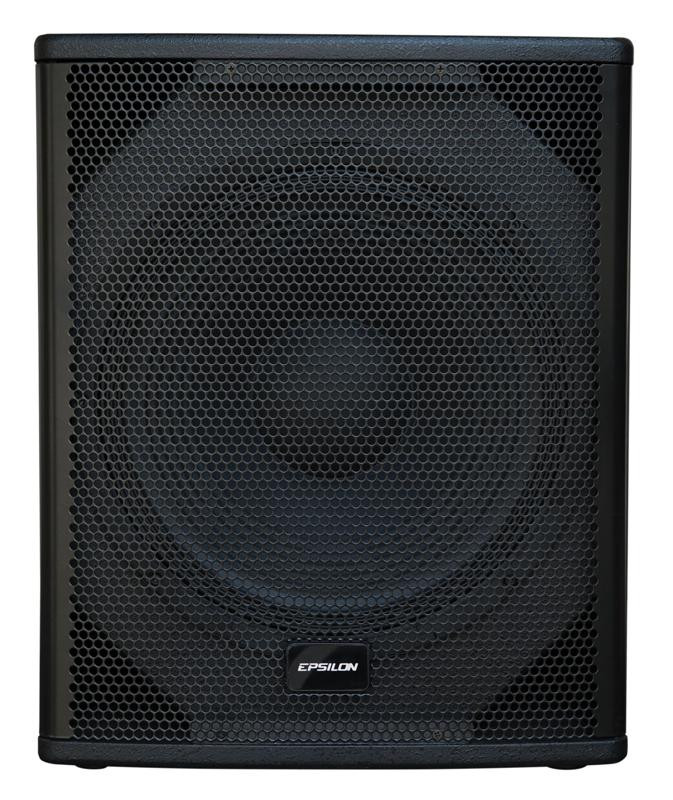

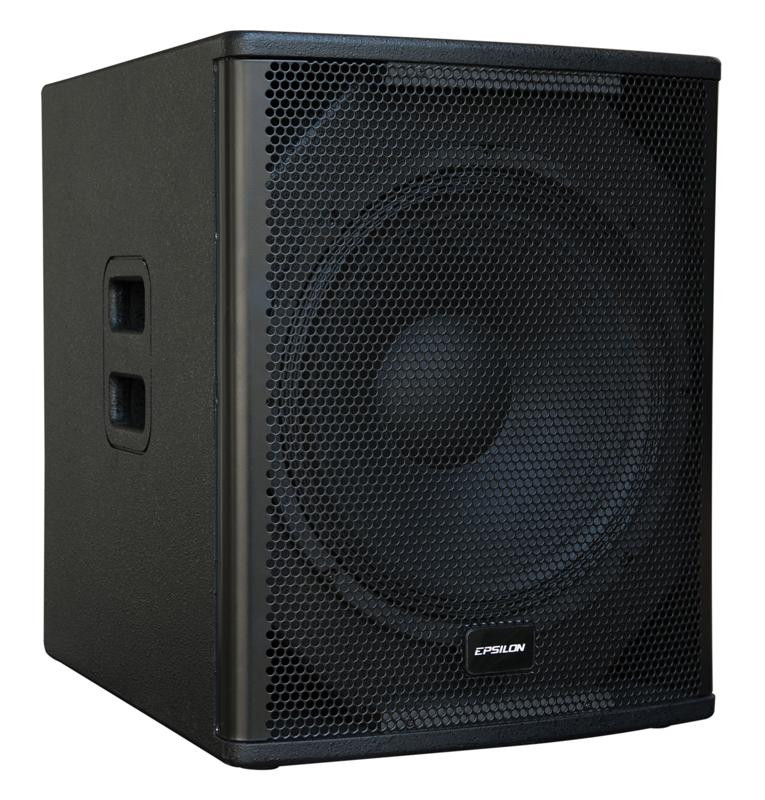

The EPSILON EPS Series Subwoofer's are a compact yet powerful 1000-watt Class-D Active Subwoofer that will set a new benchmark for compact enclosures with extraordinary power in a sleek easy-to-carry design offering low end support and versatility.
The EPS Series delivers outstanding low-frequency and a powerful punch with its 1000 watt built-in Class-D amplifier; which makes it an ideal companion for any medium sized restaurant, DJ club system, live event or rental application. Epsilon offers a 12", 15", and 18" Hi-Powered compact Subwoofer to suit your needs.
Top Features:• 1000-watt Class-D Amplifier (1000-watts, 1x15")
• 15-inch woofer in compact design wooden cabinet
• Includes Built-in 1-1/2" (38mm) pole-mounting cup
• Built-in Recessed handles for easy mobility and set-up
• 2 Combination XLR- " TRS line-level inputs
• Display LEDs : POWER illuminates when the unit is powered on, OFF disables the LED, and LIMIT mode illuminates when the clip-limiter circuit is engaged.
• Volume control and XLR balanced outputs for linking and daisy-chainable applications
• Phase adjustable knob: 0-180 db
• Rugged enclosure with textured black paint
SPECIFICATIONS:• Frequency Response(-3dB): 33HZ-1.5KHZ
• Max Peak SPL(calculated): 123dB
• Max Peak SPL(measured): 120dB
• Transducer Specifications:
• Diameter: 15in/381mm
• Voice Coil Diameter: 3.0in/76
• Cone material: Paper
• Magnet material: Ferrite
Power Amplifiers:• Rated Power: 500 watts rms 1000 watts Peak
• Rated THD: <0.02%(at 1KHz 20W)
• Cooling: Convection Extrusion
• Design: Class D
• Input / Output:
• Input Type: XLR or 1/4" Jack
• Input Impedance: 20k ohms
• Full range (Link)/High Pass output(x-over): Male XLR Balanced
• Full range output: Select Link output
• High Pass out put: Select X-over output
• X-over button: Cut low frequency, 80-180Hz
• Phase adjustable: 0-180
• Maximum input level 8 To-3dB
Electronic Crossover:• Crossover Type: 12dB/Oct. Butterworth
• Crossover Frequency: 80-180Hz
Enclosure Construction Features:• Basic Design: Asymmetrical Rectangle
• Material: Polypropylene
• Finish: Black texture finish
• Handles: One on each side
• Grill: Perforated mental with weather-resistant coating
• Wood: 18mm Plywood & 18mm MDF
Physical Properties:• Height: 20.9 in/530mm
• Width: 17.2 in/436mm
• Depth: 22.2 in/565mm
• Weight: 68.1 lb/30Kg
