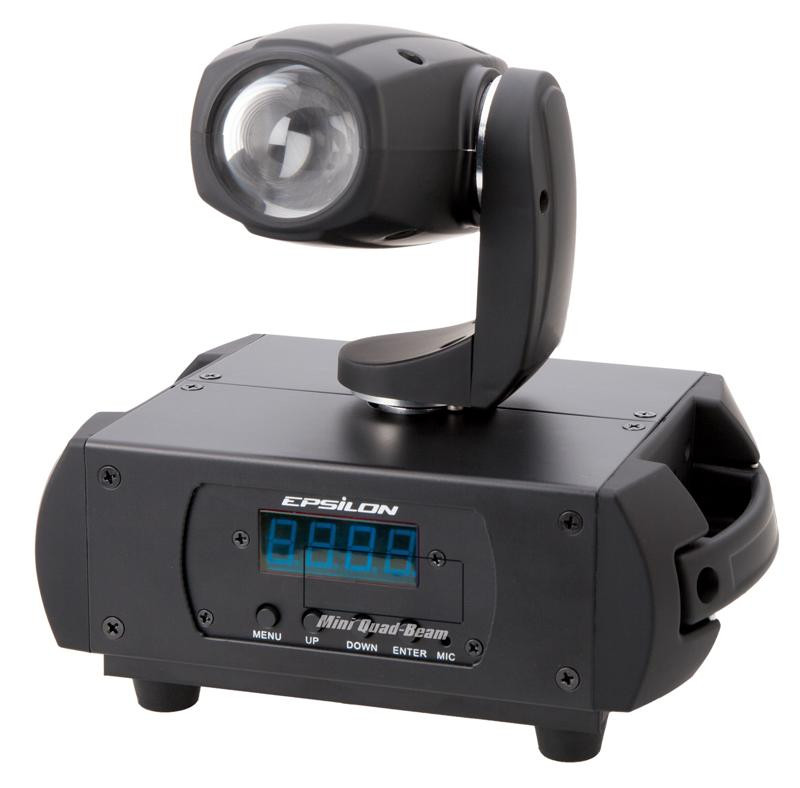

The EPSILON Mini Q-Beam is a powerful ultra compact yet fast Moving Beam Head featuring a specific 2 degree beam angle effect. This unit has a very fast and precise PAN / TILT movement and produces outstanding Beam Effects with a high quality light output which makes this fixture a great companion for small - medium installs, live events, rentals or mobile entertainment.
Mini Quad Beam comes with 4-IN-1 LED Technology which includes RED, GREEN, BLUE & WHITE colored beam effect, 8 built-in internal working shows for easy setup without the need to program. This fixture is easily controllable by DMX mode, sound activation or master-slave options and allows the user to create professional show performances in seconds.
Top Features: • 1 - 10W CREE XM-L (4-IN-1) Red, Green, Blue, White LED lamp
• 50,000 hours lifespan and low power consumption
• Very fast and precise PAN/TILT movement
• 540 PAN and 270 TILT
• Scan position memory, auto reposition after unexpected movement
• Outstanding Multi-Color BEAM effect
• Specific 2 degree optic system, 2 Degree Beam Angle
• 705LUX(R), 840LUX(G), 1040LUX(B) and 1410LUX(W)@5 Meters
• High efficiency LED shutter with variable speed
• Strobe effect with 18 flashes per second and pulse effect
• 0-100% smooth linear dimmer
• 8 built-in default programs for easy performance
• 10/12 DMX Channels USITT DMX-512
• DMX512, master-slave and sound activated controllable or auto operation
• LED display
• Efficient low noise fan cooling system
• IEC power connector IN
• 3-pin XLR connectors IN/OUT
SPECIFICATIONS: • LED Quantities: 1 - 10W 4-IN-1 LED CREE X-Lamp XM-L
• Control Signal: DMX512, master-slave and sound activated or auto operation
• Control Channel: 10/12 DMX Channels USITT DMX-512
• Power Consumption: 35W
• Input Voltage: AC90-260V 50/60Hz
• Dimensions:
• 5.6"(D)*6.46"(W)*10.18" (H)
• 150(D)*230(W)*240(H) mm
• Packing Dimensions:
• 8.85"(D)*10.62"(W)*11.02"
• 295(D)*315(W)*240(H) mm
• Net Weight: 5.51 lbs / 2.5kg
• Gross Weight: 7.72 lbs / 3.5kg
