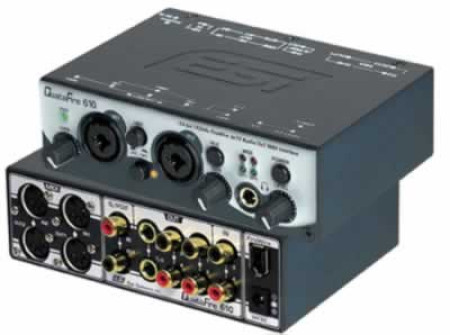

QuataFire 610 is an ultra-compact, FireWire compatible audio/MIDI recording interface for laptop and desktop computers.
QuataFire 610 offers top quality 24-bit 192 kHz output and 96 kHz input audio performance and its 6-in/10-out configuration offers great flexibility whether you're recording, or routing discrete outputs to a mixer. QuataFire 610 features MIC/line inputs with built-in preamps and +48V phantom power, individual gain controls, headphone output with volume control, 32 channel MIDI I/O, and S/PDIF digital I/O. It also allows you to monitor your inputs through the internal digital mixer for Direct input monitoring. QuataFire 610 can be completely FireWire bus-powered for ultimate mobile applications.
FRONT PANEL: 2 combo (XLR & 1/4 inch) jacks for inputs 1&2, Mic/Line switch, Instrument (Hi-Z) switch, +48V phantom power switch, Input gain control, headphone output with headphone volume control.
REAR PANEL: RCA type connectors for analog inputs 3&4 and outputs 1-4, S/PDIF coaxial I/O, 1/4 inch jacks for analog outputs 5-8, MIDI 2 in 2 out.
QuataFire 610 works under Windows XP (Service Pack 1 is required) and Mac OS X (version 10.3.6 and higher). It integrates easily into all common professional audio applications under Windows XP and Mac OS X.
TECHNICAL SPECIFICATIONS:• 4 channel analog input (24-bit/96kHz)
• 8 channel analog output (supports up to 24-bit/192kHz)
• 24-bit 96kHz 2 channel S/PDIF (coaxial) digital I/O
• 2 Mic/Inst Preamps with +48V Phantom Power
• 2 port MIDI I/O (32 MIDI channels)
• Headphone Amp with volume control
• Powered by FireWire bus or external power supply
• supports WDM, MME, CoreAudio and ASIO 2.0
• Ableton Live ESI software for PC included
• Windows XP Service Pack 1 required
• Mac OS X 10.3.6 and higher version required
Ultimate Audio Tools: • Live ESI by ableton : Real time audio sequencing Instrument,
• Tassman ESI by AAS : Sound synthesis studio
• VST Plug ins and VST instruments:
- - Khaerhus Audio -the classic series (7 complete VST plug ins)
- - Audio Nerdz- Delay Lama
- - MDA-VST - Piano, ePiano
- - Sinus Freeverb Too
- - Silverspike RoomMachine 844
- - Abyss Cushion, Exciter, Filter
- - PSP audioware PSP Piano Verb
- - CSI C FFT, C Tuner, C Super Stereo
- - Steinberg Leveler, Tools One
- - Externalizer, Stereo Expander
- - Voxengo Stereo Touch
- - Supaphaser
