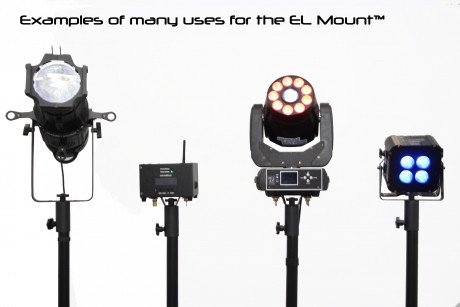

The EL Mount' was designed for use with tripod or weighted base and pole for mounting a light fixture or other lighting related device such as EchoMATE' for elevated wireless DMX transmission of the signal strength. Save $$$ when you buy them in this 4-Pack!
Features & Technical Specifications:• Easily Mount Lighting fixtures to the top of tripod or weighted pipe and base
• Weight: 0.75 lb (3/4 lb)
• Fits Tripod Diameter 1.250" - 1.620"
• Always use safe mounting pratice with weight mount to base width and weight ratio
• Maximum mounted light/fixture weight 22 lbs
• Steel construction powder coated black coating
• Knob Threads M8x1.25
• Dimension:
Overall Lenth 4.75"
Overall Width 3"
Pipe Outer Diameter: 1.875"
Pipe Inner Diameter: 1.625"
Each EL Mount includes:
• (1) EL Mount pipe device with threaded top and threaded side for set screw knob
• (1) Threaded Knob for top
• (1) Threaded knob for side set screw
• (2) Rubber Washers for set screw and top knob
