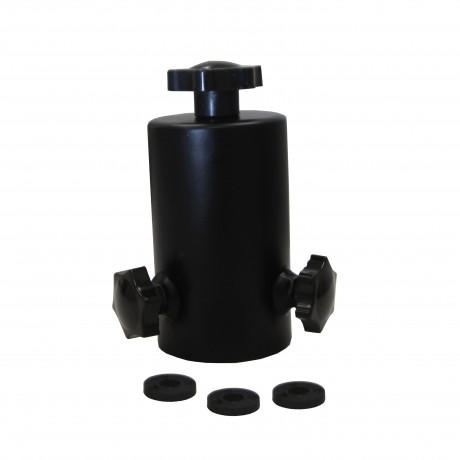

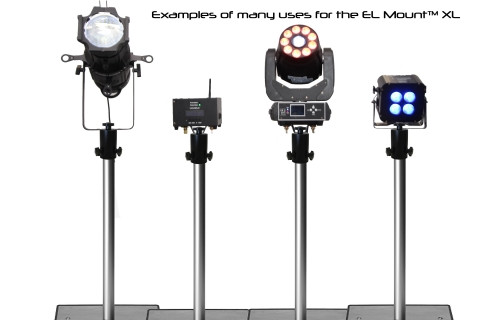

The EL Mount' XL is like our original, however a larger design for use with larger mounting poles such as drape Pipe or Sch 40 Pipe with weighted base and pole for mounting a light fixture or other lighting related device used to mount items such as the EchoMATE, CUBEecho MK2, Small compact Moving heads such as StellarSpotFX, LED Gobo Projector Ultra120 DMX or any other light. The double set screws on the EL Mount XL allows to secure to pole to hold secure from rotating.
The EL Mount' XL was designed for use with tripod or weighted base and pole for mounting a light fixture or other lighting related device such as EchoMATE' for elevated wireless DMX transmission of the signal strength.
Features & Technical Specifications:• Easily Mount Lighting fixtures to the top larger size poles or weighted pipe and base
• Weight: 0.75 lb (3/4 lb)
• Fits Pipe Diameter 1.80" - 2.10"
• Always use safe mounting pratice with weight mount to base width and weight ratio
• Maximum mounted light/fixture weight 32 lbs
• Steel construction powder coated black coating
• Knob Threads M8x1.25
• Dimension:
Overall Lenth 4.75"
Overall Width 3"
Pipe Outer Diameter: 2.39"
Pipe Inner Diameter: 2.10"
What is included:

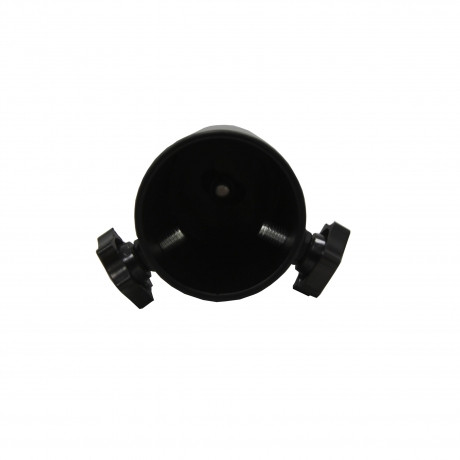

(1) EL Mount pipe device with threaded top and threaded side for set screw knob
(1) Threaded Knob for top Screw .50" Length Threads
(2) Threaded knob for side set screw .75" Length Threads
(3) Rubber Washers for set screw and top knob
