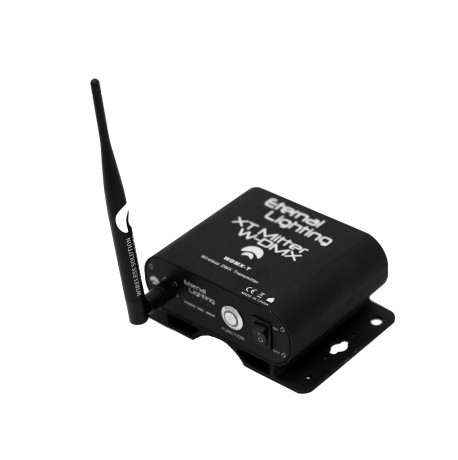

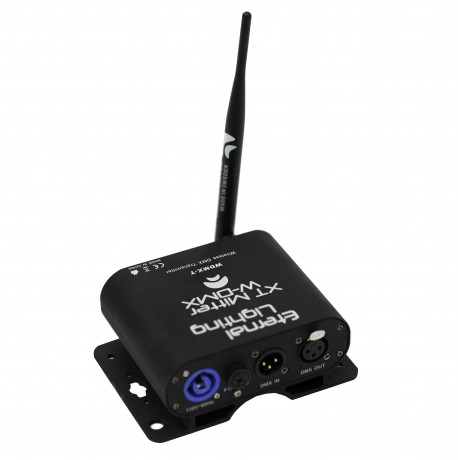

XT Mitter W-DMX is a Wireless DMX Transmitter designed to work with any fixture from Eternal Lighting with the W-DMX Receivers installed in them. This could be from Eternal Lighting or any other manufacture that uses the W-DMX Boards. This XT Mitter W-DMX is a compact W-DMX Tranmitter using the latest 5G board for superior quality of tramission to your lighting using W-DMX.
• Voltage 110/230 50/60Hz
• Power: 6 Watts
• Wireless: 2.4G Wireless Solutions W-DMX 5G
• 3-Pin DMX
• Weight: 1kg. 2.2 lbs
Setting Up:1. One transmitter, multi receivers
Turn all power switches on, all DMX indicator(s) should be off (If some DMX indicator is on or flash, press & hold the light's FUNCTION button until it turns off); then press the transmitter's FUNCTION button for one second, all the receivers will flash fast; then all get matched.
2. Multi transmitters, multi receivers (e.g. 3 pair transmitter & receiver named A B C) have all power switches off.
1) A pair power on, then follow the step 1 to get themmatched.
2) B pair power on, then follow the step 1 to get themmatched.
3) C pair power on, then follow the step 1 to get themmatched.
Disconnect the wireless transmitter1. Press and hold the transmitter's FUNCTION button for 5 seconds, the transmitter will disconnect with all receivers. The DMX indicators on receivers will beoff.
Building a DMX-chain:Connect the DMX-output of the first fixture in the DMX-chain with the DMX-input of the next fixture. Always connect one output with the input of the next fixture until all fixtures are connected.
Caution: At the last fixture, the DMX-cable has to be terminated with a terminator. Solder a 120 ? resistor between Signal () and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture.
Only use a stereo-shielded cable and 3-pin XLR-plugs and connectors in order to connect the controller with the fixture or one fixture with another.
