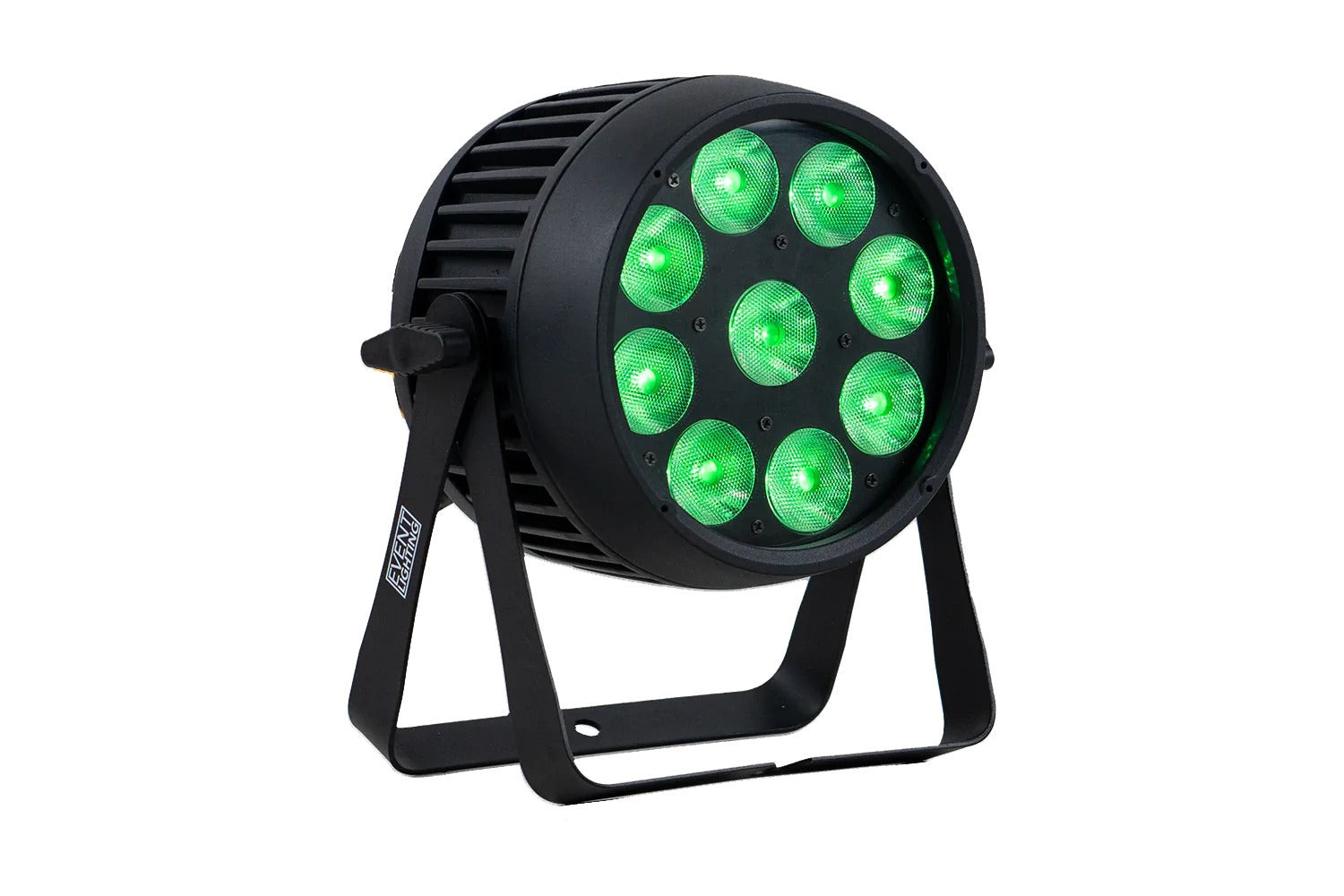

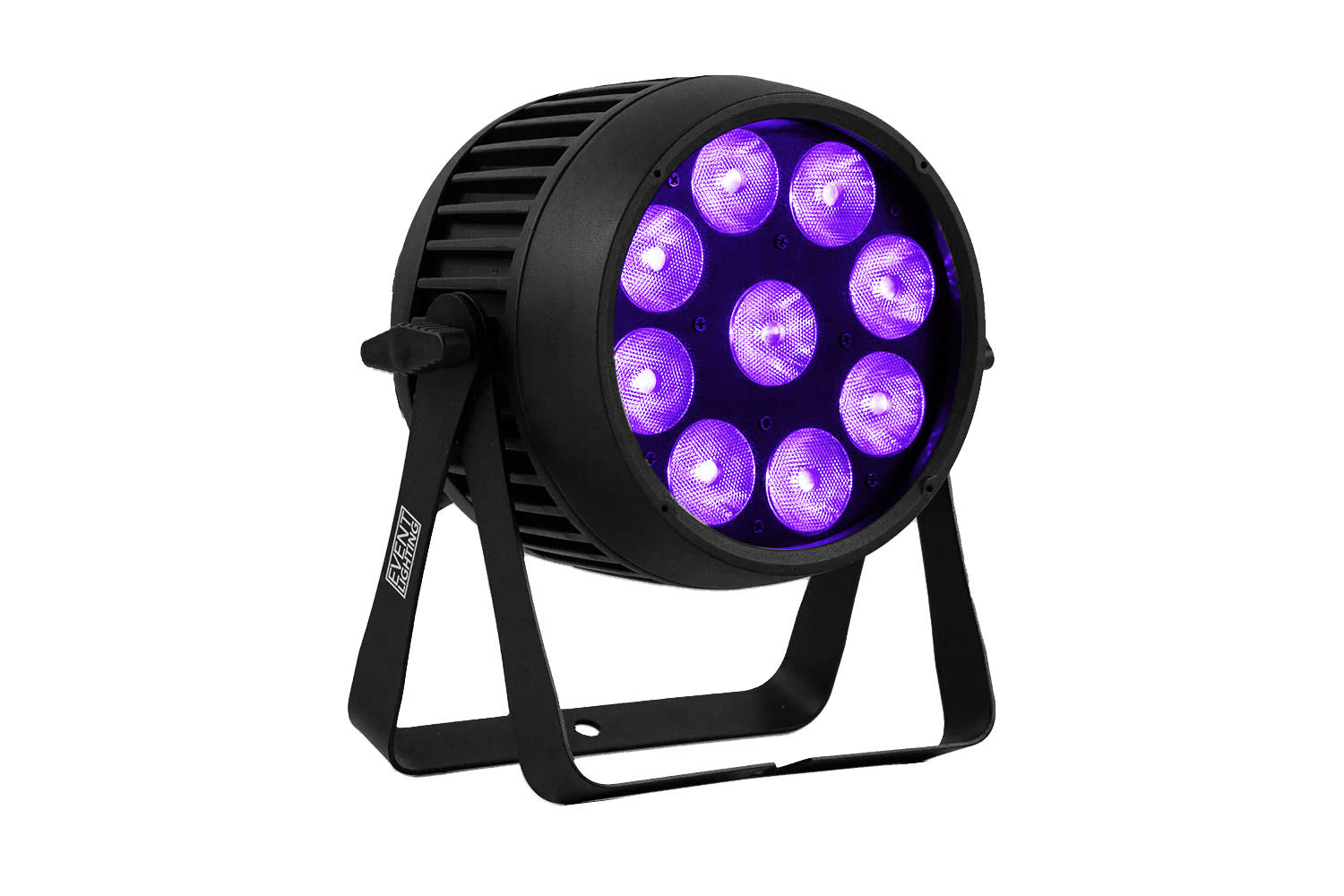

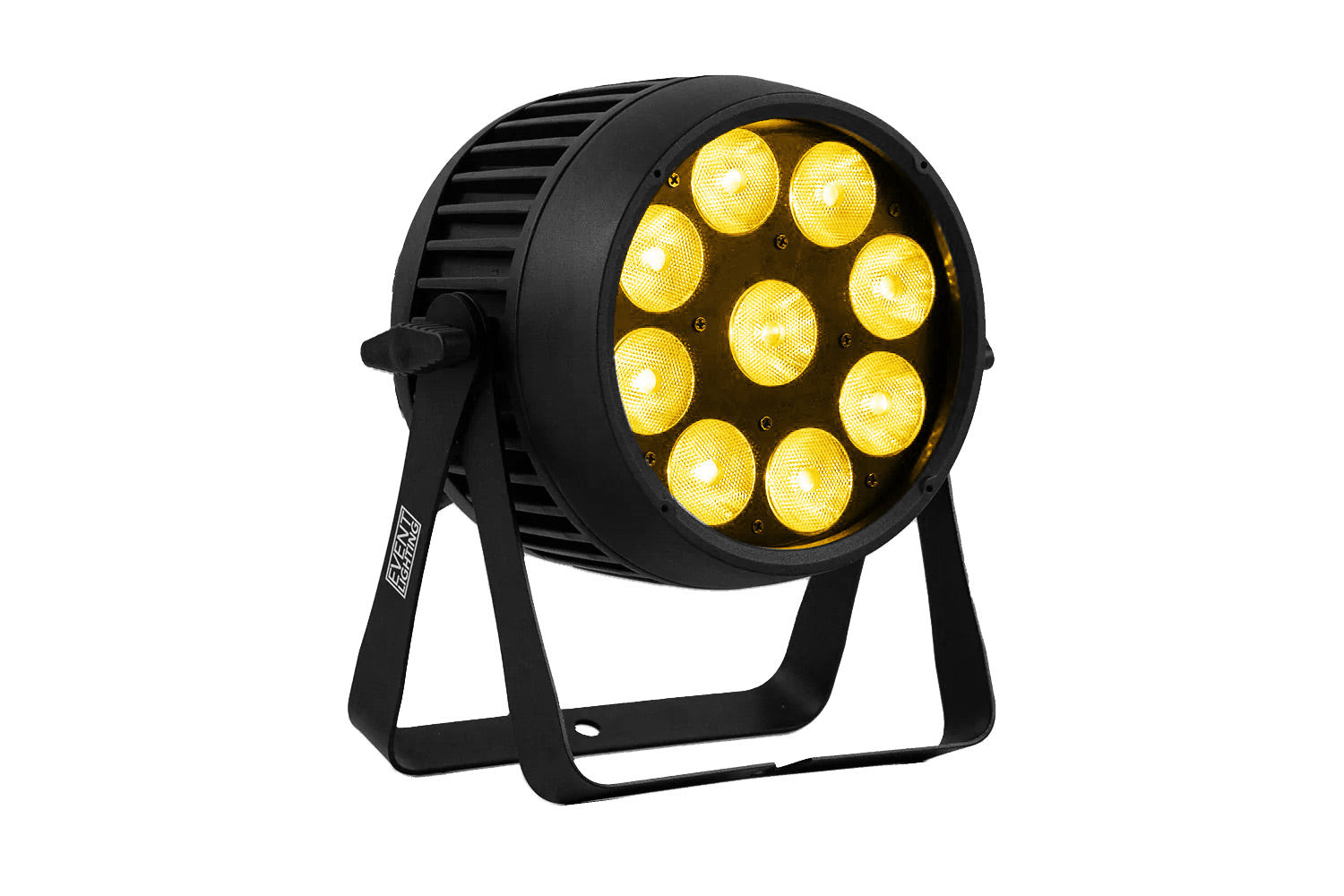

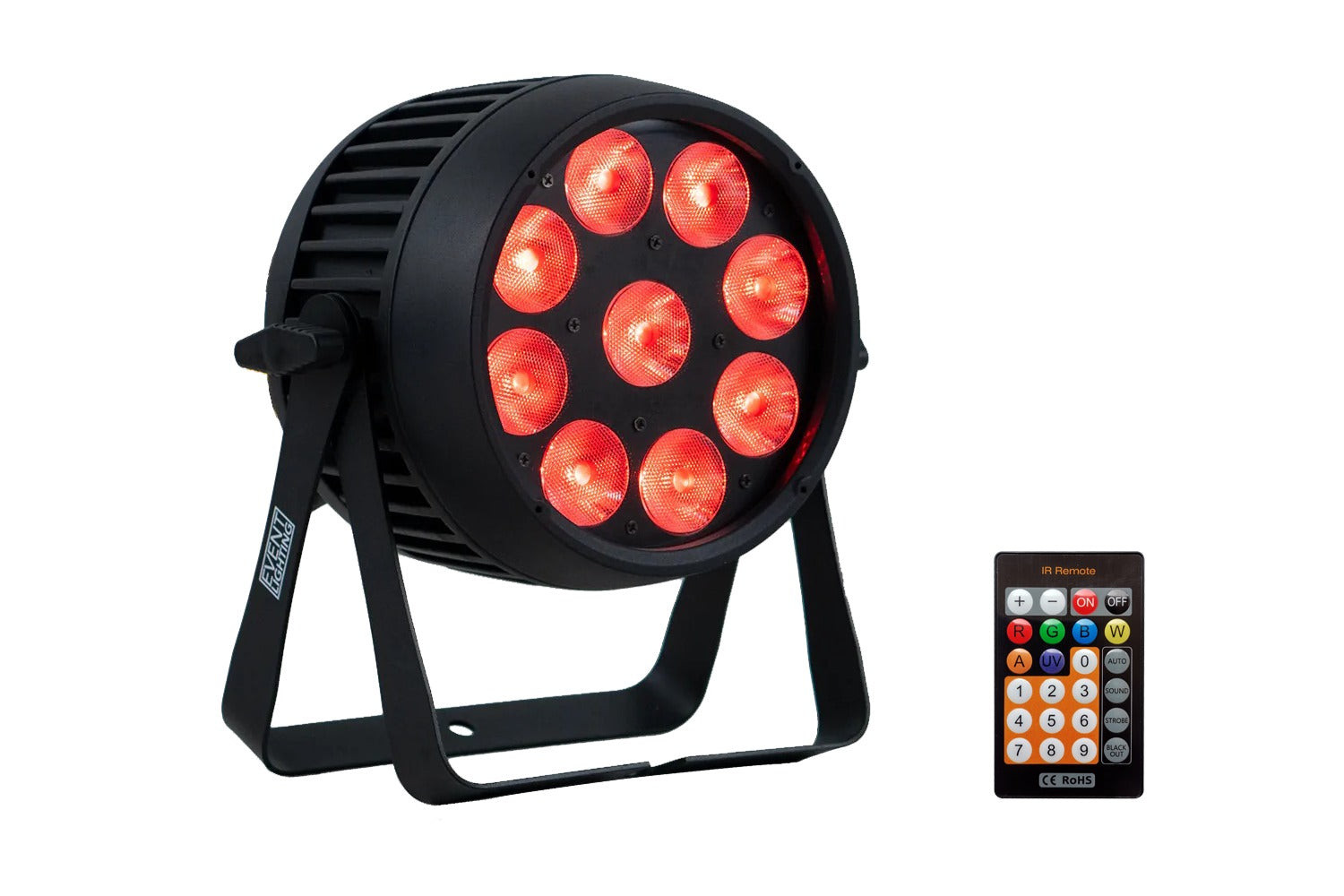

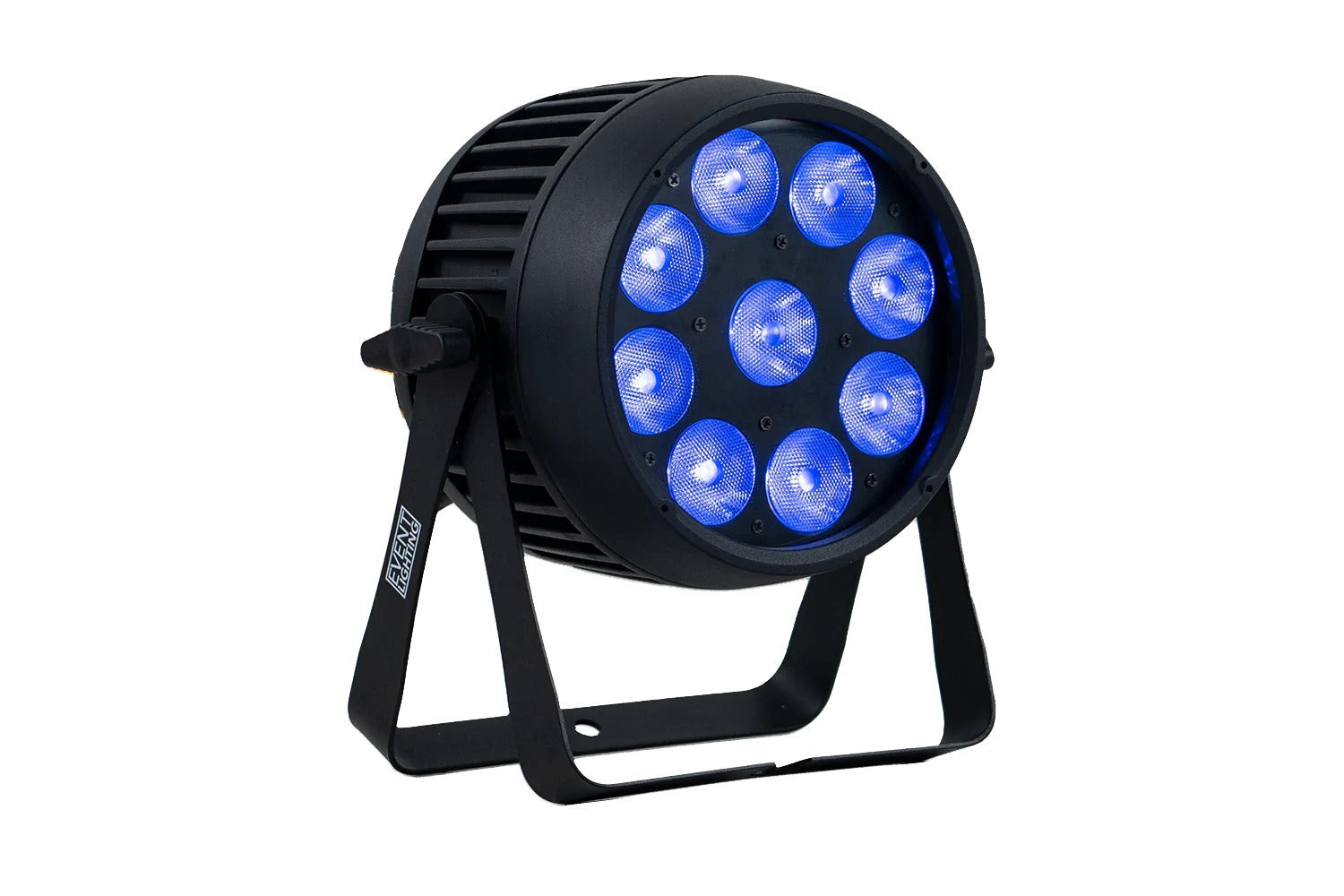

The PAR9X12B-IP is a mid-sized outdoor rated battery fixture, featuring 9 x 12W RGBWAU LEDs in a die cast aluminium housing, a 25 beam angle, WDMX on-board and IR control.
VIDEO

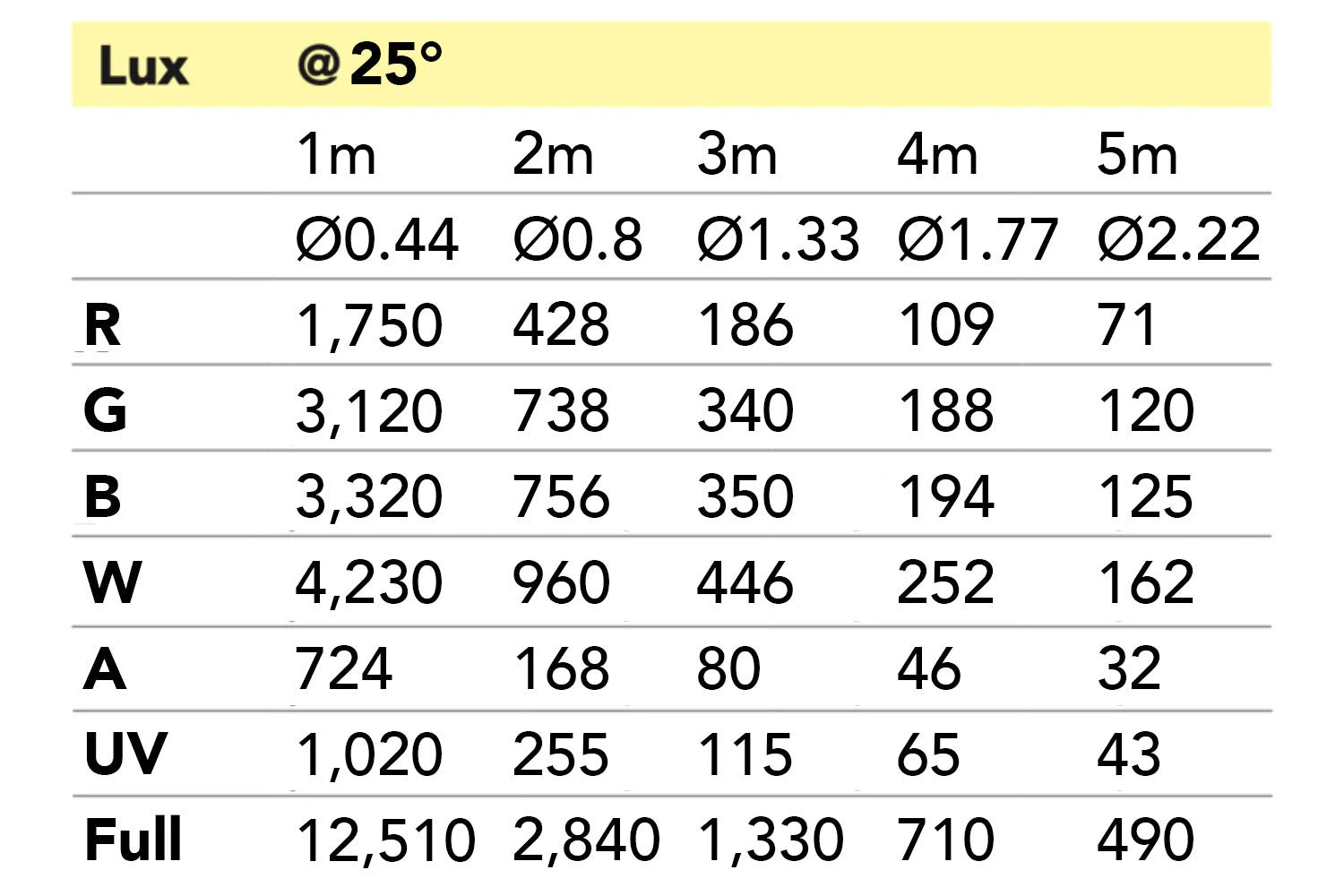

Photometrics • Light Source: 9 x 12W RGBWAU LEDs
• Beam Angle: 25
• LED Life: 50,000 hours
Effects • Dimming: 0100%
Power • Input Voltages: 100V240V AC, 50/60Hz, 72W
• Power Connection: Seetronic Outdoor True1 in/out
• Battery operating time:
- 16 hours (one colour mode)
- 8 hours (colour fading mode)
Control • Operational Modes: DMX, manual, auto, sound active, master/slave, Wireless DMX, IR Remote Control

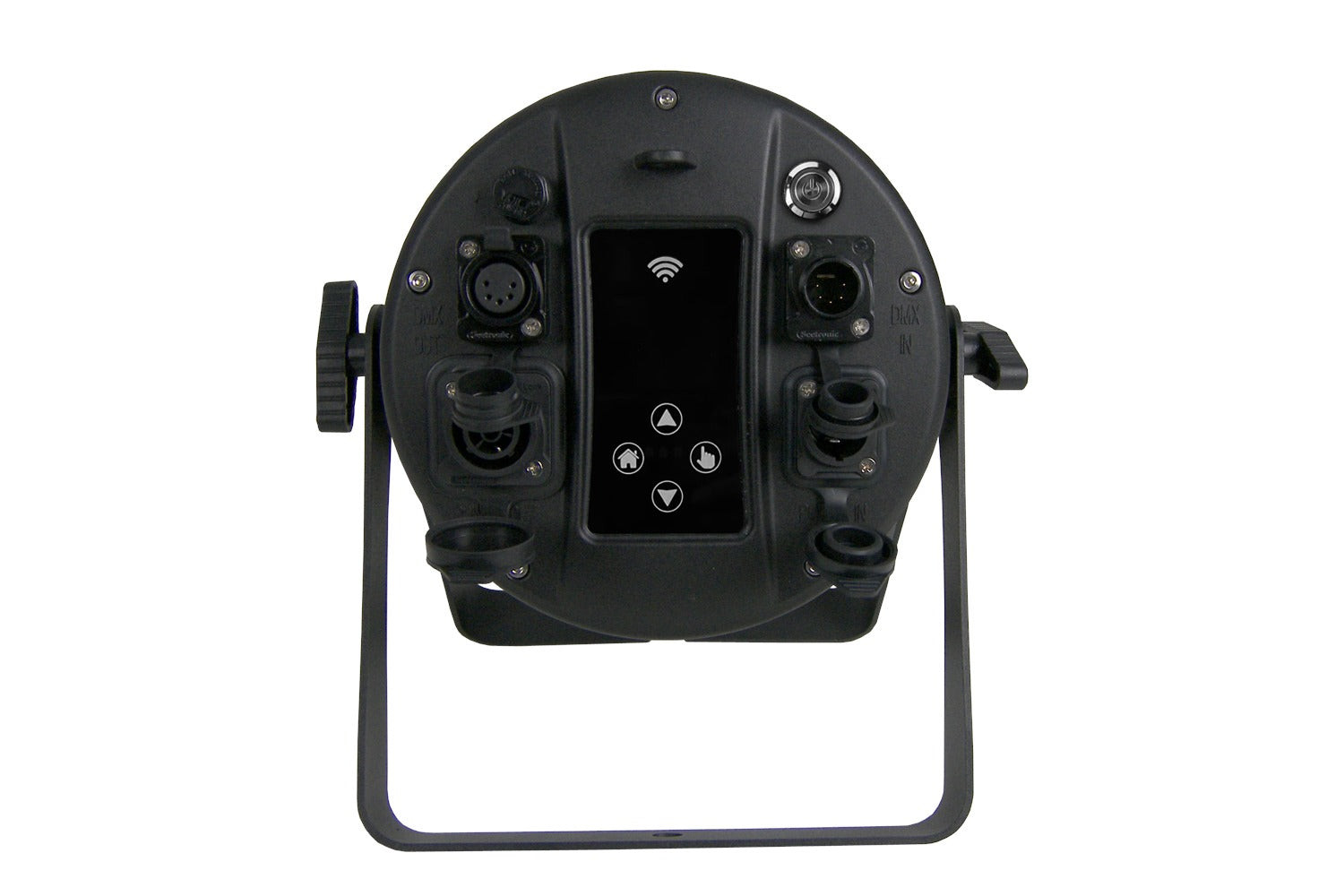

• Display: OLED touch display with glass buttons
• Control Protocol: DMX512, Wireless DMX (W-DMX)
• DMX Channels: 6 / 10
• DMX Interface: Seetronic 5 Pin Outdoor DMX in/out
Housing • Housing Materials: Die-cast aluminium, matte black finish
• IP Rating: IP65
• Cooling: Fanless Cooling
• Dimensions: 10.55" x 7.68" x 9.65" (268 x 195 x 245mm)
• Weight: 10.57 lbs (4.75kg)

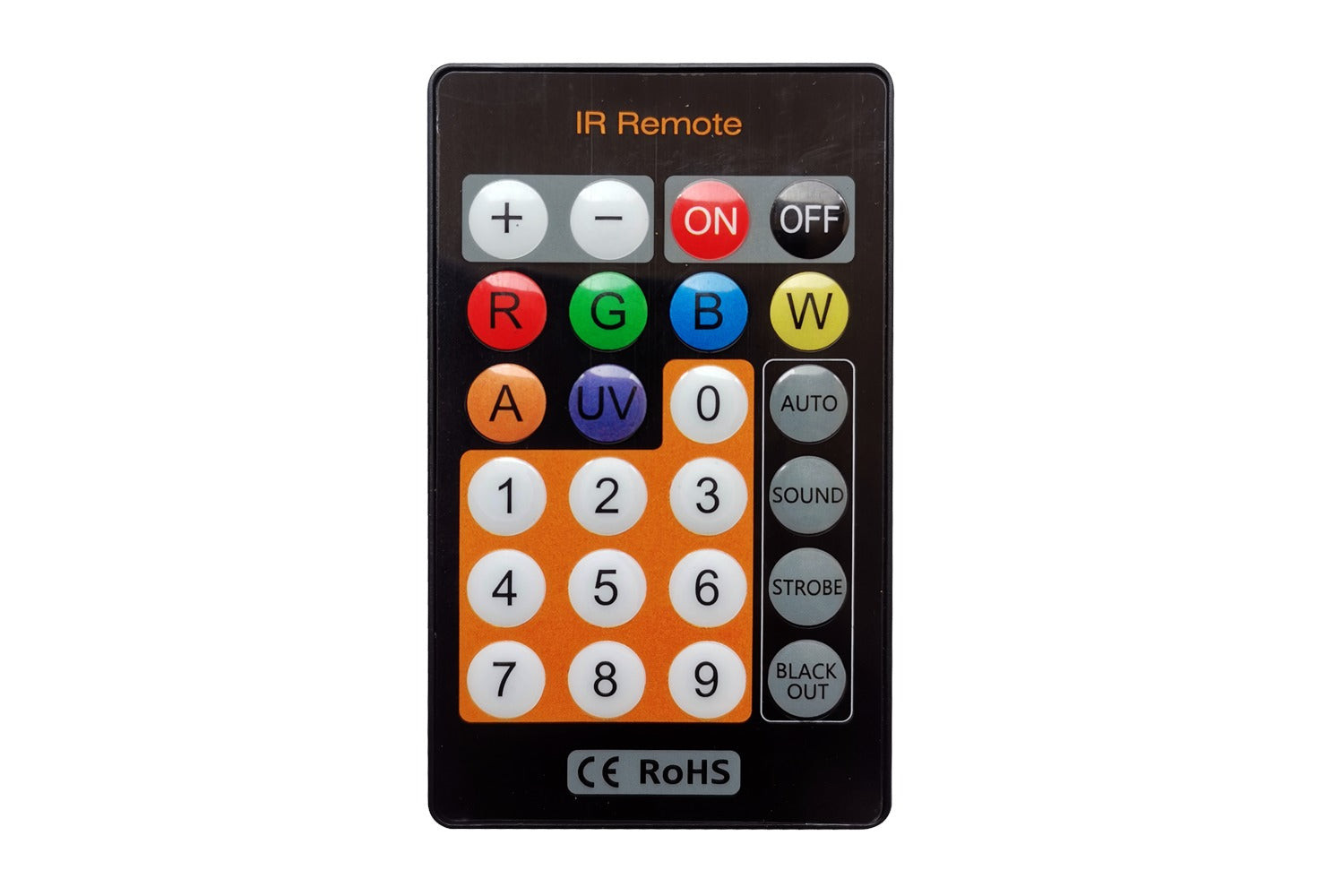

Miscellaneous • Accessories Included: 1M Seetronic Outdoor Powercon, 1M Seetronic Outdoor DMX Cable, IR Remote Controller
• Optional road case: PAR9X12OBC - charging case, fits 6 Units.
IMPORTANT: Only use the provided Outdoor DMX cable in the device's DMX out port. The use of other cables will cause the cable to become stuck in the port, requiring the unit to be repaired.
