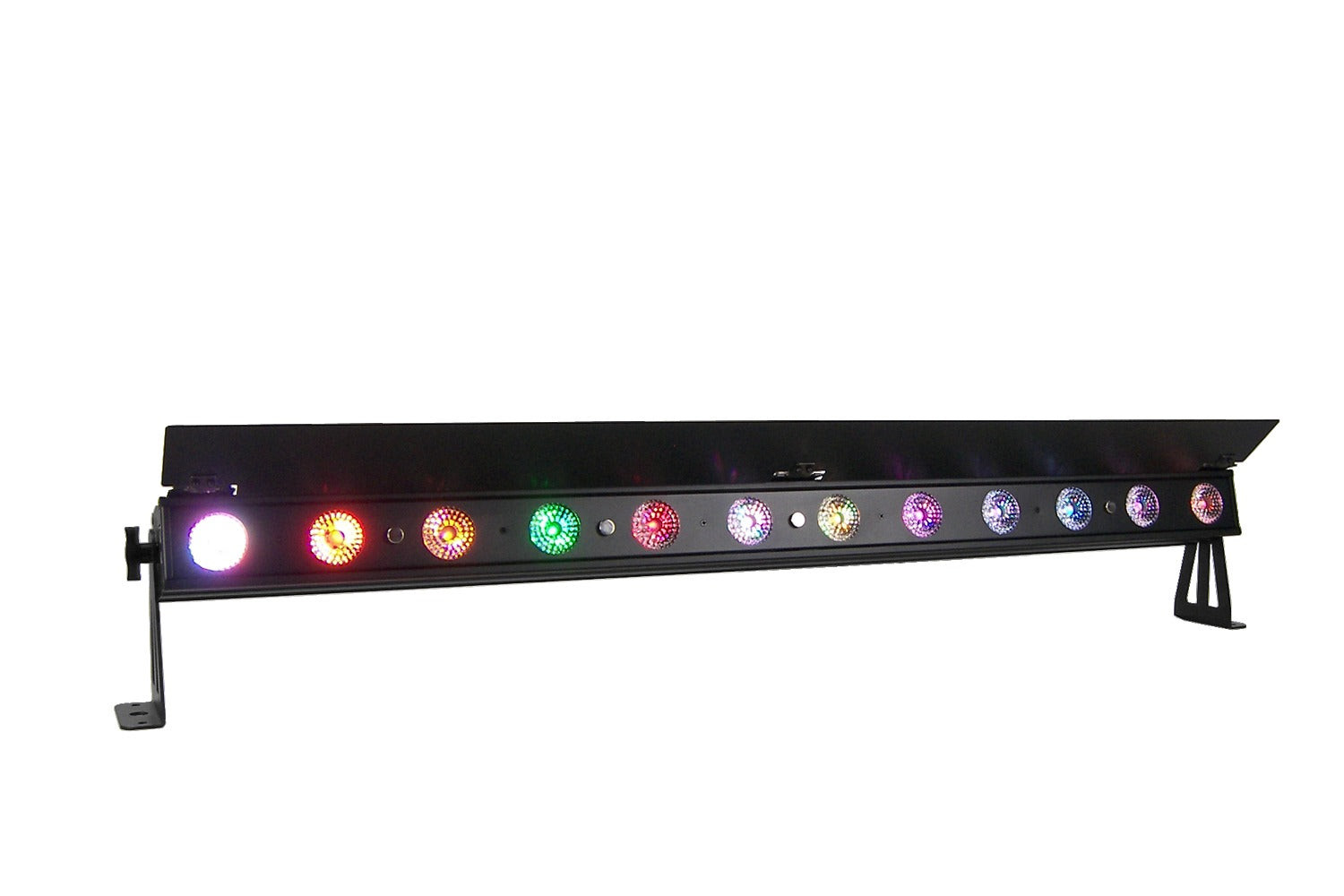

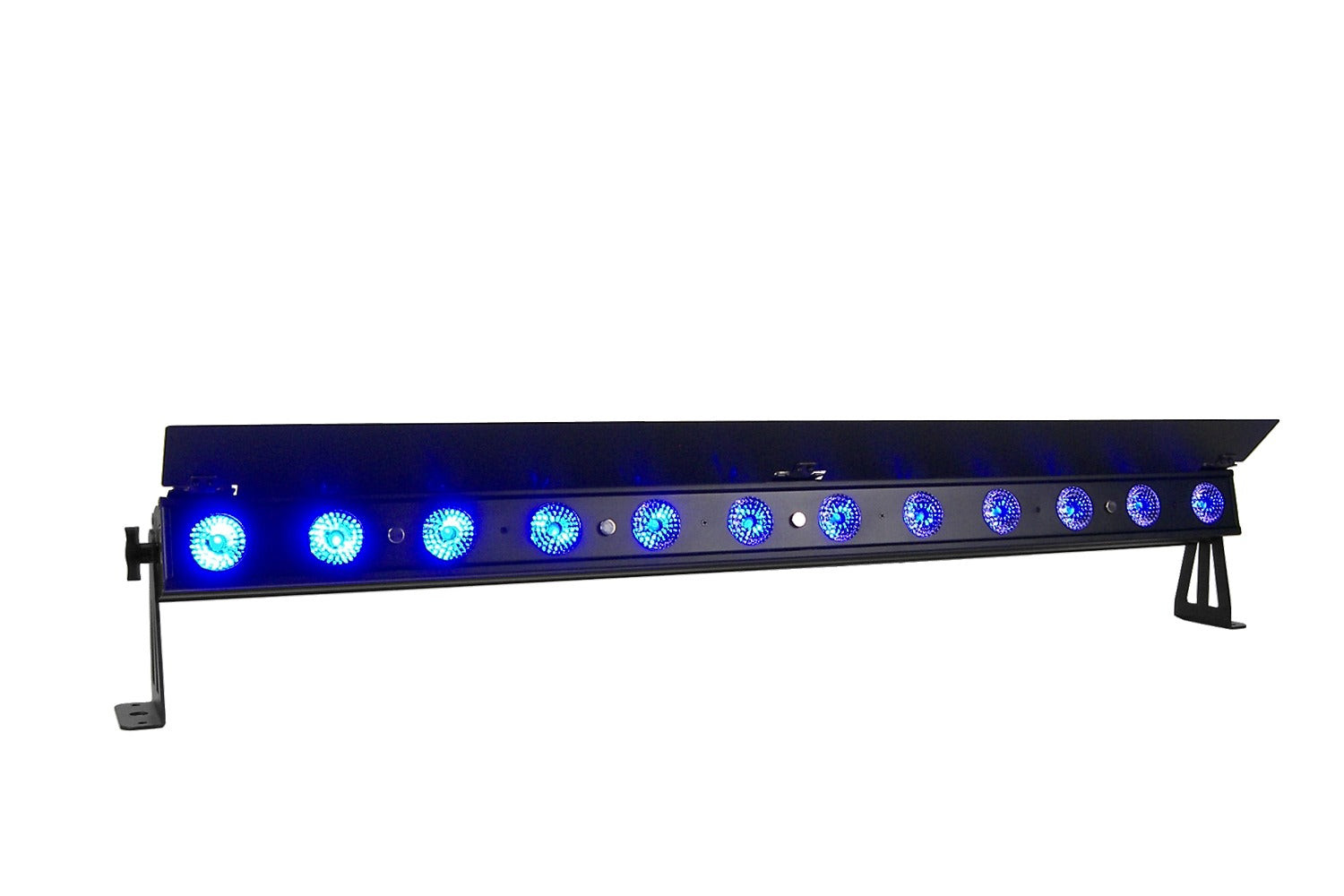

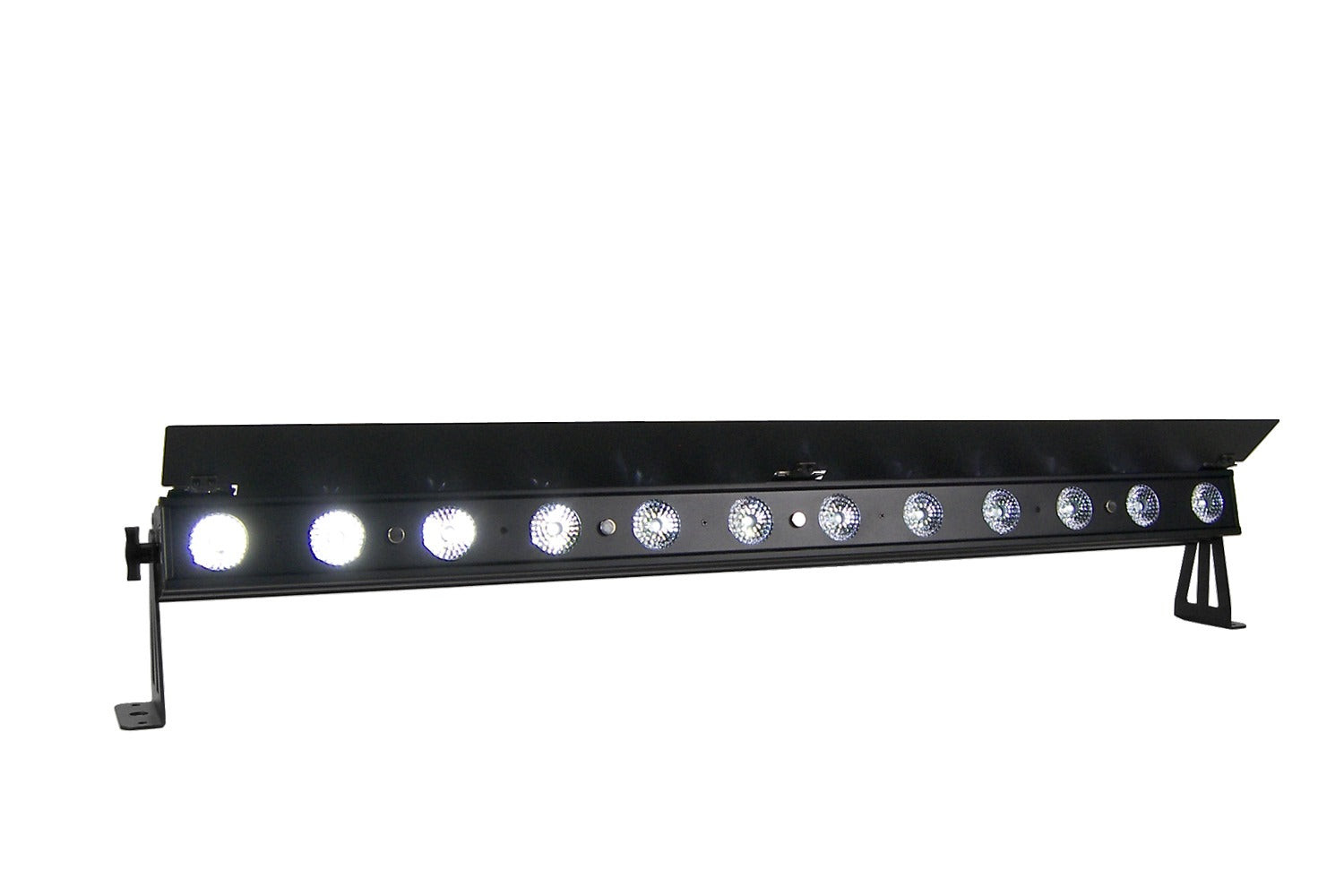

The Event Lighting PIXBAR12H is a brilliant lighting companion for any event or production. Featuring 12 x 12W RGBWAU LEDs, this pixel bar delivers a stunning array of vibrant colours and dynamic effects. With a beam angle of 30 (optional 55), you can precisely tailor the coverage to suit any venue or stage.
VIDEO
Experience dazzling illumination with an output of 2,050 lux at 2 meters when RGBWAU is in full swing. With 4 x 16-bit Dimming Curves and adjustable strobe settings from 1 to 30Hz, you have complete control over your lighting effects. Seamlessly switch between operational modes including DMX, manual, auto, and sound active, all accessible through the intuitive 4-button LCD control panel.
Crafted with durability in mind, the PIXBAR12H features a sturdy aluminium housing with a sleek matte black finish. The included barndoor and frost filter enhance versatility, allowing for precise light shaping and diffusion. With True1 in/out and 3/5 Pin DMX in/out, installation is quick and hassle-free. Equipped with fanless cooling and a compact design, this pixel bar ensures reliability and consistent performance in any environment.
Photometrics • Light Source: 12 x 12W RGBWAU LEDs
• Beam Angle: 30 (optional: 55)
• Output: 2,050 lux @ 2m RGBWAU full on
• PWM: 12,000Hz
• LED Life: 50,000 hours
Effects • Dimming: 4 x 16-bit Dimming Curves
• Strobe: 130Hz
Power • Input Voltages: 100240V AC, 50/60Hz, 150W
• Power Connection: True1 in/out
Control • Operation Modes: DMX, manual, auto, sound active, master/slave, multi fixture chase
• Display: 4-button LCD control panel
• Control Protocol: DMX512
• DMX Channels: 3 / 4 / 4A / 8 / 12 / 24 / 72 / 74

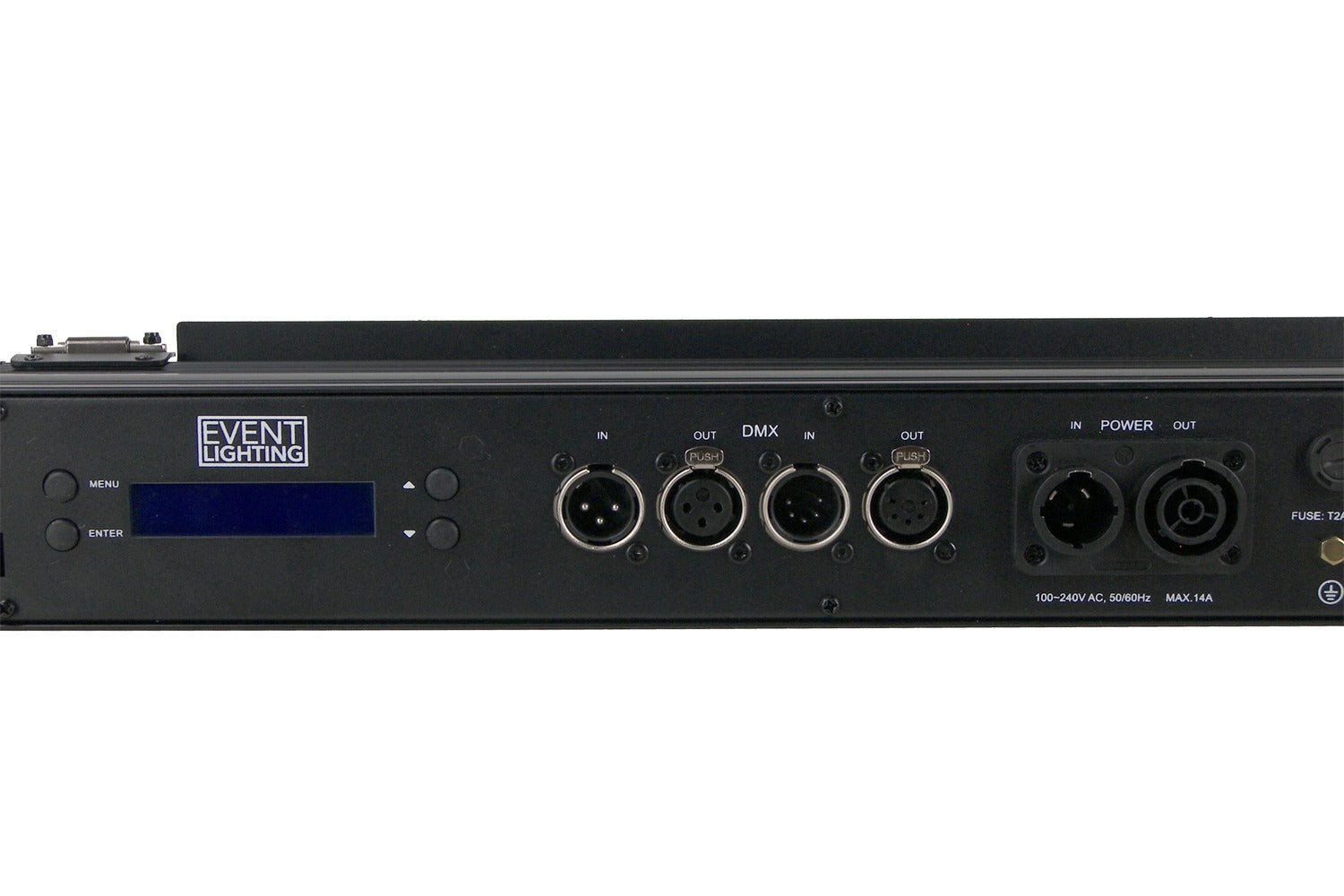

• Control Interface: 3-pin and 5-pin XLR in/out
• Software Upgrade via DMX: Yes
Housing • Housing Materials: Aluminium, matte black finish
• Barndoor: included
• Frost filter: included
• Cooling: Fanless Cooling
• Dimension: 1050 x 165 x 80mm
• Net Weight: 4.5kg (9.92 lbs)
