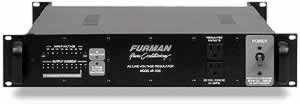

Furman AR1230 AC Line Voltage Regulator

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

furman ar-1230
Images may show accessories or configurations not packaged with this item.
The 30 amp AR-1230 AC Line Voltage Regulator is intended to protect audio, video, computer and other electronic equipment from problems caused by AC line voltage irregularities-sags, brownouts, or overvoltages that can cause sensitive digital equipment to malfunction, or, in extreme cases, to sustain damage.

• Delivers a stable 120 5 VAC whenever the input AC line voltage is between 97V and 141V
• Output capacity 30 amps
• One regulated, conditioned 30A twistlock outlet and six 15A outlets on the rear, plus two 15A outlets on the front
• Eight-tap toroidal autoformer
• 10-LED bargraph Input Voltage meter
• 10-LED bargraph Output Current meter
• Extreme overvoltage/undervoltage causes instant shutdown, protecting equipment
• Extreme Voltage Shutdown indicator LED
• Output In Regulation indicator
• Low stray magnetic field leakage
• Rear panel fan provides cooling for continuous operation

• Current Rating:30 amperes for input voltages of 124 or higher (104 or higher for AR-1230J set for 100V operation); derate at 150 mA per volt to a minimum of 24A
• "In Regulation" Ranges: Provides regulation 5V in 120V mode for inputs of 97 to 141V, 60 Hz; (AR-1230J only: also provides regulation + or -4V in 100V mode for inputs of 80 to 122V, 50/60 Hz)
• Shutdown Range: 120V mode: Below 75V or above 150V. (AR-1230J only: 100V mode: Below 65V or above 135V)
• Inlet: One 30A NEMA L14-30P twistlock connector
• Outlets: One 30A NEMA L14-30R twistlock connector, six 15A outlets on rear panel and two 15A outlets on front panel
• Voltmeter Accuracy: + or -5V
• Spike Protection Modes: Line to neutral, neutral to ground, line to ground
• Spike Clamping Voltage: Initial turn-on at 200V; TVSS rating of 400 volts peak at 500 A, L-N, N-G, L-G (tested to UL-1449)
• Response Time: 1 nanosecond
• Maximum Surge Current: 6,500 amps (8 x 20 ms pulse)
• Maximum Spike Energy: 80 joules per node; 240 joules total
• Noise Attenuation: Differential mode: Greater than 40 dB. Transverse and common modes: Greater than 60 dB, 1-200 MHz
• Dimensions: 3.5" H x 19" W x 17" D (8.9 x 48.3 x 43.2 cm)
• Weight: 35 lbs. (16 kg)
