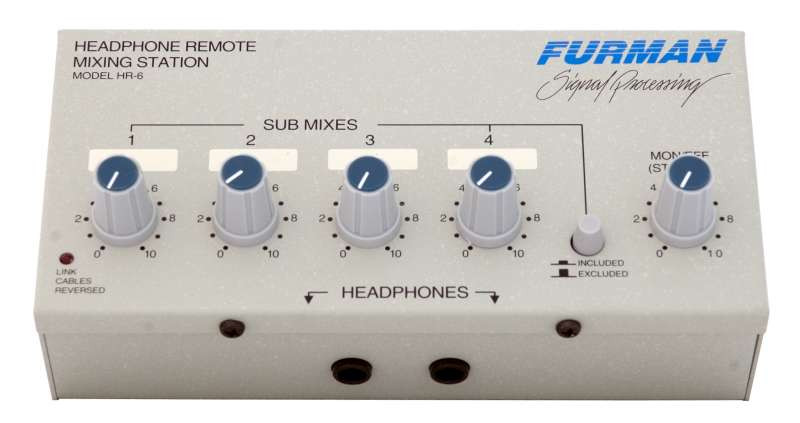

The Furman HR-6 Audio Distribution System offers a great-sounding, cost effective and flexible way to provide custom mixes for up to sixteen people in recording and live sound environments.

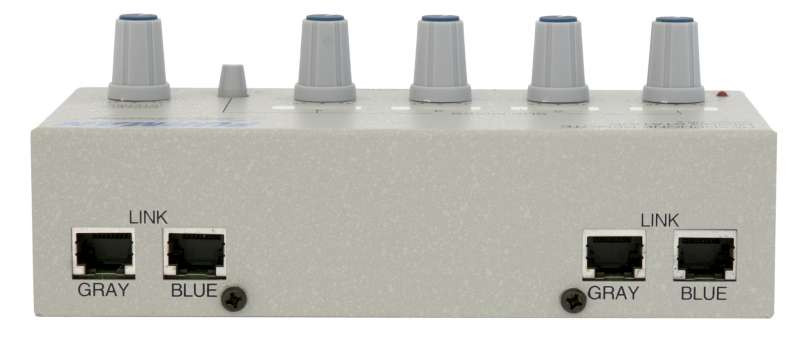

FEATURES:• Every performer in a studio or live sound setting can have a personalized mix without any adjustments at the board • Perfect for use as a headphone system in the studio, plus drives powered monitors in live sound applications • HR-6 remote mixer provides each musician with five volume controls: four monaural (for mixer channels or busses), plus one for an overall stereo mix or a stereo effects return • HDS-6 to HR-6 linking cables are included with the HR-6, as is a universal mic stand clampSPECIFICATIONS:INPUTS:• Input Impedance: 20K ohms • Sensitivity: Variable, -10 to +4 dBu for rated output.(adjustable with trimpot on each input) OUTPUTS: • Power Output: 400 mW at 32 ohms (200 mW at 600 ohms, 500 mW at 100 ohms) from 20 Hz to 20 KHz. CONNECTORS: • Inputs: RJ-45 jacks. • Output: 1/4" stereo headphone jack. • HR-6 Connecting Cable: 2 each: 10Base-T UTP Ethernet computer cables, Cat. 3 or better. GENERAL:• Distortion: 0.008% THD at full rated power at 1 KHz; 0.05% THD 20Hz to 20 KHz. • Dynamic Range: Greater than 96 dB • Freq. Response: +0, -1 dB from 20 Hz to 20 KHz, 400 mW output • Power Requirement: 120 VAC, 60 Hz, 20 watts MECHANICAL:• HR-6 Dimensions: 2.5" H x 6.75"W x 3.5" D. • HR-6 Weight: 1.25 lbs. (.58 kg.)
