The MiniPort Series Power Relays are remotely controlled relays that switch 120 VAC. The MP-15 handles 15A; the MP-20, 20A; and the MP-30, 30A. Control is via a full-size terminal strip that allows remote control via safe, inexpensive, low voltage Class 2 control wiring. The MP-15 and MP-20 are UL and C/UL listed; the MP-30 is pending...
MiniPorts can be controlled from a remote location with either maintained or momentary contact switches such as the Furman RS-1 or RS-2 system control panels. For single switch locations, use the RS-1. When the system needs to be controlled from more than one location, use the RS-2.
Multiple MiniPorts may be connected together so that all are controlled by a single switch closure, and may be linked so that all turn on simultaneously or one by one, in a delayed sequence. If delayed, the delay interval between the turn-on of one MiniPort and the next is approximately 3 seconds. Delayed turn-on is useful in avoiding large inrush currents that can trip house circuit breakers, that would otherwise occur if all amps were turned on simultaneously. Please note that turn-off is simultaneous, however.
A Furman PowerLink or ASD-120 Sequenced Power Distro can also be used to control MiniPort(s), expanding their current-handling capacity with an additional 15, 20, or 30 amp circuit per MiniPort. In this use, the MiniPort(s) are connected to the control terminals on the PowerPort or ASD-120, which provide the necessary switching function.
With the addition of a PS-REL AC Relay to provide switching, a MiniPort can be used to extend the capacity of a Furman PS-8R or PS-PRO Power Sequencer -- or, for that matter, any product with a switched outlet, such as a receiver/amp controlled with a wireless remote. When used in this manner, the MiniPort is switched on or off when the outlet that the PS-REL is plugged into goes on or off.
All models include an internal 12 VDC supply, and are housed in rugged steel enclosures. The MP-15 and MP-20 come equipped with heavy duty, 10 foot AC cord and are UL and C/UL listed.
Note: Because of its 20 amp UL and C/UL rating, the MiniPort-20 uses a real 20 amp plug. This is a special AC plug. It will NOT plug into a 15A receptacle, so please plan for this to avoid delays in getting your project up and running.

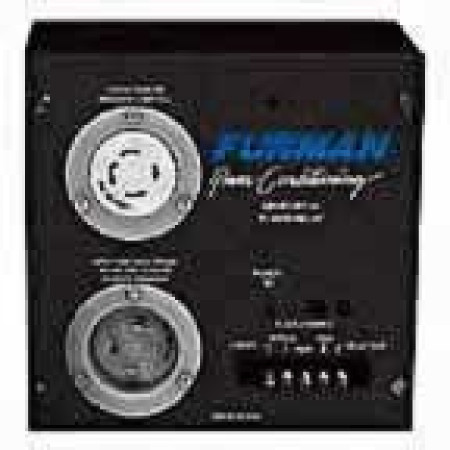

The MP-30 is the long-awaited 30 amp version of the MP-15 and MP-20. It contains a NEMA L14-30 twistlock inlet and a matching 30A contactor-switched 120 VAC outlet, with a terminal strip that allows remote control via safe, inexpensive, low voltage Class 2 wiring. The unit is housed in a heavy duty steel, 8" x 8" x 4" junction box, with multiple knockouts in various locations for direct connection to conduit.
