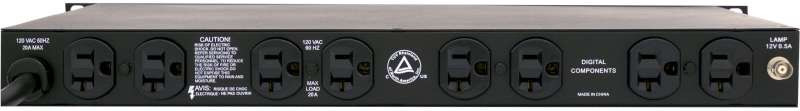

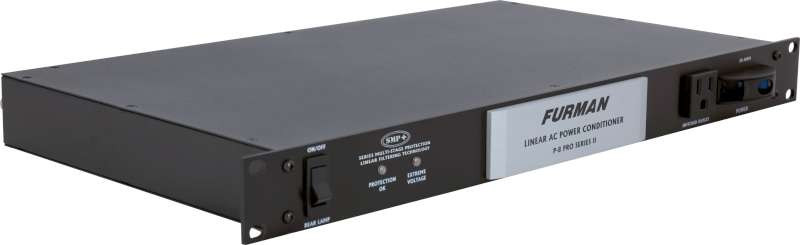

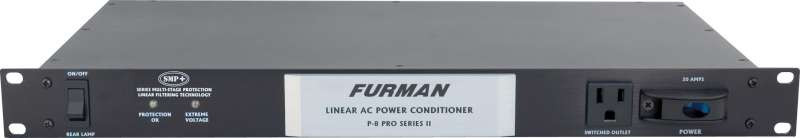

The P-8 PRO II power conditioner featuring Furman's revolutionary SMP technology.
Furman's Series Multi-Stage Protection (SMP) circuit features our exclusive Linear Filter Technology (LiFT) and Extreme Voltage Shutdown (EVS) and a high current TVZ-MOV. Together; these technologies comprise what is, without question, the world's most advanced and comprehensive transient voltage surge suppressor. SMP (Series Multi-Stage Protection Plus)Furman's SMP surge suppression virtually eliminates service calls. Traditional surge suppression circuits sacrifice themselves when exposed to multiple transient voltage spikes, requiring the dismantling of your system, and repair of your surge suppressor. Not so with SMP. With Furman's SMP, damaging transient voltages are safely absorbed, clamped and dissipated - no sacrificed parts, no service calls, no down time. Unique to Furman's SMP is its unparalleled clamping voltage, even when tested beyond the grueling specifications of - USA/CIDA's A-1-1 test. While other designs offer clamping voltages that are well above 300VAC peak (far beyond long accepted professional standards), Furman's SMP clamps at 188VAC peak, 133 VAC RMS even when tested with multiple 6000VAC - 3000 Amp surges! This unprecedented level of protection is only available with Furman's SMP technology. LiFT (Linear Filtering Technology)Unfortunately, traditional AC filter/conditioners have been designed for unrealistic laboratory conditions. Prior technologies could actually harm audio and video performance more than they help, due to the resonant peaking of their antiquated, non-linear designs. Under certain conditions, these designs can actually add more than 10 dB of noise to the incoming AC line! Worse still, lost digital data, the need to reboot digital presets, or destroyed digital converters are frequently caused by excessive voltage spikes and AC noise contaminating the equipment ground. Furman's SMP with LiFT takes another approach, ensuring optimal performance through linear filtering and no leakage to ground. E.V.S. (Extreme Voltage Shutdown)Furman's trusted overvoltage circuitry protects against all too frequent accidental connections to 208 or 240VAC by shutting off the incoming power until the overvoltage condition is corrected. Rear Panel BNC ConnectorFor rear panel illumination, a BNC connector is provided for connection of any standard gooseneck lamp, such as the Furman GN-LED or GN-I (sold separately). FEATURES:• SMP provides the highest level of protection available • LiFT significantly reduces AC line noise • E.V.S. protects equipment from dangerous overvoltage conditions • Zero ground contamination circuitry assures delivery of pure AC • BNC connector on the rear panel allows connection of any standard gooseneck lamp • Eight rear panel outlets and one front panel outlet • 20 amp rating, with high inrush capable magnetic circuit breaker • Front panel master power switch protected by hinged panel to prevent accidental power off • 10 foot, 12 gauge heavy-duty power cable • Three year limited warranty SPECIFICATIONS:• Current rating: 20 amps • Operating Voltage: 90 to 140 VAC • Over Voltage Shutdown: 140 VAC typically • Spike Protection Modes: Line to neutral, zero ground leakage • Spike Clamping Voltage 188 VAC peak @ 3,000 Amps, 133 VAC RMS(tested to UL-1449 and USA / CIDA A-1-1, 6,000 VAC @ 3,000 Amps) • Response time: 1 nanosecond • Maximum surge current: 6,500 amps • Noise attenuation: 10 dB @ 10 kHz, 40 dB @ 100 kHz, 100 dB @ 10 MHz• Linear attenuation curve from 0.05 - 100 Ohms line impedance • Dimensions: 1.75" H x 19" W x 10.5" D. • Weight: 11 lbs. (5 kg.) • Construction: Steel chassis, .125" brushed and black anodized aluminum front panel; glass epoxy printed circuit boards • Power consumption: 6 watts • Safety Agency Listings: CE, NRTL-C
|Product Condition||New - On Clearance|
