Galaxy Audio AS1000 Wireless Personal Monitor System

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

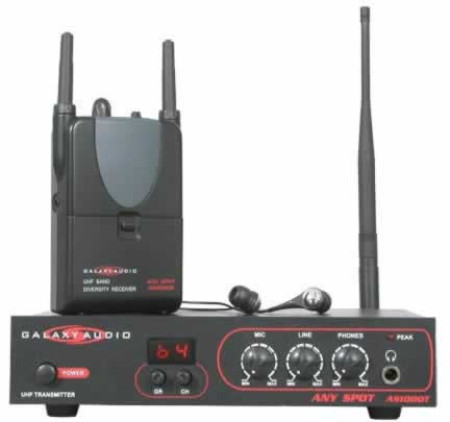

galaxy audio as1000
The ANY SPOT (AS-1000) is the new wireless in ear monitor from Galaxy Audio. Galaxy Audio has been manufacturing the HOT SPOT personal monitor for 30 years. The ANY SPOT is the latest monitor from the 'Monitor Guys'. Wireless personal monitors are effective at eliminating stage noise, protecting users ears from damage, allowing the user to move around a stage or audience and continue to hear, and eliminate feedback. The ANY SPOT is easy to use. The ANY SPOT replaces floor wedges and the amplifiers that power them. Simply plug the ANY SPOT into a 'monitor out' jack on a mixing console, create the desired mix, and it's ready to deliver quality sound. The ANY SPOT has 64 selectable UHF frequencies to help locate the best and clearest one to transmit signal. The transmitter (AS-1000T) is selectable to either mono or stereo.The ANY SPOT AS-1000 features a diversity receiver. Our diversity receiver (AS-1000R) has two antennas. Each antenna seeks the signal from the transmitter individually. This means fewer dropouts than a non-diversity system. In the rare event of a dropout, our 'Auto-Mute' feature kicks in. Auto-Mute prevents intermittent static from going into the users ears.The ANY SPOT is also a great assistive listening system. The AS-1000T will transmit to numerous receivers. Simply patch the program signal to the transmitter and give each parishioner or attendee a receiver so all can hear clearly.The ANY SPOT transmitter has RCA, XLR, & " inputs on the back. The ANY SPOT allows simultaneous broadcast of audio signals from a source such as a CD player, tape player, computer, IPod, etc, and a microphone while offering individual level adjustment for each of the two sources. This works great for presentations or a solo performer who wants to monitor a microphone and backing track. The ANY SPOT is a great alternative for performers who are tired of lugging around heavy and bulky floor monitors and tired of leaving a gig with ringing ears. The ANY SPOT allows the user to move freely around the stage or audience and continue to hear the monitor mix. The ANY SPOT package is also lighter in weight than floor monitors, which makes it easier to transport from location to location.The ANY SPOT is cost competitive and feature packed and is a great buy for any church or band. One year warranty

SPECIFICATIONS AS1000R (RECEIVER) Carrier Frequency Range UHF band 682698 MHz. 64 CH Oscillator PLL synthesized Modulation FM Receiving Mode Single channel. Diversity Frequency Stability 0.005% S/N ratio >94dB, at 15KHz deviation and 60dBuV antenna input Power Supply DC 3V (2 x 1.5V AA batteries or rechargeable batteries) Image and Spurious Rejection 80 dB minimum Receiving Sensitivity At 5 dBV over 80 dB S/N ratio Selectivity >50dB AF Response Headphone: 100Hz to 10KHz (3dB) Line: 100Hz to 10KHz (3dB) T.H.D. <1% (at 1KHz) IF Frequency 1st 56MHz; 2nd 10.7MHz Dynamic Range >96dB Audio Output Headphone stereo output: 20mW, Line stereo output level: -10dB Current Consumption 130mA 10mA Case Bodypack Dimension W x H x D 3" x 4.2" x 1.2" (76 x 106 x 29mm) AS1000 (TRANSMITTER) Frequency Range UHF 682698MHz Frequency Stability 0.005% Maximum Deviation 48KHz with limiting compressor Power Supply DC 12 18V Spurious Emission >60dB below carrier frequency RF Power Output 100mW T.H.D. <1% (at 1KHz) Tone Key 32.768KHz Current Consumption 140mA 10mA (100mV) Dimension W x H x D 3" x 4.2" x 1.2" (76 x 106 x 29mm)

Additional Information

ManufacturerGalaxy Audio
Product ConditionNew - On Clearance
