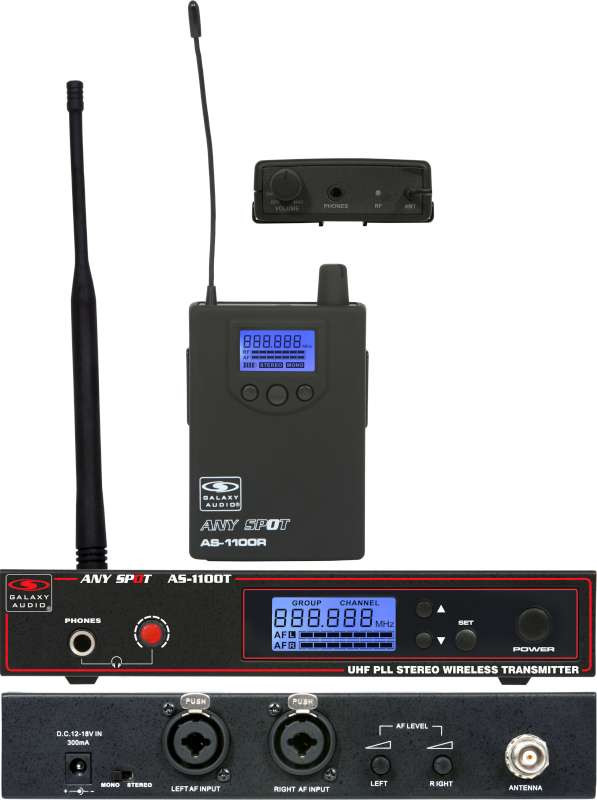

The AS-1100 packs an amazing punch. The transmitter has stereo XLR/" inputs, headphone output, and LCD display which displays the channel and input level. The Receiver has an LCD with channel, battery level, and RF/AF indicator. The AS-1100 is perfect for anyone looking for their first system or to upgrade to the next level.
SYSTEM FEATURES:• Single Rack Mount Included
• 300' Range
• UHF Frequency
• 120 Selectable Channels
• Ear Buds

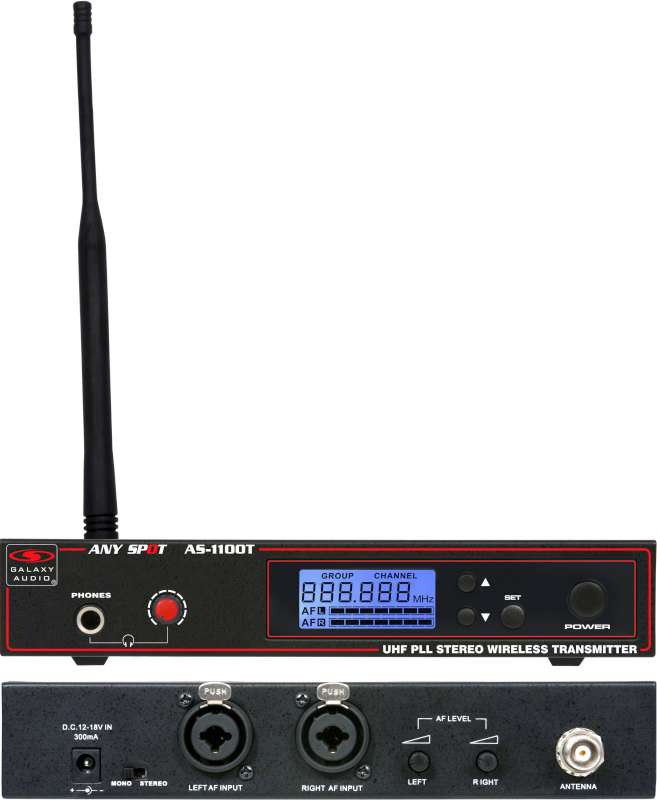

AS-1100T Features• Transmits in Stereo or Mono
• Light Up LCD Display
• Channel Number and Frequency
• 120 Selectable Channels
• XLR/" Combo Input
• AF L/R Indicator
• RF Output
• 10 mW

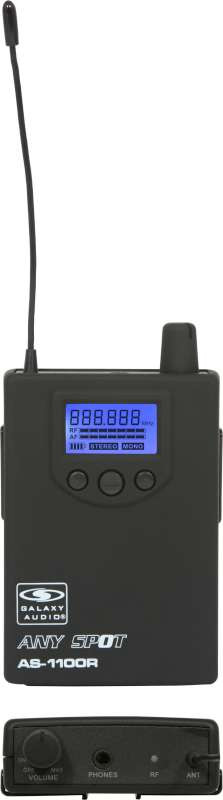

AS-1100R Receiver Features• LCD Display with Backlight
• Headphone Output Volume Control
• 4 Bar Battery Life Indicator
• RF and AF Indicator
• 100 mW Headphone Output
• 2 AA Batteries
• Ear Buds Included
• 3.5 oz (100 g)

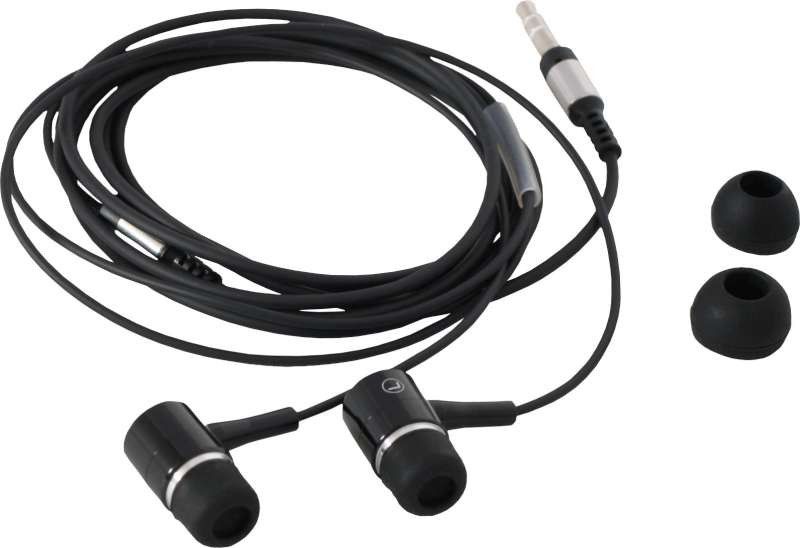

EB3 Ear Buds FeaturesThe EB3 Ear Buds come standard with Galaxy Audio Wireless Personal Monitors. With every Wireless Monitor Receiver you purchase you will receive a set of EB3 Earbuds, unless you upgrade to the EB6 or EB10 Earbuds. The EB3 includes three pairs of Silicon sleeves (small, medium, and large) for the right fit. The EB3 Ear Buds have a standard 3.5mm stereo jack, allowing them to be used with any brand of Wireless Personal Monitor or MP3 Player.
SPECIFICATIONS Frequency Range and Transmitter Output LevelBand: UHF
Frequency Range: 655 MHZ and 679 MHZ
Transmitter Output Level: 10dBm
Operating Range: Under Typical Conditions 300' (92m)
Note: actual range depends on RF signal absorption, reflection, interference, and battery characteristics
Audio Frequency Response: +/-3dB 60Hz16KHz
Total Harmonic Distortion: +/-30KHz deviation 1KHz tone <1%
Dynamic Range: >90dB A-weighted
Operating Temperature: Range 14F to 122F (-10 C to +50 C)
AS-1100T TransmitterMax Audio input level: +6dBV
Gain Adjustment Range: 40dB
Input Impedance: 100k?
Dimensions: 1.5" x 8.3" x 3.78" (38mm H x 212mm W x 96mm D)
Weight: 21oz. (605 g)
Power Requirements: 12-18 V dc at 300mA supplied by external power supply
XLR input: Impedance balanced
Pin1: Ground (cable shield)
Pin 2: Audio
Pin 3: No Audio
AS-1100R Bodypack ReceiverAudio Output Level: 100mW
Sensitivity: -94dBm for 30dB
Image Rejection: >55dB
Dimensions: 3.74" x 2.6" x 1" (95mm H x 65mm W x 25mm D)
Weight: 3.5oz (100 g) without batteries
Power Requirements: 2 (AA)size alkaline or rechargeable batteries
Battery Life: About 5 hours
