Galaxy Audio PA5XD Powered HOTSPOT Portable PA System

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

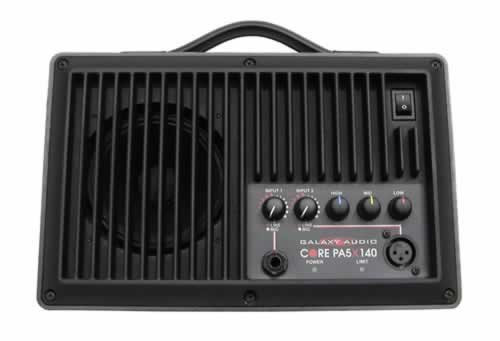

galaxy audio pa5xd
ULTRA HIGH POWER ONE-PIECE PA SYSTEM/POWERED MONITOR. POUND FOR POUND THE WORLD'S MOST POWERFUL SOUND SYSTEM! The Powered Hot Spot Monitor is a product like no other. The Powered Hot Spot delivers an ear shattering 100 watts of power! The Powered Hot Spot, like the original Hot Spot, delivers high power, in a small, portable, lightweight design, about the size of a shoe box. The Powered Hot Spot contains one of Galaxy Audio's NEOLITE Neodymium driver. Inside the Powered Hot Spot is a power amp that can deliver 100 watts continuously @ 8 ohms, 150 watts @ 4 ohms. The Class H power supply configuration utilizes four output transistors, a low voltage pair and a high voltage pair. Its low voltage transistors are active with any signal. When demand on the amp exceeds the low voltage transistors' capabilities, the high voltage transistors kick in and provide additional power. The result is an amplifier that runs cooler, weighs less, is smaller and more efficient. The Powered Hot Spot contains two inputs, a " and an XLR, each with its own volume control. Both inputs feature the ability to accept microphone or line level input, which maximizes the signal-to-noise ratio of virtually any input source. Best of all, you don't have to flip a switch to distinguish between microphone or line level, the Powered Hot Spot automatically adjusts itself with our SmartALIC circuitry. Also, the Powered Hot Spot features a 3-band equalizer to allow you to adjust the equalization for optimum sound. As well as the built-in compressor/limiter circuitry controls the amplifier gain, acting like a compressor on transient signal and a "brick wall" limiter on signals that continuously exceed a predetermined limit. This results in an apparent 6 dB increase in SPL without distortion. That's twice the sound pressure! The Powered Hot Spot produces a maximum SPL of 114dB. That's more sound pressure level than most sound systems twice it size! The Powered Hot Spot is constructed of a black fire-retardant styrene with a black cast aluminum faceplate/grille, which is attractive and act as a heat dissipation device. With the Powered Hot Spot containing the lightweight NEOLITE Neodymium driver and a 150 watt power amplifier, it is truly "POUND FOR POUND THE WORLD'S MOST POWERFULL SOUND SYSTEM"!

SPECIFICATIONSAMPLIFIER SECTION: Rated Power: 146 watts @ 4 ohms, 100 watts @ 8 ohms Equalization: Three band center detent Lo: 10 dB peak/dip at 300 HzMid: 10 dB peak/dip at 2 kHzHi: 12 dB shelving at 15 kHz Frequency response: 200 Hz-20 kHz Signal-to-Noise Ratio: >95 dB Total Harmonic Distortion: <0.05% @ 4 ohms, <0.1% @ 8 ohms Minimum Recommended Load Impedance: 4 ohms Input Sensitivity for 8 ohm power: 1 VRMS IHF Damping Factor: >380 Input connections: (each with individual volume control): One" balanced One XLR balanced, with +24 VDC phantom power Output connections: One -inch speaker level for minimum 8 ohm load. One (post-EQ, post-level) RCA line out Indicator LEDs: POWER, COMPRESSOR-LIMITER Power Requirements; Domestic: 120 VAC 60Hz Export: 230VAC 50Hz Safeguards: Short circuit current limiting. Short circuit foldback limiting. Thermal short circuit protection. Dynamic load line cooling. Turn on/turn off transient suppression SPEAKER SECTION: Speaker: One Galaxy Audio S5N-8 ferro fluid cooled 5" NEOLITE Neodymium driver. Nominal impedance: 8 ohms Power handling capacity: 100 watts @ 8 ohms Sensitivity (I Watt @ 1 meter): 92 dB (1 kHz octave band) Frequency response: 150 Hz-18 kHz Maximum SPL @ clip (100 Watts @ 1 meter): 114 dB SPLOWT: 10.7 Enclosure Materials: Fire retardant styrene Color: Black case with black cast aluminum grille Dimensions: 6.75" x 10.94" x 6" (171 mm x 278 mm x 152 mm) Net weight: 10.7 lbs. (4.9 kg) Shipping weight: 11.7 lbs. (5.3 kg)

Additional Information

UPCN/A
SKUPA5XD
ManufacturerGalaxy Audio
Product ConditionNew - On Clearance
ReturnableNo
