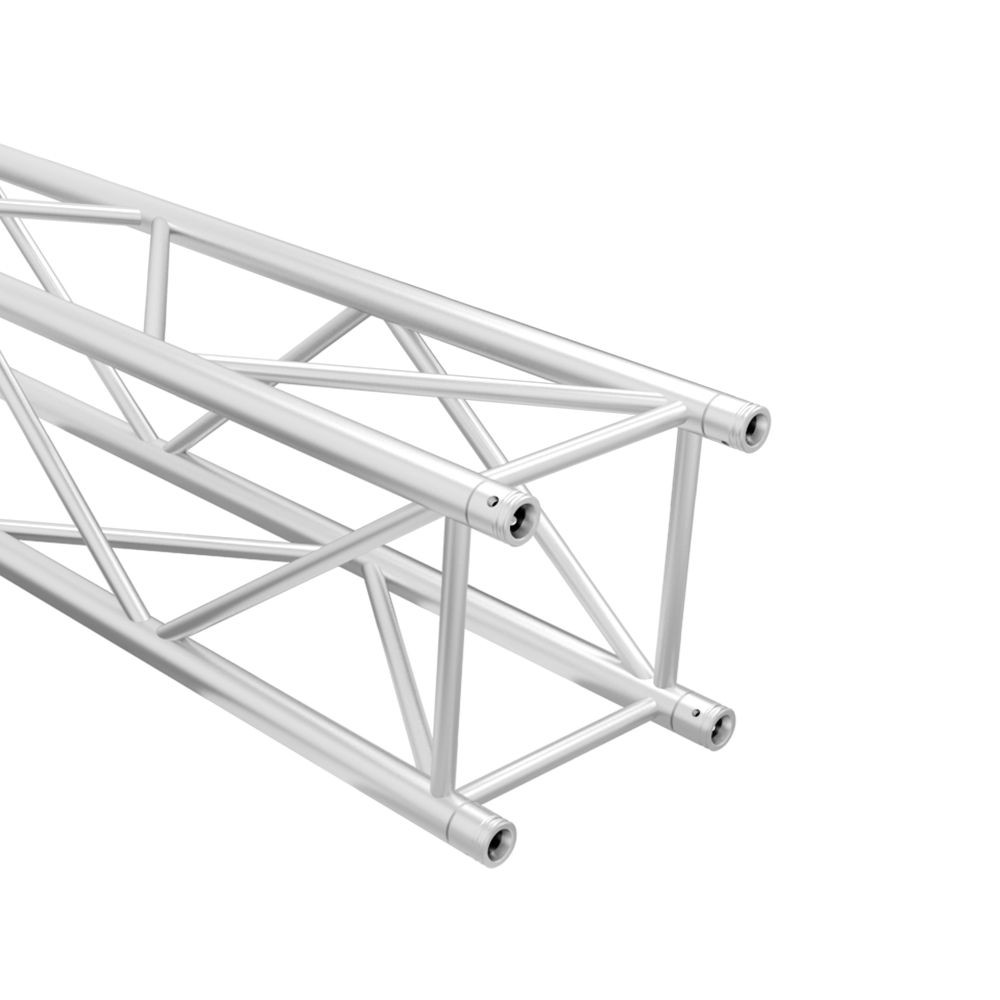

The Global Truss DT-4170P is a straight square truss segment that is 16.40ft. (5.0m) in length. DT44P Square Truss is manufactured out of 50mm tubing, 25mm bracing and 3mm wall thickness. It is the go-to option for heavy-duty high-load applications.
EXTERNAL DIMENSION: 400mm
TUBES: 50x3mm
BRACES: 20x3mm
MATERIAL: EN-AW 6082 T6
LENGTH: 16.40ft (5m)
UNIT WEIGHT: 97lbs/44.04kg
• Connecting hardware is included with each truss.
