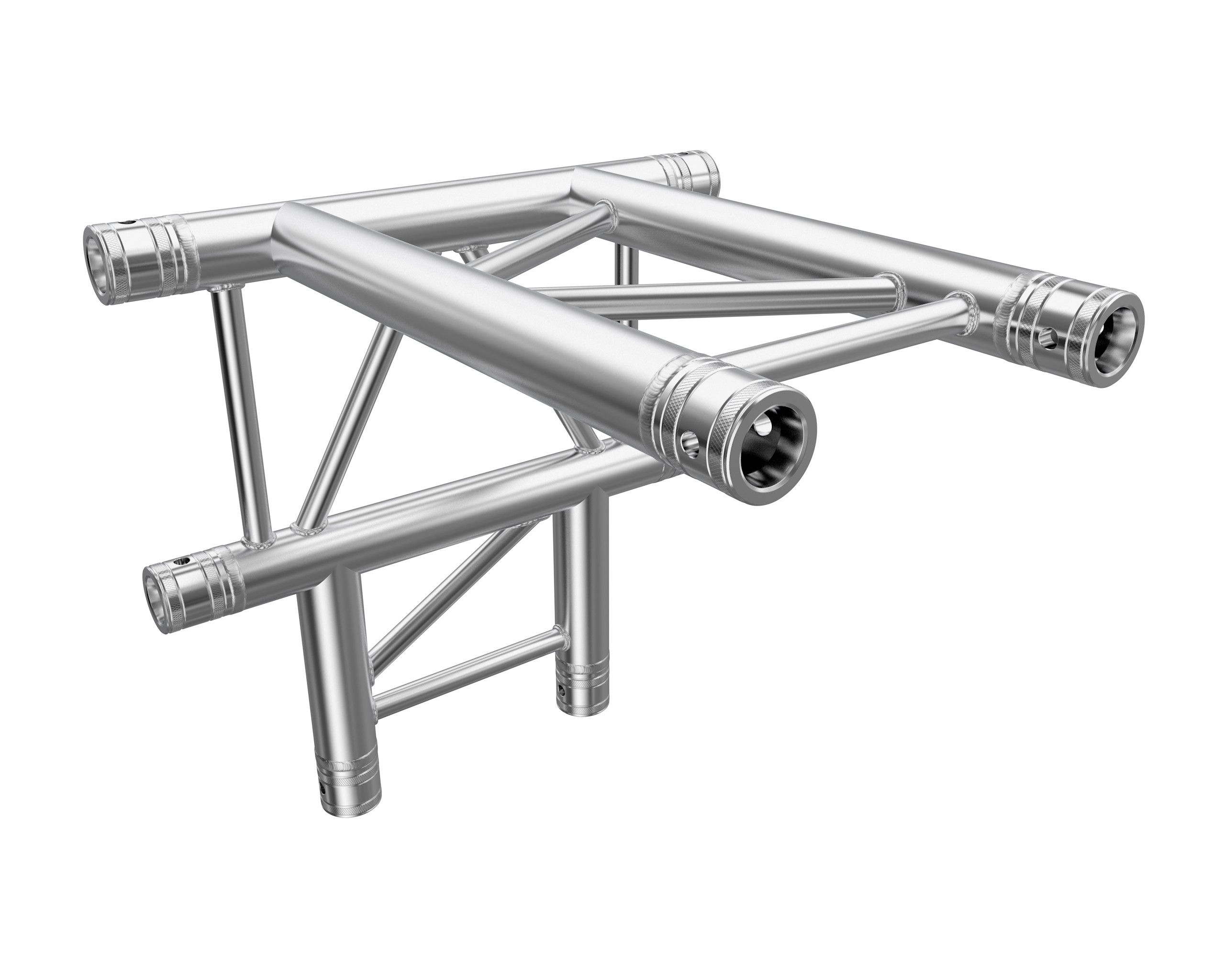

1.64ft (0.5m) 4-Way Horizontal F32 I-BEAM T-Junction. The F32 truss series by Global Truss is a TV approved 2-point system with an external dimension of 29cm. Grid constructions for exhibition stands or permanent installations are possible with this system. Short outrigs or cross ways with little loads can also be created. As a grid a maximum span of up to 10 meters can be used. Fabricated by certified TUV welders. Equipped with connecting hardware.
11 7/16" (290mm) OVERALL WIDTH
2" (50mm) OUTER DIAMETER TUBING
3/4" (20mm) DIAGONAL BRACING
0.008" (2mm) WALL TICKNESS
1 SET OF CONNECTING HARDWARE INCLUDED
UNIT WEIGHT 14lbs.
