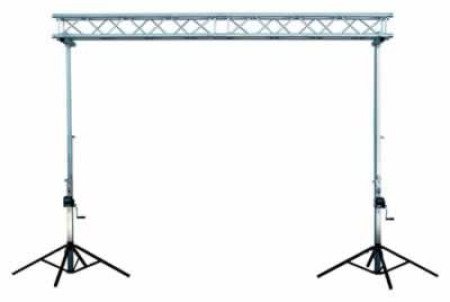

Global Truss SQ-CP1 Square Truss / Crank Package

Dropships Ships Directly From The Supplier
Global Truss can usually ship this item directly to our U.S. customers after 1 to 3 business days processing time, depending upon their stock levels. Order now! We'll notify you promptly if we hear of any delay.
No Free Shipping Shipping Charges Apply
While most of our items ship for free, this item does not qualify due to size or weight
$1,299.95
Affirm Financing
Future Pay
X
    • BONUS! Buy Now and Earn 2599 PDJ Bucks ($25.99)! MUST Be Logged In! Domestic U.S. customers only. Exact value may vary once logged in.
High quality aluminum and steel designed for lives stages, theaters, night clubs, church installations and mobile applications.

PACKAGE INCLUDES:
• (2) ST-334 Medium Duty Quad-Pod Crank Stands
• (2) SQ-4112 - 6.56' (2m) Segment
• (2) STSB-135 - 35mm Diameter Support Bar/Truss Adaptor for ST-334
• Approximate Span 13 ft / max ht 10 ft 7 in.
• Additional Segments May be Added for larger Spans

ST-334:
• MAX. HEIGHT 107" (3.2m)
• MAX. VERTICAL LOAD 275lbs. (125 Kgs)
• MIN. VERTICAL LOAD: 55 LBS. (25 KGS)
• MIN. USEABLE HEIGHT: 43' FOLDED DIMENSIONS: 4.2' HEIGHT/BASE 5.9 IN. (150MM)
• BASE FULLD EXTENDED: 5'2" )1.5M),
• OPTIONAL T-BAR AVAILABLE-
• INSERTION DIA 1.38" (35MM)

SQ-4112:
• 11 7/16" (290mm) OVERALL WIDTH
• 2" (50mm) OUTER DIAMETER TUBING
• 3/4" (20mm) DIAGONAL BRACING
• 0.008" (2mm) WALL TICKNESS
• 1 SET OF CONNECTING HARDWARE INCLUDED

STSB-135:
• 35mm DIAMETER SUPPORT BAR/TRUSS ADAPTOR FOR ST-334

Additional Information

UPCN/A
SKUSQ-CP1
ManufacturerGlobal Truss
Product ConditionNew
