High quality aluminum and steel, designed for live stages, theaters, and night clubs.

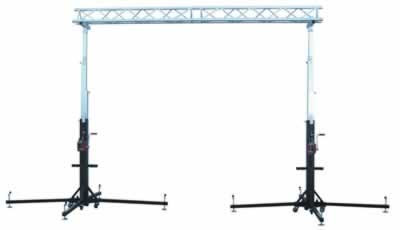

PACKAGE INCLUDES:• (2) ST-254R - Extra Heavy Duty Tower Lifters (TUV Approved)
• (2) SQ-4112 - 6.56ft (2m) Segment
• (2) STSB-155 - 55mm Diameter Support Bar/ Truss Adaptor for ST-254R
• Approximate Span 13ft / max ht. 17 ft. 4 in.
• Additional Segments Recommended to Fully
Utilize
ST-254R:• MAX HEIGHT 174" (5.3m)
• MAX VERTICAL LOAD 550lbs. (250 kgs)
• MIN VERTICAL LOAD : 55 LBS (25KGS)
• FOLDED DIMENSIONS: 5.75' (1.75M)/BASE 1.5' (0.46M)
• BASE FULLY EXTENDED: 8'4" (2.5M)
• OPTIONAL T-BAR AVAILABLE
• INSERTION DIAMETER 2.16" (55mm)
SQ-4112:• 11 7/16" (290mm) OVERALL WIDTH
• 2" (50mm) OUTER DIAMETER TUBING
• 3/4" (20mm) DIAGONAL BRACING
• 0.008" (2mm) WALL TICKNESS
• 1 SET OF CONNECTING HARDWARE INCLUDED
STSB-155:• 55mm Diameter Support Bar/Truss Adaptor for ST-254R
