Compact design and powerful 3100W output are complemented by the efficient and variable output, this machine is designed for versatility, efficiency, and reliability. The Highpower2 reaches operation in less than 8 minutes. It can be controlled via DMX512, RDM, Modbus RTU or JT remote, or built-in onboard timer. Wired and wireless controllers are also available.
Base Classic water-based fluid is designed for any environment. From a quick dissipation to a dense fog that will hang in the air. The unit can run continuously at 20%.
• Control via DMX512, RDM, MODBUS RTU, JT Remote, XLR Wired Remote, Wireless remote or a variable stand-alone built-in timer or DMX operation.
• German made, internal pumps are fitted with shock absorption.
• The Highpower2 is either an efficient 3100-WATT 230V/50-60HZ. Full operation is achievable in less than 8 minutes.
• Efficient fluid consumption ranges from 300 ML/MIN at maximum output to 70 ML/MIN with continuous fog.
• Four choices of pharmaceutical grade, water-based fluid designed specifically for Hazebase.
• Control accessories are available for complete versatility for multiple applications.
Power: 230V, 50-60 Hz, 3100 W (PowerCON TRUE1)
Heating time: Approx. 8 min
Fluid consumption: Up to 300 ml/min (full power mode, wide jet nozzle); Up to 70 ml/min with continuous fog
Tank Capacity: 5 Liter or 1.32 Gallons

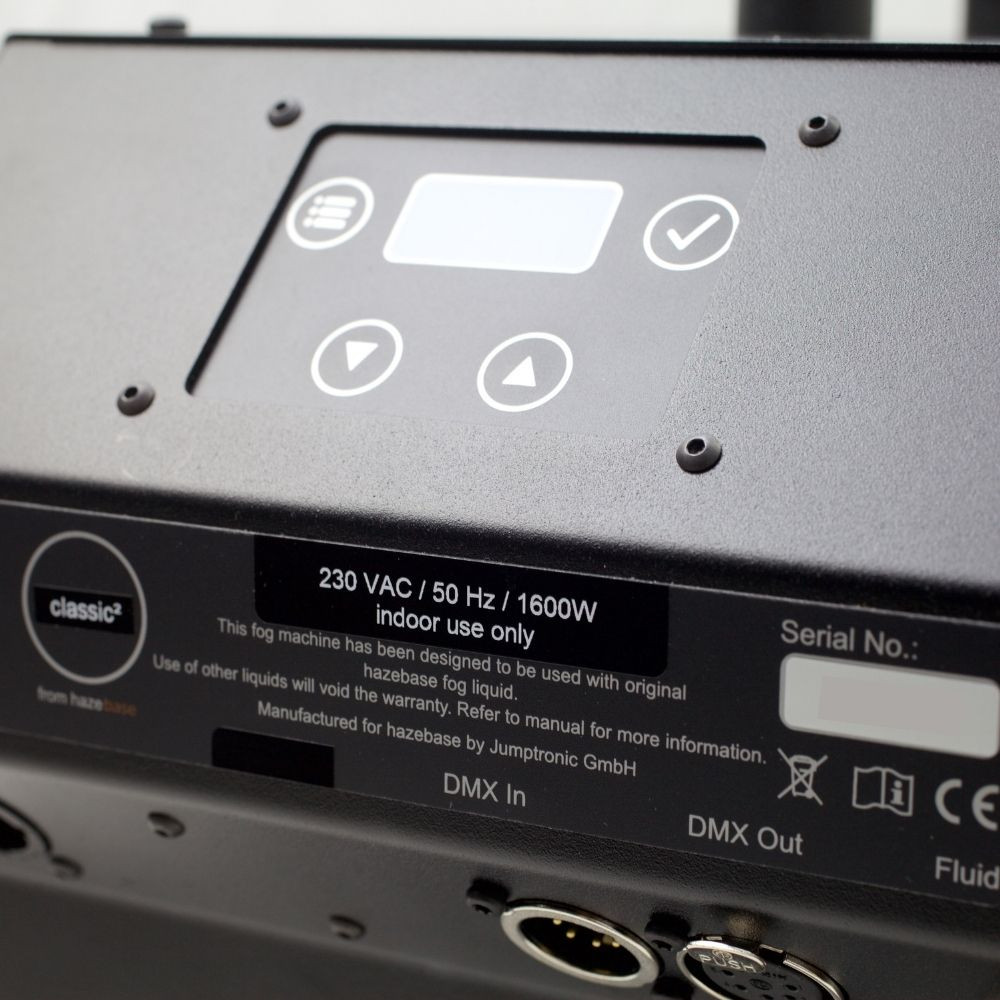

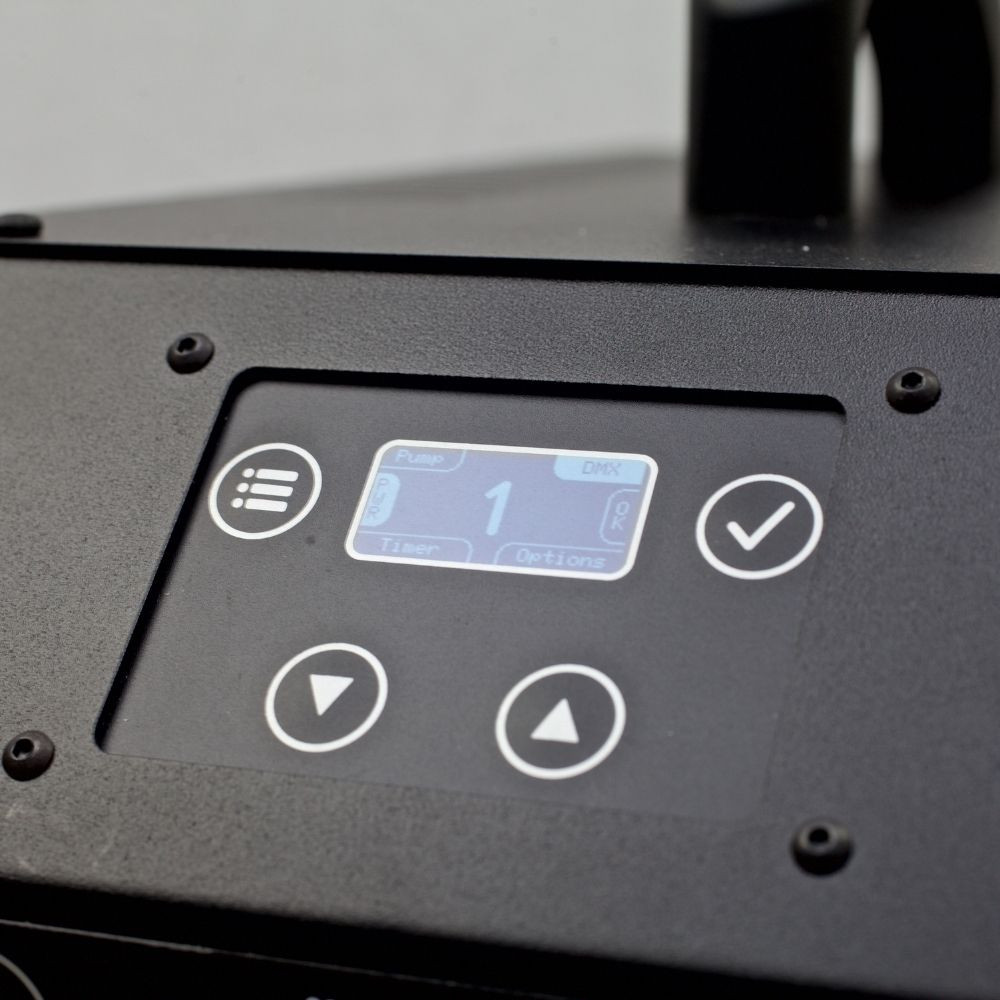

Unit Operation: 1.3 "OLED display, membrane keyboard
Interfaces: 5-pin XLR In / Out
Fog nozzles (exchangeable): Wide-jet nozzle, Noise reduction nozzle
Fog output: Adjustable 1-100% in 1% steps
CFM (Cubic Feet per Minute): 70,000 CFM
Output distance: Up to 20 m at Wide beam nozzle; Up to 15 m with noise reduction nozzle
Supported protocols: DMX512, RDM, Modbus RTU, JT remote
Control: DMX / RDM, cable remote control, radio remote control, integrated timer, stand alone
Accessories (optional): Radio remote control, cable remote control
Fog time: Up to 20 sec. In full power mode; Up to 50 seconds. In full-time mode; Permanent fog in non-stop
Fluid types: Base * X (extremely long-lasting); Base * L (long-lasting); Base * M (normal lasting); Base * Q (quick disserpating)
Dimensions (LxWxH): 480 x 212 x 240 mm (Height with tank holder 388 mm) or 18.9 x 8.3 x 9.4 inches (height with tank holder 15.3 inches)
Weight: 14.0 kg or 30.8 lbs
Ambient temperature: + 5 C to 45 C
