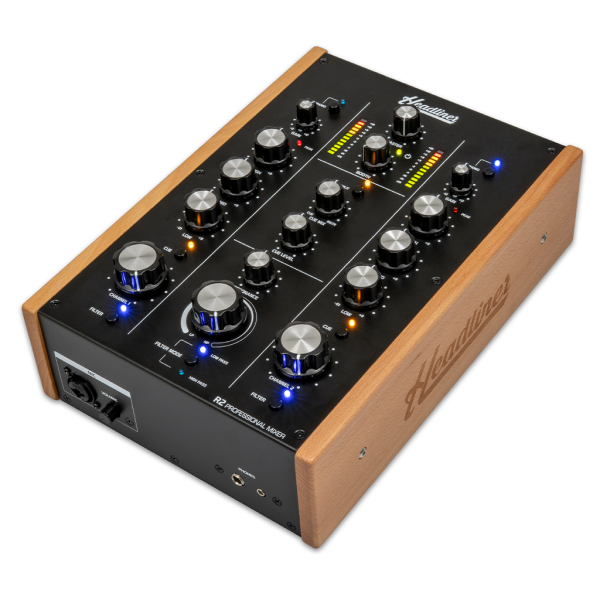

Featuring two stereo channels with selectable Line and Phono RCA inputs, each channel on the Headliner R2 comes equipped with gain control with a peak LED, a 3-band isolator EQ, a headphone cue selector, a large channel volume control knob, and a filter activation switch.
The Master channel boasts an analog filter, headphone monitoring, and output control section. The analog filter features selectable High Pass / Low Pass Filter modes with Frequency and Resonance controls, giving you precise control over your sound. The headphone Cue control section is packed with features, including headphones volume control, headphones mix control (Cue/Master), and split monitor switch. You can easily switch between listening to the master output and the cue output, or blend them together in your headphones, giving you complete control over your mix. The high current headphone amplifier with, dual 1/4" and 1/8" jacks, allows you to use any type of headphones you prefer. You also have independent Master and Booth outputs with volume controls, both with balanced XLR and unbalanced RCA connectors, giving you the flexibility to connect to any sound system.
It features an additional Record output with unbalanced RCA jacks and dual LED level meters for the Master output, ensuring that you can accurately monitor and adjust your levels. The microphone input with level control on the front panel makes it easy to incorporate vocals into your set.
The Headliner R2 features genuine ALPS potentiometers, and a sturdy metal enclosure with stained wood side panels for a classic look that will complement any DJ setup. The modular internal construction, coupled with the external power supply connected via locking Mini XLR ensure superior audio performance.
The Headliner R2 is a reliable, high-quality mixer that will give your DJ performances that classic vibe. Whether you're spinning house, techno, or classic funk/soul/disco jams, this fun little mixer is the perfect addition to your setup.
Features• Two stereo channels with selectable Line and Phono RCA inputs.
• Each channel features Gain control with Peak LED, 3-Band Isolator EQ, Headphones Cue selector with LED, channel volume control and filter activation switch with LED.
• Master channel features analog filter, headphone monitoring and output control section.
• Analog filter features selectable High Pass / Low Pass Filter modes with Frequency and Resonance controls
• Genuine ALPS potentiometers.
• Headphone Cue control section features headphones volume control, headphones mix control (Cue/Master), and split monitor switch.
• High current headphone amplifier with dual 1/4" and 1/8" jacks.
• Independent Master and Booth outputs with volume controls, balanced XLR outputs and unbalanced RCA outputs.
• Additional Record output with unbalanced RCA jacks.
• Dual LED level meters for the Master output.
• Microphone input with level control on front panel.
• Sturdy metal enclosure with stained wood side panels for a classic look
• Made for classic house or techno DJ's, or any DJ who loves to spin classic funk, soul, or disco.
• Modular internal construction for superior audio performance.
• External split rail power supply connected via locking Mini XLR connector.
• Push-button power switch on rear panel.
• Measurements: 12.6" x 8.6" x 4.2" (320 x 219 x 106 mm)
• Weight: 6.15lbs (2.8Kg)
SpecificationsMicrophone Input
Nominal Input Level: -50dBu
Frequency Response: 20Hz 20kHz (+/- 0.1dB)
THD + N: < 0.1%
EIN: -120dBu (150O Load)
Input Impedance: 3 kOhm
Line Inputs
Nominal Input Level: -10dBV (-7.8dBu)
Gain Range: -12dB to +12dB
Frequency Response: 20Hz 20kHz (+/- 0.1dB)
THD + N: < 0.05%
Input Impedance: 47 kOhm
Phono Inputs
Maximum Input Level: -40dBu
Gain Range: -12dB to +12dB
Frequency Response: RIAA
THD + N: < 0.05%
Input Impedance: 47 kOhm
Main Outputs
Nominal Output Levels, balanced: +4dBu
Maximum Output Level, balanced: +20dBu
Nominal Output Levels, unbalanced: -10dBV (-7.8dBu)
Maximum Output Level, unbalanced: +12dBu
Frequency Response: 20Hz-20kHz (+/-0.5dB)
Residual noise: <-80dBu
Dynamic Range: > 100dB
Crosstalk: < -65dB
THD + N: < 0.05%
Headphone Output
Maximum Output Level: 70mA/channel into 150O
Minimum Load Impedance: 32 Ohms/channel
Power Supply
Type: External with locking mini-XLR connector
Input Voltage: 100-240v 50/60Hz
Output Voltage: +/-15V; 500mA
Voltage Range: 32 Ohms/channel
