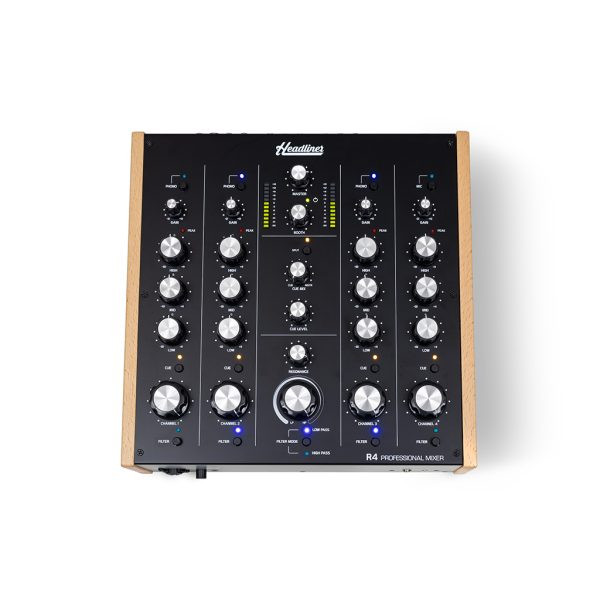

Crafted with four Line inputs, three phono inputs, and one mic input on four stereo channels. Each channel boasts essential features like gain control with peak LED, a 3-band isolator EQ, headphone cue selector, generous channel volume knob, and a filter activation switch, granting DJs precise control over their sound.
At the heart of the R4 lies the Master channel, equipped with an analog filter, headphone monitoring, and a comprehensive output control section. Seamlessly toggle between High Pass / Low Pass Filter modes with Frequency and Resonance controls to shape your signature sound.
Empowering DJs with absolute control, the headphone Cue control section offers headphone volume control, headphones mix control (Cue/Master), and a split monitor switch for smooth transitions between outputs.

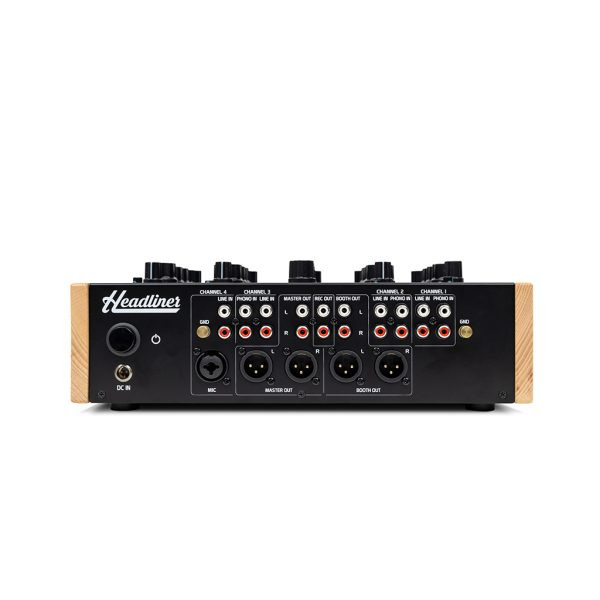

Featuring independent Master and Booth outputs, both equipped with volume controls and balanced XLR and unbalanced RCA connectors, the R4 ensures seamless connectivity across various sound systems. Dual LED level meters for the Master output facilitate precise monitoring and adjustment of audio levels. Additionally, the mixer boasts a dedicated Record output with unbalanced RCA jacks, and an additional microphone input with level control located on the front panel.

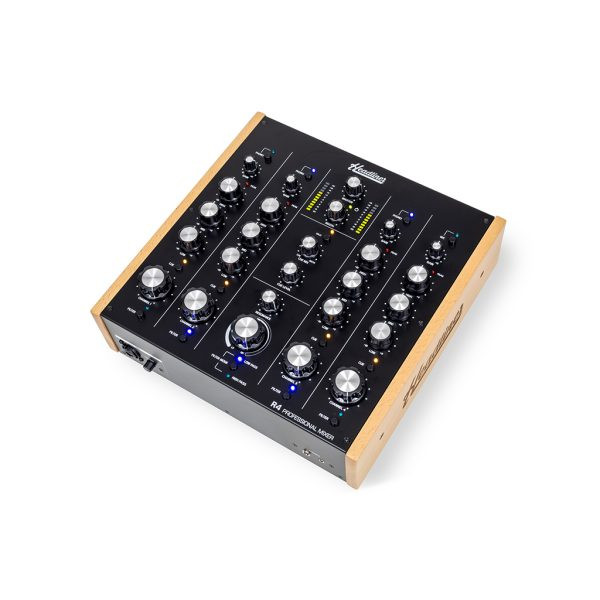

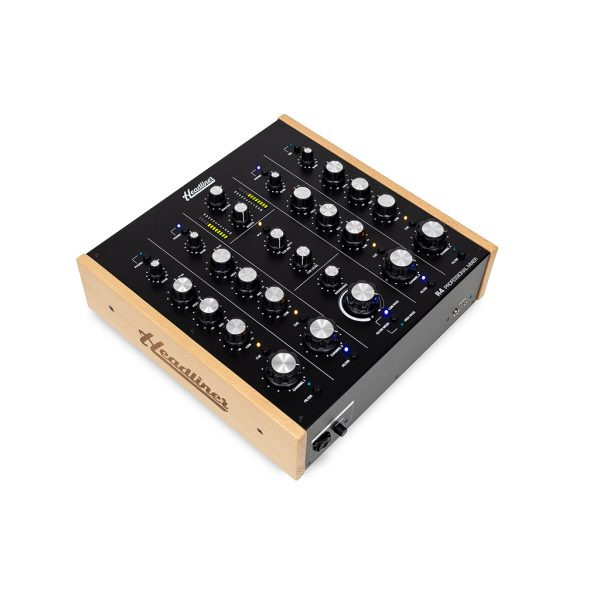

Sporting genuine ALPS potentiometers, a robust metal enclosure, and stained wood side panels, the R4 exudes a classic aesthetic that complements any DJ setup. Its modular internal construction and an external power supply connected via a locking Mini XLR guarantee superior audio performance.

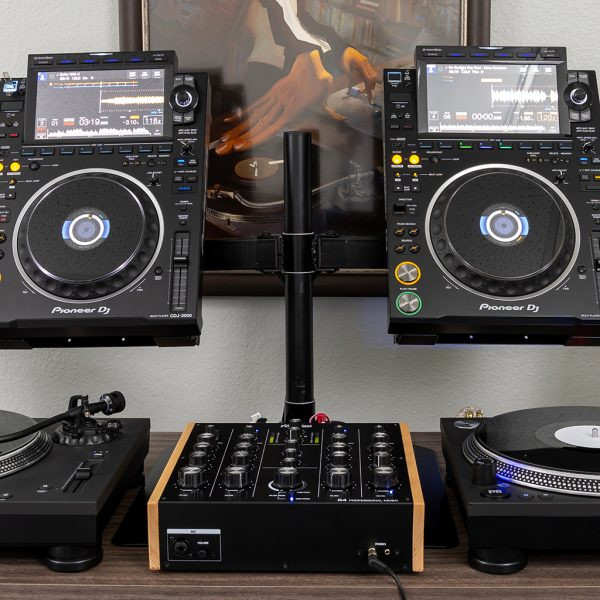

The Headliner R4 stands as a testament to precision and warmth in the DJ realm. Whether spinning house, techno, or the timeless funk/soul/disco beats, this versatile mixer elevates your setup, ensuring your mixes stand out with exceptional quality and control.
Features• Three stereo channels with selectable Line and Phono RCA inputs and one channel with selectable stereo line and mono microphone.
• Each channel features Gain control with Peak LED, 3-Band Isolator EQ, Headphones Cue selector with LED, channel volume control and filter activation switch with LED.
• Master channel features analog filter, headphone monitoring and output control section.
• Analog filter features selectable High Pass / Low Pass Filter modes with Frequency and Resonance controls.
• Genuine ALPS potentiometers.
• Headphone Cue control section features headphones volume control, headphones mix control (Cue/Master), and split monitor switch.
• High current headphone amplifier with dual 1/4" and 1/8" jacks.
• Independent Master and Booth outputs with volume controls, balanced XLR outputs and unbalanced RCA outputs.
• Additional Record output with unbalanced RCA jacks.
• Dual LED level meters for the Master output.

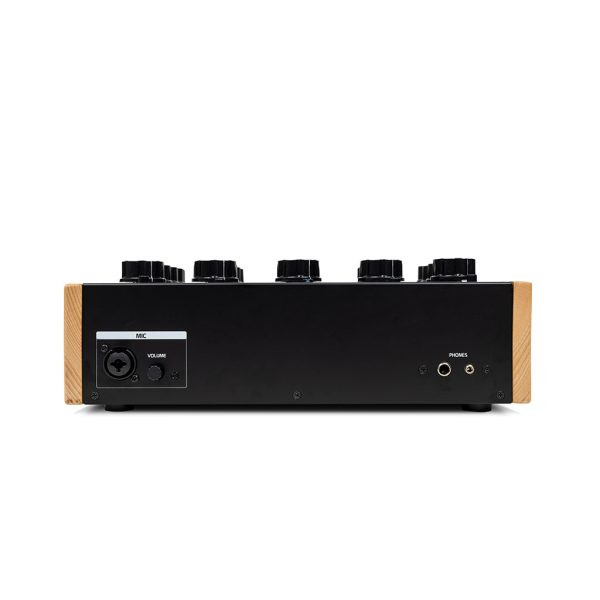

• Microphone input with level control on front panel.
• Sturdy metal enclosure with stained wood side panels for a classic look
• Modular internal construction for superior audio performance.
• External split rail power supply connected via locking Mini XLR connector.
• Push-button power switch on rear panel.
SpecificationsMicrophone Input
Nominal Input Level: -50dBu
Frequency Response: 20Hz 20kHz (+/- 0.1dB)
THD + N: < 0.1%
EIN: -120dBu (150O Load)
Input Impedance: 3 kOhm
Line Inputs
Nominal Input Level: -10dBV (-7.8dBu)
Gain Range: -12dB to +12dB
Frequency Response: 20Hz 20kHz (+/- 0.1dB)
THD + N: < 0.05%
Input Impedance: 47 kOhm
Phono Inputs
Maximum Input Level: -40dBu
Gain Range: -12dB to +12dB
Frequency Response: RIAA
THD + N: < 0.05%
Input Impedance: 47 kOhm
Main Outputs
Nominal Output Levels, balanced: +4dBu
Maximum Output Level, balanced: +20dBu
Nominal Output Levels, unbalanced: -10dBV (-7.8dBu)
Maximum Output Level, unbalanced: +12dBu
Frequency Response: 20Hz-20kHz (+/-0.5dB)
Residual noise: <-80dBu Dynamic Range: > 100dB
Crosstalk: < -65dB
THD + N: < 0.05%
Headphone Output
Maximum Output Level: 70mA/channel into 150O
Minimum Load Impedance: 32 Ohms/channel
Power Supply
Type: External with locking mini-XLR connector
Input Voltage: 100-240v 50/60Hz
Output Voltage: +/-15V; 500mA
Voltage Range: 32 Ohms/channel
Measurements (WxDxH):
12.2" x 12" x 3.35" (310 x 304 x 85 mm) (body only)
12.2" x 12.6" x 4.2" (310 x 315 x 106 mm) (knobs and connectors)
Weight: 7.7lbs (3.5Kg)
