Small wonder that they are flabbergasted: The ultra compact subwoofer and the two fist-sized satellites astonish with an audio experience to rival that of far larger rigs.

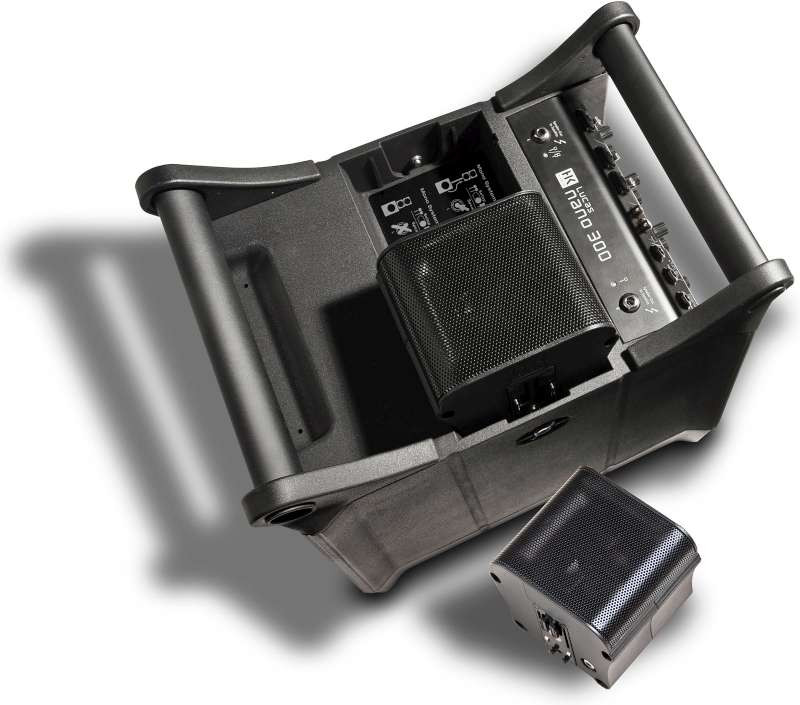

Unbelievable SizeNo bigger than a beverage crate, this mighty mite tips the scales at just 10 kg. Thanks to its very comfortable grips, the system is a dream to carry. Just like that, the two satellites simply click-fit into a transport bay in the subwoofer's housing. Made of post space age material, they weigh just 1 kg each.
Unbelievable PowerIt took all of HK Audio's considerable R&D capabilities to come up with LUCAS Nano 300. In 36 months of painstaking efforts, our engineers screened nearly all legacy audio and acoustical technologies, put each through a battery of rigorous tests, and boiled the best down to fit the absurdly small format of Nano 300. And the performance that this petit package delivers is nothing short of amazing - 44 to 20 kHz frequency response, 230 watts, and up to 120 dB SPL.
The result: Probably the world's smallest, lightest, and pound-for-pound loudest PA!
LUCAS NANO 300 Satellite3.5' High-Performance Broadband Speakers190 Hz - 20 kHz, +2 dB
HF Diffraction LensUniform HF dispersion pattern (60 x 40)
Constant Directivity Horn +4 dB higher SPL and even midrange dispersion
Compression Chamber+1 dB SPL
Helmholtz ResonatorBoosts low mids by +6 dB
LUCAS NANO 300 Subwoofer
8" High-Performance Bass WooferClass-D-System Power amp1 x 160 W for the subwoofer, 2 x 35 W or 1 x 70 W for satellites
Subfire-Reflex-PortFor sub-bass down to 44 Hz
Aluminum Plate (5mm)Serves to cool and brace the cabinet
Anti-Resonant Polyamide HousingTransport Bay for SatellitesWith a locking mechanism
Large Metal Carrying HandlesFor easy, comfortable portability
Triple-Channel Mixing ConsoleWith ports for microphones, instruments, line signals, MP3 / CD player, etc.
Unbelievable OptionsMore than merely an ultra portable sound reinforcement solution, LUCAS Nano 300 is an ingeniously engineered, phenomenally versatile rig for a host of applications.
You may be an acoustic guitarist who needs reliable backup for small pub gigs. A keyboardist who needs a handy monitor. A DJ who needs a sound system for parties. Or you may simply need a near-field PA for fair events, conferences, presentations, or sales promotions. But whatever it is you need, know this: LUCAS Nano 300 always delivers clear, assertive sound and handles with ease that defies belief. And if you need a little more rig and a lot more volume, simply connect two Nano 300s. All it takes is one cord and few seconds of your time.
The mixing console built into the sub takes the notion of flexibility to unprecedented heights. With three channels onboard, handling Nano 300 is an exercise in convenience. Ports are available for all the usual audio sources, from smart-phones, notebooks and CD/ MP3 players to dynamic microphones and instrument signals. You'll need no other outboard gear - and that's what makes LUCAS Nano 300 a bona fide all-in-one solution for so many applications!
The subwoofer stands as a testament to our engineers' epic development effort, the aim of which was to achieve unrivalled ease of use. Its specially designed enclosure not only houses all the system's electronics including Class-D power amps, it also features a nifty click-fit transport bay that accommodates the two satellites.
Another ingenious design twist is the monaural power boosting option: Simply link the two satellites via Easy-Click connectors to create one even more powerful mono satellite with greater range.

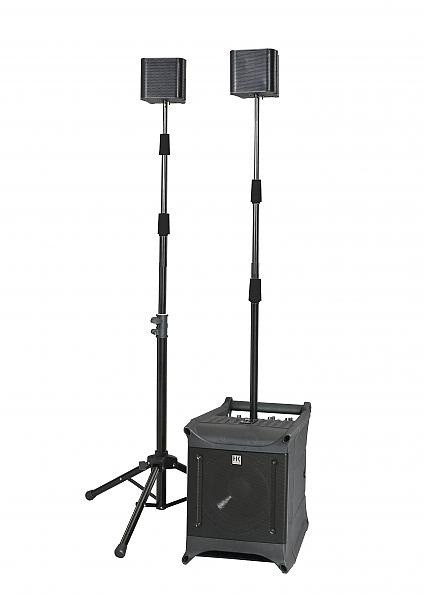

And there's a lot more to get excited about: You can do what's best for the given application and go for the classic setup option, mounting them on a tripod or speaker pole, or locking them in place right on the sub. With the optional Add On Package No. 2's combination tabletop tripods/ wall-mounts, you can even set the satellites on your desk or affix them to walls.
The 3/8" threaded insert integrated into the housing readily adapts to all kinds of accessories, so you can attach the satellites to mic stands, trusses, e-drum racks, and so forth. Wherever you go and whatever you wish to do, LUCAS Nano 300 goes there with you and leaves a spectacularly small footprint when it gets there.
Satellite Double Specifications:Mid/high unit dispersion pattern, horizontal/vertical: 60 x 40
Max SPL peak: 120 dB
Output power system: 70 W @ 4 Ohm
Frequency response: 190 Hz - 20 kHz
Maximum SPL, @ 10% THD: 116 dB
Dimensions (WxHxD): 13 x 26 x 11,5 cm
Weight: 2 kg
Subwoofer SpecificationsMax SPL peak: 118 dB
Output power system: 160 W @ 2 Ohm
Frequency response: 44 Hz - fx
Maximum SPL, @ 10% THD: 116 dB
Dimensions (WxHxD): 30 x 39 x 42 cm
Weight: 8,3 kg
Satellite Single SpecificationsMid/high unit dispersion pattern, horizontal/vertical: 60 x 40
Max SPL peak: 116 dB
Output power system: 35 W @ 8 Ohm
Frequency response: 190 Hz - 20 kHz
Maximum SPL, @ 10% THD: 112 dB
Dimensions (WxHxD): 13 x 13 x 11,5 cm
Weight: 1 kg
Optional Accessories:•

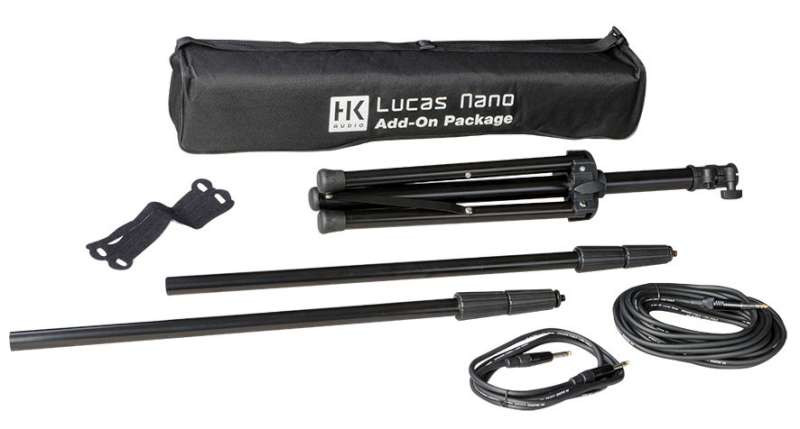

Add-On Package One: This tripod set consists of two mounting poles, a tripod and two speaker cables. Travel bag and two Velcro cable ties are also included.
•
Add-On Package Two: These two dual-purpose tabletop tripods/wall mounts let you set mid/high units on a horizontal surface and mount them on walls. Two speaker cords are included.
•
Roller Bag: The handy roller bag carts your LUCAS Nano 300 to its destination in style. The integrated covers protect it against moisture, dirt and damage.
