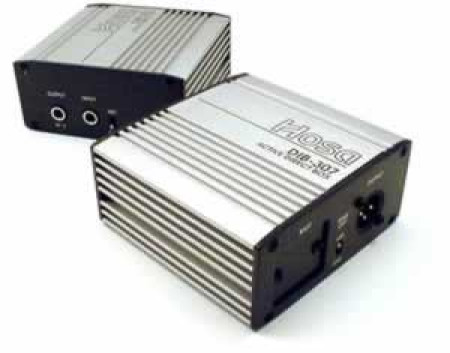

Hosa's DIB-307 active direct box allows you to send your low-level guitar or bass signals directly to the mixing console via either hi-Z or low-Z cabling.
Hosa's DIB-307 active direct box allows you to send your low-level guitar or bass signals directly to the mixing console via either hi-Z or low-Z cabling. A special Amp In feature allows the unit to accept AMPLIFIED signal from a guitar or bass amp's speaker output. Using this feature, you can send not just the sound of your instrument, but also the sound of your amplifier, including any desirable overdrive or distortion set at the amp. The DIB-307 is powered by a 9-volt battery (included), and automatically switches noiselessly to phantom powering from the mixing console when that voltage is present. A ground-lift switch aids in canceling hum and buzz caused by audio system ground loops. The chassis features a rugged, die cast aluminum design. This device features a no-compromise engineering design for world-class performance!
FEATURES:* No-compromise electronics for world-class performance.
* Boost guitar and bass signals up to Line Level for direct-to- mixer connections via either Low-Z or Hi-Z inputs.
* "Amp-In" feature allows your amplifier's speaker output to feed the console. Now your amplified sound can go directly into the console without time-consuming microphone selection and placement.
* Die-cast aluminum chassis for incredible strength.
* Ground-Lift Switch breaks "ground-loops", reducing 60-cycle hum.
* Powered by a 9-volt battery (included).
SPECIFICATIONS:* Input Impedance: Instrument-5 Meg ohms, Speaker-10 K ohms
* Output Impedance:100 ohms
* Output Load Impedance: 250 ohms or higher
* Gain: Instrument- -22dbs, Speaker- -46dbs
* Maximum Output Level: +5dbs
* Frequency Response: 20Hz to 50kHz +/-0.5db
* Distortion: 0.05% at 1KHz, -10db
* Residual Noise: -110db or less
* Power requirement: +48V phantom power: 1.9mA, +9V 006P Battery: 1.5mA
* Output ground lift switch
* Instrument/Speaker Input Select: 34db Pad
* Balanced Output: XLR male
* Unbalanced Output: 1/4" Phone Jack
* Input: 1/4" Balanced Phone Jack
* Dimensions: 4-1/4"(w) x 2" (H) x 4"(D).
