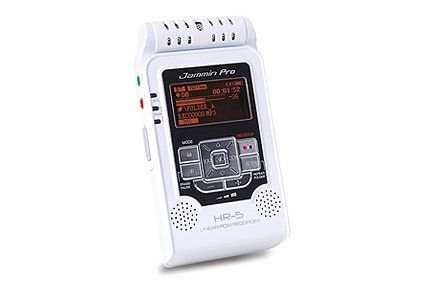

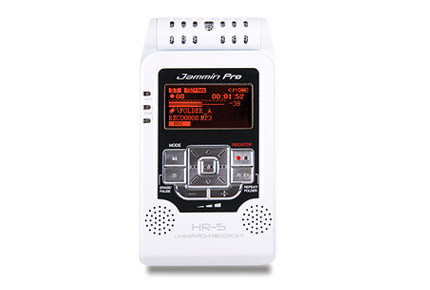

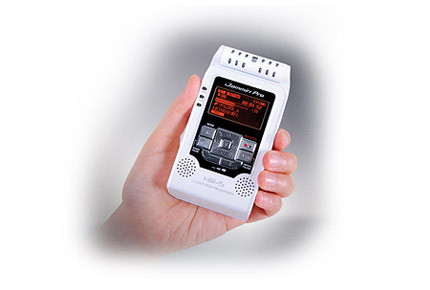

You can record at superclean 24-bit resolution with a wider dynamic range(up to 96kHz sampling rate) with HR-5, providing twice the digital audio definition of ordinary CD's.
A new high grade stereo condenser microphone and stereo speaker optimized for monitor are built into HR-5, complete with auto gain control, level meters, peak indicator and VOX (voice activated recording). Just point and record your takes!
FEATURES:• Built-In 2GBytes memory (Ready for more than 35 Hours stereo recording/music playback)
• Expandable SDHC memory up to 32GBytes, (SD card not included)

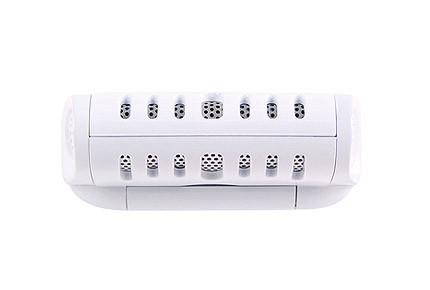

• Built-In 2 x dia. 9mm high sensitivity condenser microphone
• 2 x 16mm Full ranger speakers built in
• Large 1.9" LCD display with backlight
• High speed USB2.0 for Mac and PC mass storage/card reader operation
• 12 Hours lifetime on 2 x AA batteries (included) or external adaptor (not included)
• 3.5mm Stereo headphones output

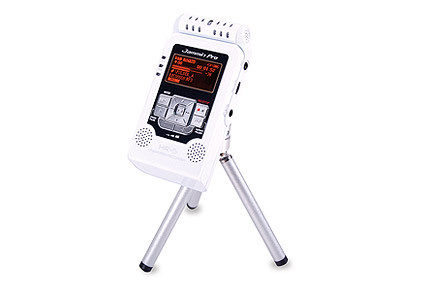

• Tripod Mount for easy installation on stand (Tripod Stand included)
• High sensitivity stereo condenser microphones built in
• Selectable Mono/Stereo microphone recording
• Recording into 16/22.05/24/32/44.1/48kHz, 32-192 kbps MP3 or 16/24-bit WAV
• Adjustable recording level with peak LED indicators
• Adjustable voice activated (VOX) recording
• Inputs for connecting 1/8" mic and line-level audio
• ID3 music information display and song management
• Support 16/22.05/24/32/44.1/48kHz, 32-320 kbps MP3 or 16/24-bit WAV
• 7 preset Equalizers setting for music playback
• 7 x 3D ambience effects for music playback
• 4 x PlayMode (Repeat One/Repeat All/Playlist Order/Intro Play)
SPECIFICATIONS:• Recording File: Linear PCM (Pulsed Code Modulation) in WAV format, MP3 (MPEG-1/MPEG-2 Audio Layer3)
• Memory: Build in 2GB NAND Flash Memory. Support SD(16MB2GB) and SDHC (2GB 32GB) memory card
• Display: 35mm x 20mm with 128dot x 64dot
• Display backlight: Amber colour
• Recording Format:
PCM (WAV): Quantization 16 / 24bit. Sampling Frequency 16 / 22.05 / 24 / 32 / 44.1 / 48 / 96kHz
MP3: Bit Rate 32, 64, 96, 128, 192 kbps
Channel: Stereo / Mono
Maximum File Size: 2GB approx.
Build-in Microphone: 2 x dia. 9 mm high sensitivity full range Microphone Build-in Speaker : 2 x 16mm full range speaker
Microphone Sensitivity selection: Rotary control
Delay recording: 5 / 10 / 30 /60 seconds
VOX: Yes
Output power: 2 x 100mW @ 16 ohm
Microphone Jack: 3.5mm Stereo Mini jack, impedance 2K ohms, input level -7dBv -70dBv
Line-In Jack: 3.5mm Stereo Mini jack, impedance 20K ohms, input level maximum +6dBvl
Earphone Jack: 3.5mm Stereo Mini jack, 2 x 10mW @ impedance 32 ohms,
USB: Mini-B Type (USB2.0 Full Speed Compatible)
Power Source: 2 x AA (LR6) Alkaline Battery,AC adaptor: 5V
Battery Life (Alkaline battery): 9 Hours for recording and 10 Hours for playback,
Unit size: 112 mm x 21 mm x 60mm,
Weight: 76g (without battery),
Accessories: USB cable / Line out cable / earbuds / Tripod Stand / Batteries / Manual/ Quick Start Guide
