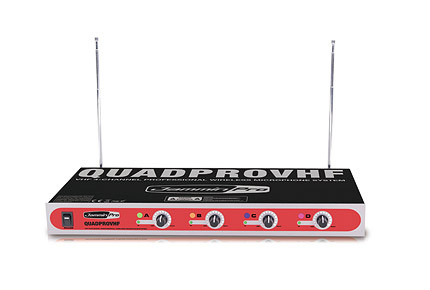

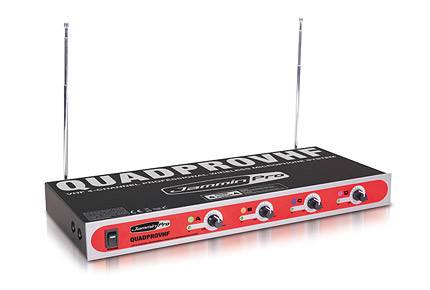

4-Channel Professional Wireless Microphone System

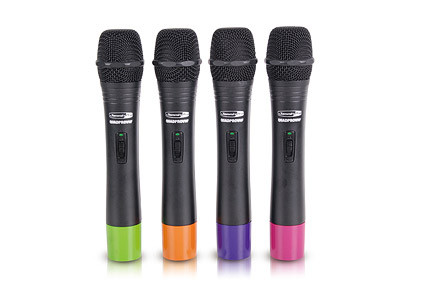

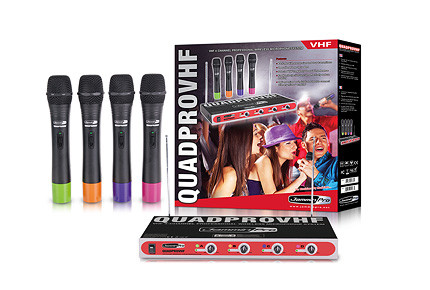

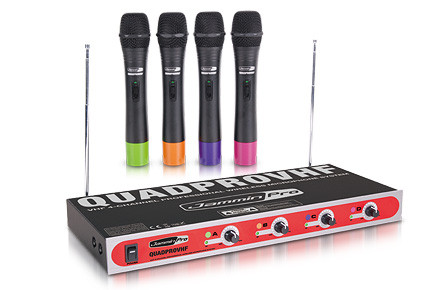

FEATURES:• Package with one receiver and four transmitters
• Operation Range up to 80m
• Selected VHF frequency to avoid interference
• Feedback rejection function effectively reduce howling
• Optional mixed or individual output to connect with any mixer / amplifier
SPECIFICATIONS:• Squelch Control: Noise-lock
• Frequency Deviation: +/- 18kHz
• Frequency Response: 80Hz-15kHz
• Frequency Stability: +/- 0.005%
• S/N Ratio:>70dB
• Total Harmonic Distortion: <0.5 % (at 1kHz)
• Number of Channels: 4 Channels
• Receiving Sensitivity: -80dBm
• Operating Range: 50m in open area
• False Image Interference Rate: =80dB
• Harmonic Interference Rate: =50dB
• Transmit Power: <10mW
• Receiver Power Supply: DC 12V/500mA
• Transmitter Power Supply: 9V battery
• Color for Frequencies:
Orange: 188.6MHz
Violet: 204.8MHz
Red: 181.25MHz
Green: 209.5MHz
• Accessories:
AC Adaptor
9V Batteries
User Manual
