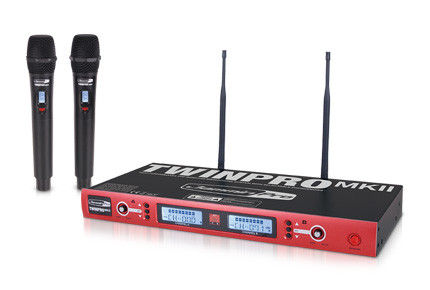

Dual Channel UHF wireless microphone system designed for various professional applications. Digital PLL circuit guarantees a reliable sound synthesis and more than 71 optional frequency settings provide the freedom to setup multiple systems at one venue.
FEATURES:• Microphone synchronization via infrared date transmission
• Adjustable transmitter power
• Key lock function on receiver and transmitter avoids mis-operation
• Squelch function ensures optimal performance tailored to the demands of the application
• LCD displays on receiver and transmitters enable an intuitive handling of the system
SPECIFICATIONS:• Frequency Range: 530MHz-548MHz
• Frequency Control: PLL
• Frequency Precision: +/- 5ppm<10kHz
• Frequency Steadiness: +/- 0.005%
• Number of Frequencies: 71
• Modulation Mode: FM
• Number of Channels: 2 Channels
• Frequency Spacing: 250KHz
• Frequency Response: 80Hz-18KHz(-3dB)
• Max. Frequency Deviation: +/- 45KHz
• S/N Ratio: >105dB
• Receiving Sensitivity: 12dBuV(80dBS/N)
• Total Harmonic Distortion: <0.5%(at 1kHz)
• Dynamic Range: >100dB
• Harmonic Interference Rate: =50dB
• False Image Interference Rate: =60dB
• Transmit Power: 10mW at high power, 3mW at low power
• Supply: 2pcs 1.5V AA batteries
• Playtime: 10hrs(depending on batteries)
• Operating Range: 50m(depending on environment)
• Operating Temperature: -20 -60

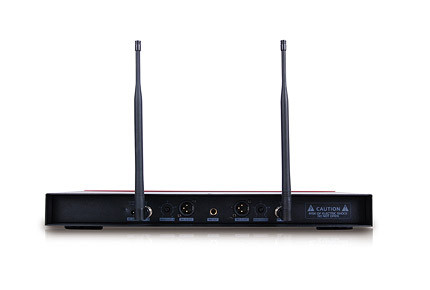

• Output Type: Independent Balanced and Unbalanced Outputs
• Accessories:
AC Adaptor
AA Batteries
Rack ear x 2
Detachable Antenna x 2
User Manual
